This 18.5-inch LCD module with wide temperature, anti-glare and shock resistance.
Key features
· Built with industrial-grade components for reliable 24/7 operation
· LED backlight, low power consumption
·Anti-glare, shock-resistant, anti-interference, single-channel LVDS
· Long backlight service life
· Lightweight, slim and compact overall design
Typical applications
·Industrial control display module
·Testing and measuring instrument
·Power control terminal
| Specification | |
| Screen Size | 18.5" |
| Active Display Area(mm) | 409.8(H) x 230.4(V) |
| Pixel Pitch(mm) | 0.3(H)x0.3(V) |
| Display Mode | Normally white |
| Display Resolution(pixel) | 1366x768 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M |
| Brightness | 250nits |
| Backlight | CCFL/LED |
| Viewing Angles(CR=10) | 170(H)X160(V) |
| Response Time(Typ.Tr+Tf) | 5ms |

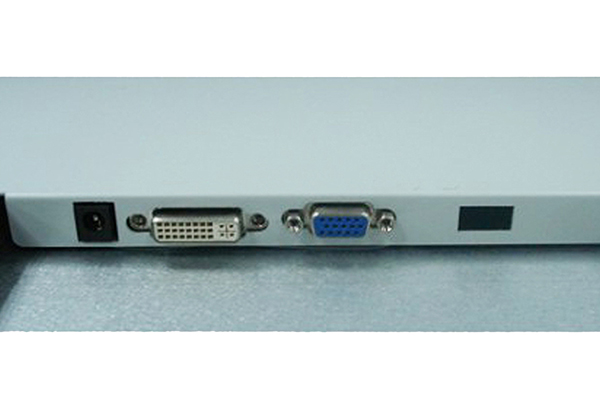

| Signal Connector | VGA/DVI |
| Power Input | DC 12V |
| Operating Temperature | 0～50℃ |
| Storage Temperature | -20～60℃ |
| Relative Humidity | 5(%RH)～90(%RH) |
