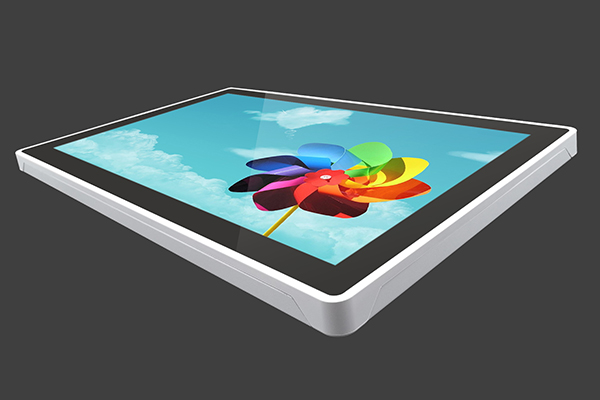

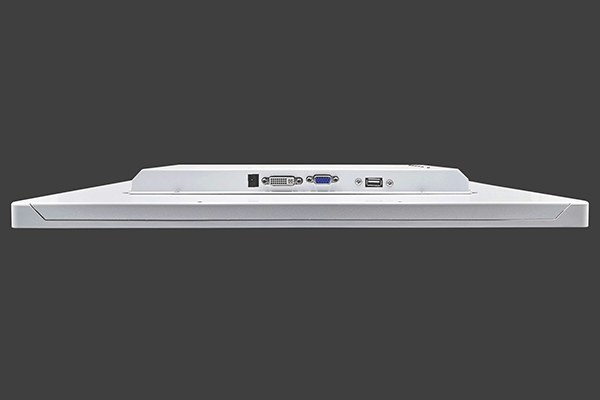

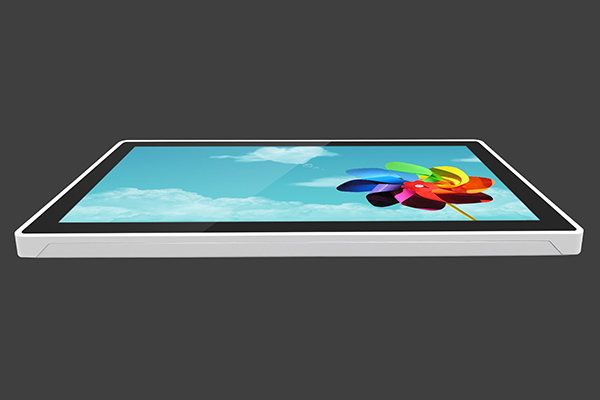

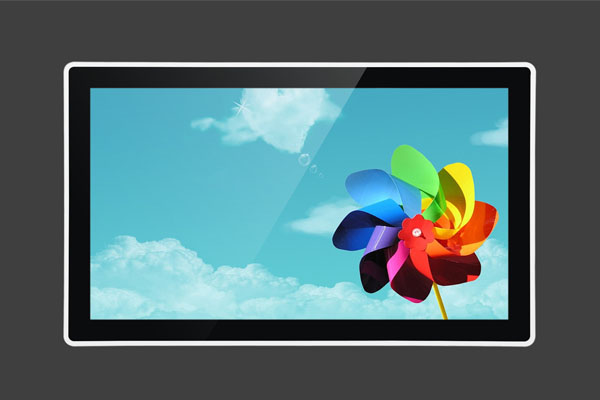

18.5 Inch Industrial Touch Monitor

  • 18.5 Inch Industrial Touch Monitor
  • The capacitive LCD touch monitor AMG-18IPSJ01T1 made by Amongo is equipped with the features as below:

    • l Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 longtime use;
    • l Durable mechanical design to meet tough environmental conditions and requirements;
    • l White side frame with super slim look, true flat surface after installation, easy for maintenance;
    • l Integrated with multi-touchscreen for front IP65 waterproof, optional with toughened cover glass for vandal proof;
    • l OEM/ODM solution available;


    Contact Us

Specifications

Model Name

AMG-18IPSJ01T1

Screen Size

18.5”

Active Display Area(mm)

409.8(H)x230.4(V)

Pixel Pitch(mm)

0.3(H)x0.3(V)

Display Resolution (pixel)

1366x768

Contrast Ratio

1000:1

Aspect Ratio

16:9

Touch screen(optional)

PCAP Touch(10 points)

Brightness (cd/㎡)

250/350/450nits

Backlight

LED

Viewing Angles (CR=10)

170(H)x160(V)

Dimension(VxHxT)

255x150x236(stretching)

Touch Interface

USB

Input Voltage

DC12V

Operating Systems Support

Windows 7/8/10 / Linux(optional)

Operating Temperature

0~50℃(non-condensation)

Storage Temperature

-20~65℃(non-condensation)

Relative Humidity

5(%RH)~90(%RH)
