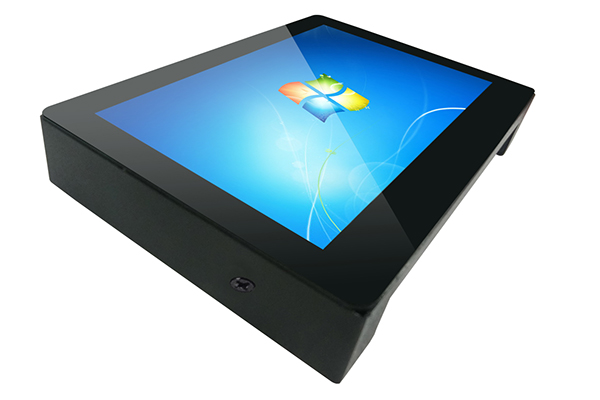

7 Inch Vesa/Wall Mount LCD Monitor

  • 7 Inch Vesa/Wall Mount LCD Monitor
  • The industrial grade wall mount LCD monitor AMG-07OPDX01T1 made by Amongo features a full metal enclosure and mount using VESA holes in the rear of the design with below benefits:
    • Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 long time running;
    • Wide range of touchscreen technologies including PCAP, Resistive, IR etc
    • Durable mechanical design to meet tough environmental conditions and requirements;
    • IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
    • Customization service available;
    Contact Us

Specifications

Model Name

AMG-07OPDX01T1

Screen Size

7"

Active Display Area (mm)

153.6(H)x90(V)

Pixel Pitch (mm)

0.15(H)x0.15(V)

Display Mode

Normally White

Display Resolution (pixel)

1024x600

Contrast Ratio

700:1

Display Color

PCAP TouchScreen

Brightness (CD/㎡)

600

Backlight

LED

Viewing Angles (CR =10)

160(H)x130(V)

Response Time(Typ.Tr+Tf)

25ms

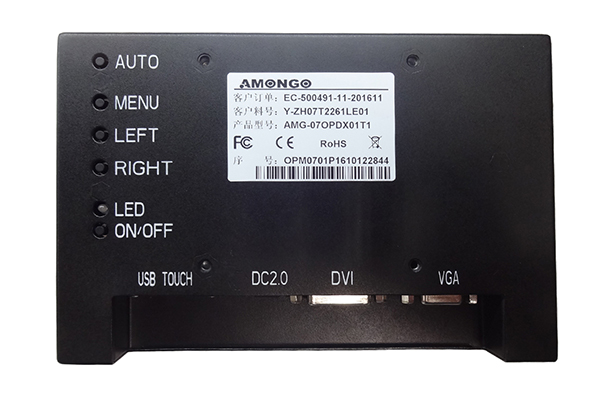

Signal Connector

VGA/DVI/USB

Power Consumption

DC 12V

Dimension(VxHxT)

180x122x28.9

Operating Temperature

-20~60℃

Storage Temperature

-30~70℃

Relative Humidity

5[%RH]~90[%RH]
