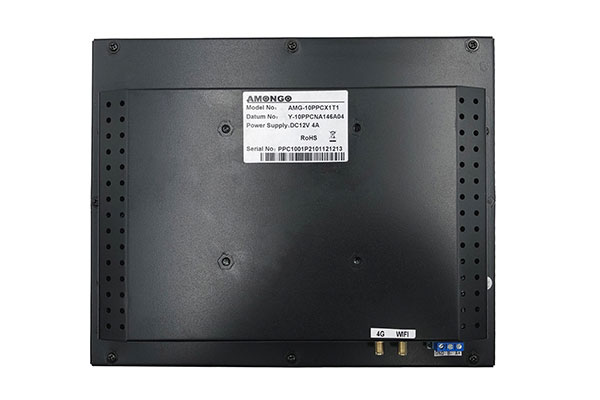

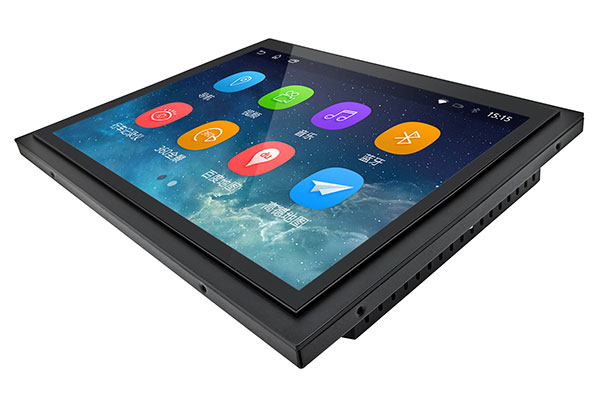

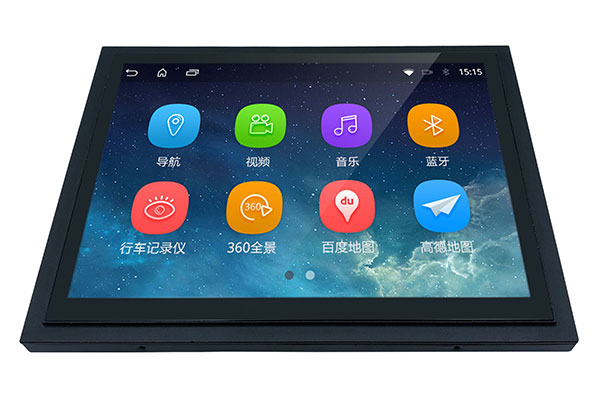

10.4 inch PCAP Multi-Touch Industrial Panel PC

  • 10.4 inch PCAP Multi-Touch Industrial Panel PC
  • The Android System 10.4inch PCAP Multi-Touch Industrial Panel PC AMG-10PPCX1T1 by Amongo features as below:

    • Popular Android operation system for end users' final development;

    • Supporting Ethernet / Wi-Fi / Bluetooth / GPS and other functions;

    • Surface hardness MoHs 7, IP65 waterproof, dust-proof;scratch resistant;

    • Convex full fillet design with PCAP touch screen to support front IP65 waterproof, dust proof and vandal proof with tempered glass;

    • Passed all the stability and reliability tests to ensure long time operation;

    • Customization could be offered to meet projects related with AI and IoT;


    Application: IoT, Kiosks,
    Contact Us

Specifications

System

Model Name

AMG-10PPCX1T1

CPU

RK3288 Quad core ARM-A17 CPU 1.8GHz

RAM

4GB(2GB optional)

EMMC

16GB(8/24/32GB optional)

RS232 port

1x RS232 port

RS485 port

1x RJ485 port

HDMI port

1x HDMI port

USB ports

2 x USB ports

OS

Android 9.1

Ethernet

WiFi , Ethernet,4G, Bluetooth

SD Card

Support

LCD

Screen Size

10.4"

Active Area(mm)

211.2(H)x158.4(V)

Pixel Pitch(mm)

0.20625(H)x0.20625(V)

Display Mode

Normally white

Display Resolution

1024x768

Brightness

350nits

Contrast Ratio

900:1

Viewing Angles

150(H);150(V)

Response Time

16ms

Backlight

LED

Optional

Touch Screen

PCAP Touch(10 points)

Tempered Glass

Optional

Light Sensor

Optional

Mechanical

Dimension(VxHxT)mm

248.8x199.6x36.8

Environmental

Operating Temperature

-20~70℃(non-condensation)

Storage Temperature

-30~80℃(non-condensation)

Relative Humidity

5~90(%RH)
