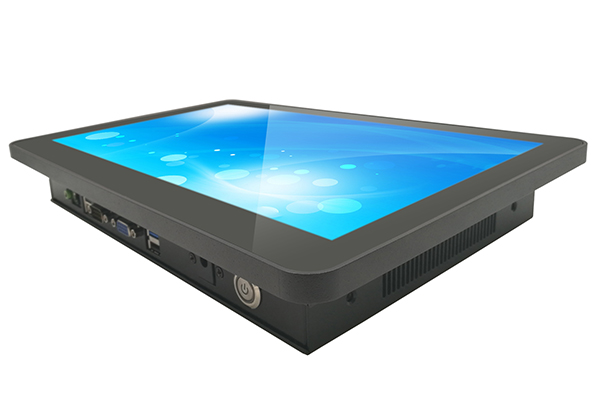

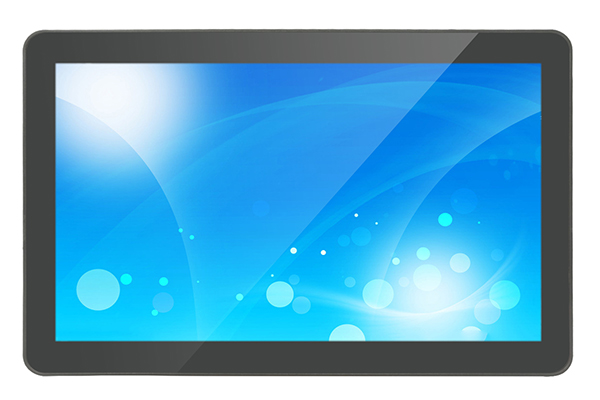

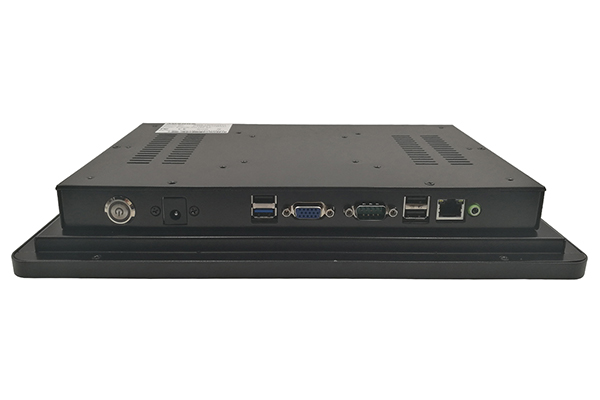

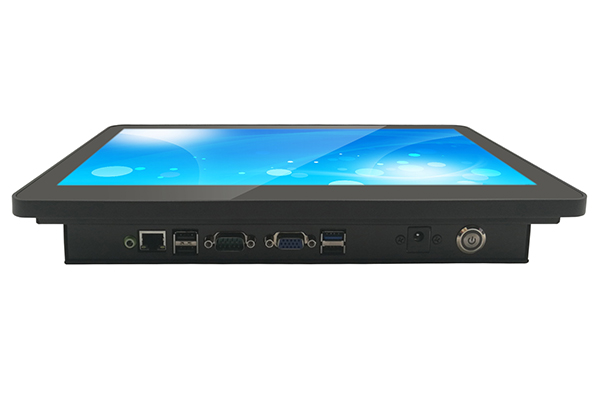

13.3 Inch Zero Bezel PCAP Touch Industrial Panel PC

  • 13.3 Inch Zero Bezel PCAP Touch Industrial Panel PC
  •                            The 13.3 inch industrial panel pc AMG-13PPC02T1 from Amongo is made to meet with customers’ requirement with below benefits:

    • High resolution TFT LCD panel from famous brand, with good image effect and wide view angles;

    • Fan-less cooling system and low power consumption with Intel processor;

    • Zero bezel projective capacitive touchscreen, rapid touch response;

    • Edge-to-edge design true flat surface design, bezel free, slim appearance;

    • Easy to clean and maintain, front IP 65 waterproof, dust proof;

    • Option of tempered glass for vandal proof function;

    • Robust casing and structure design to withstand the most harsh environment, anti-vibration, anti-shock;

    • Various mounting options: VESA mount, embedded mount etc.

    • Supporting various operation system of Windows, Android, Linux etc.;

    • Meet with reliability test for industrial applications;

    • Passed necessary certificates like CE, RoHS, and ISO system etc.;

    This device exemplifies a high-performance bezel free waterproof touchscreen monitor, ideal for demanding industrial and commercial applications.

    Contact Us

Specifications

Model Name

AMG-13PPC02T1

CPU

Intel ® Bay Trail J1900 Quad Core 2.0GHz

RAM

DDR3L 1333 8GB 1.35V

SSD

64GB(16/32GB optional)

HDD

120GB

VGA port

1 x VGA port

COM port

1 x COM port

USB ports

3xUSB 2.0 ;  1 x USB 3.0

LAN

1x10/100/1000Base-T Gigabit Ethernet

Auido

Line out

Screen Size

13.3"

Active Area(mm)

293.76(H)x165.24(V)

Pixel Pitch(mm)

0.153(H)x0.153(V)

Display Resolution

1920x1080

Display Color

262K

Brightness(cd/㎡)

220nits

Contrast Ratio

500:1

Viewing Angles

160(H);160(V)

Response Time(Tr+Tf)

30ms

Touch Screen

PCAP Touch(10 points)

Tempered glass

Optional

Dimension(VxHxT)mm

330.4x166.6x47

Operating Temperature

0~50℃(non-condensation)

Storage Temperature

-20~60℃(non-condensation)

Relative Humidity

5~90(%RH)
