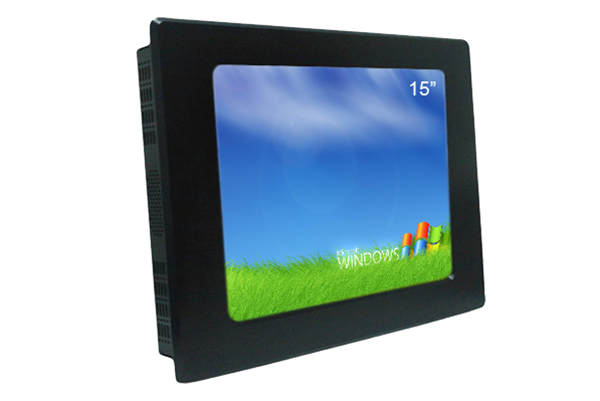

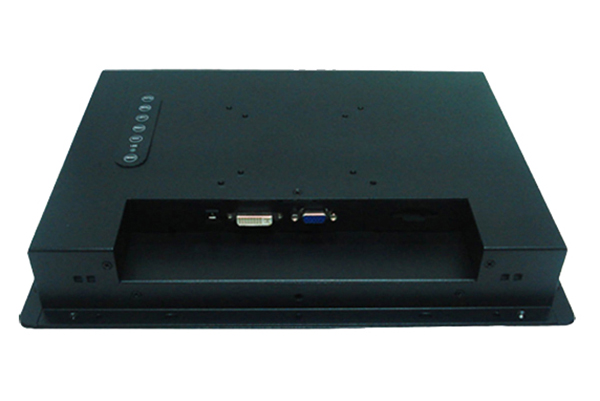

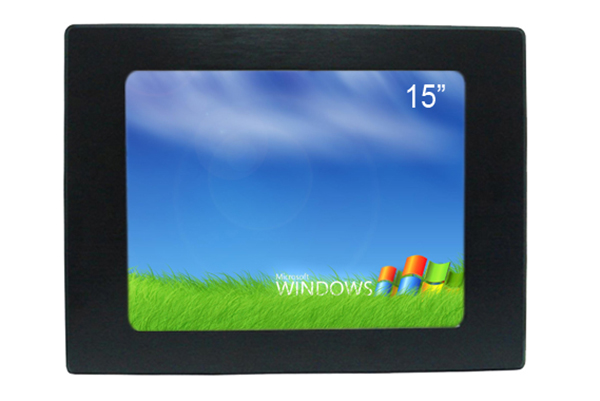

This 15-inch Industrial Resistive Touch LCD Display.
Key features
·Aluminum Frame Design
·Wide Viewing Angles
·High Reliability and Long Lifetime
·Great heat dissipation
Typical applications
·Industrial Equipment
·Railway etc
| Specification | |
| Screen Size | 15" |
| Active Display Area(mm) | 304.128 (H) x 228.096 (V) |
| Pixel Pitch(mm) | 0.297 (H) x0.297 (V) |
| Display Mode | Normally white |
| Display Resolution(pixel) | 1024x768 |
| Contrast Ratio | 700:1 |
| Display Color | 16.2M |
| Brightness | 250/350/400/1000nits |
| Backlight | CCFL/LED |
| Viewing Angles(CR=10) | 160 (H); 130(V) |
| Response Time(Typ.Tr+Tf) | 8ms |
| Touch Screen | Resistive |
| Signal Connector | VGA/DVI |
| Power Input | DC 12V |
| Operating Temperature | -10～70℃ |
| Storage Temperature | -20～80℃ |
| Relative Humidity | 5(%RH)～90(%RH) |
