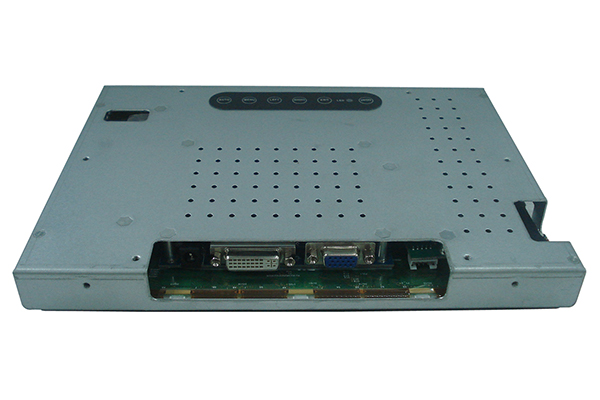

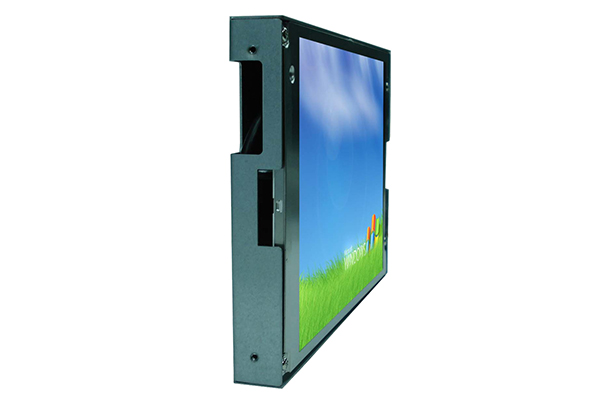

This 8.4‑inch LCD module features wide‑temperature range, anti‑glare and shock‑resistant properties.
Key features
· Embedded Panel
·Anti‑glare & impact‑resistant
·Anti‑interference
·Single‑channel LVDS
·Long backlight service life
Typical applications
·Industrial control display module
·Testing and measuring instrument
·Power control terminal
| Specification | |
| Screen Size | 8.4" |
| Active Display Area(mm) | 170.4(H) x127.8(V) |
| Pixel Pitch(mm) | 0.213(H) x 0.213 (V) |
| Display Mode | Normally white |
| Display Resolution(pixel) | 800x600 |
| Contrast Ratio | 500:1 |
| Display Color | 16.2M |
| Brightness | 200nits |
| Backlight | CCFL/LED |
| Viewing Angles(CR=10) | 130(H); 110 (V) |
| Response Time(Typ.Tr+Tf) | 35ms |
| Signal Connector | VGA/DVI |
| Power Input | DC 12V |
| Operating Temperature | 0～50℃ |
| Storage Temperature | -20～60℃ |
| Relative Humidity | 5(%RH)～90(%RH) |
