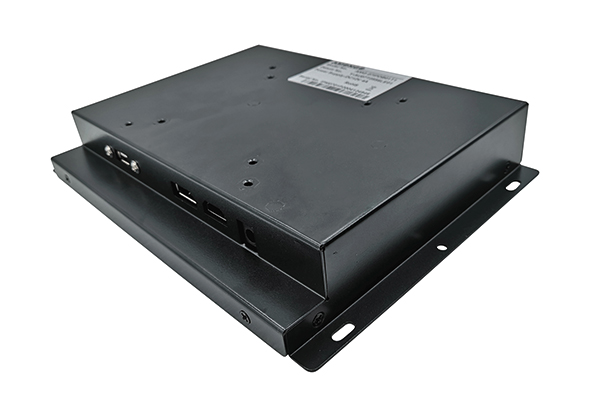

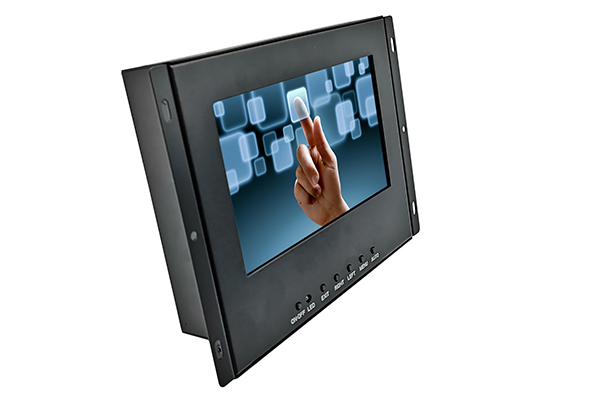

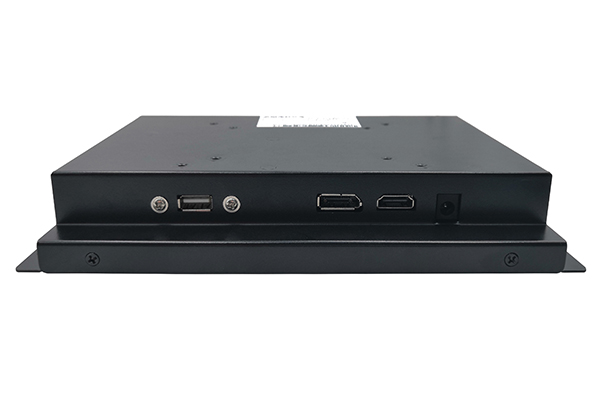

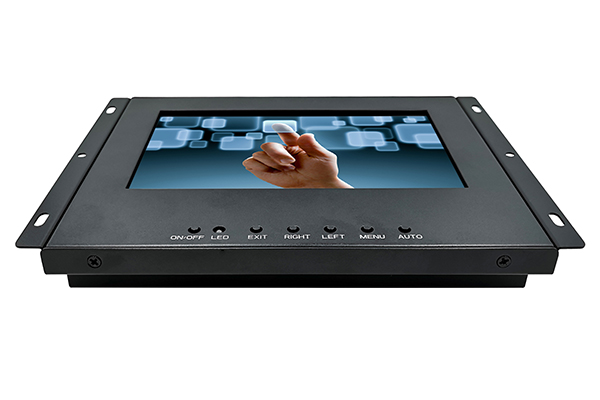

7 inch Rack Mount Industrial LCD Monitor

  • 7 inch Rack Mount Industrial LCD Monitor
  • The 7 inch rack mount industrial monitor AMG-07IPDB01T1 newly customized by Amongo Display is a suitable choice for applications with demanding environment due to the following reasons:

    • Branded industrial LCD panels with perfect image quality and long life span, industrial-grade components designed for long time operation;

    • Advanced capacitive touch technology adopted, surface Mohs 7 hardness;

    • Robust mechanical design to ensure stable quality and function in harsh working conditions.

    • Easy-to-install with rack mounting enclosures and vesa holes

    • Wide temperature operation supported.

    Application: Industrial automation,
    Contact Us

Model Name

AMG-07IPDB01T1

Screen Size

7"

Active Display Area(mm)

153.6(H)x90.0(V)

Pixel Pitch(mm)

0.15(H)x0.15(V)

Display Resolution (pixel)

Normally White

Contrast Ratio

1024x600

Display Mode

16.7M/262K

Touch screen(optional)

800:1

Brightness (cd/㎡)

350nits

Backlight

LED

Viewing Angles (CR=10)

150(H);145(V)

Response Time(Typ.Tr+Tf)

16ms

Touch Screen

PCAP Touch(10 points)

Light Sensor

Optional

Tempered glass

Optional

Dimension(VxHxT)

224x162x35

Signal Connector

HDMI/DP

Power Input

DC 12V

Touch Controller

USB

Operating Systems Support

Windows 7/8/10 / Linux(optional)

Operating Temperature

-20~60℃(non-condensation)

Storage Temperature

-30~70℃(non-condensation)

Relative Humidity

5(%RH)~90(%RH)
