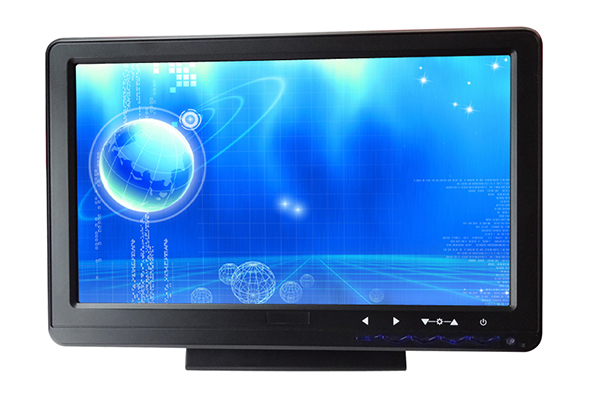

10.1 Inch Flush Rear Mount LCD Monitor

  • 10.1 Inch Flush Rear Mount LCD Monitor
  • The industrial flush rear mount LCD monitor AMG-10IPAM02T1 from Amongo has the following exceptional benifits:
    • Branded LCD panels with perfect image quality and wide viewing angles
    • Built with industrial-grade components for a reliable 24/7 long time operation
    • Touchscreen can be optional from PCAP, Resistive etc

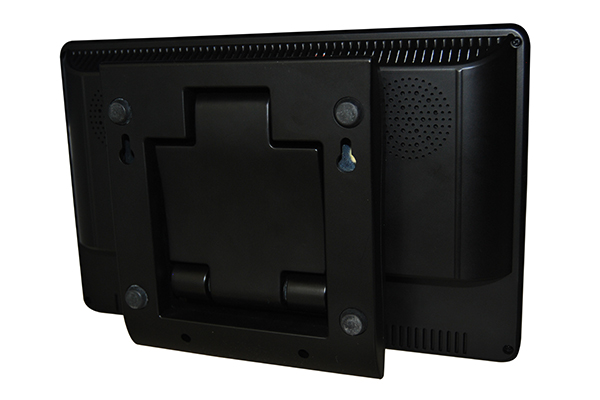

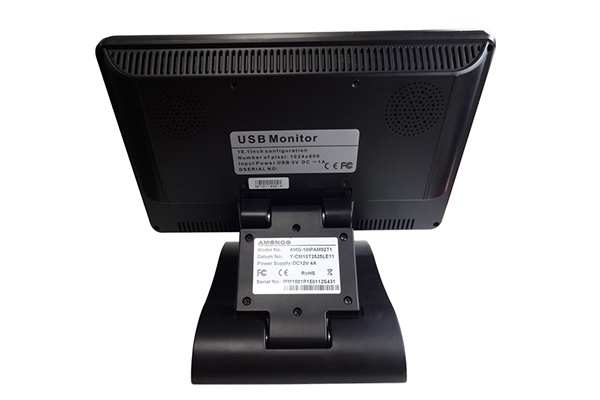

    • Easy-to-install in a desktop holder with VESA holes backside
    • Good choice for application for console or control center
    • Customization solution available
    Contact Us

Specifications

Model Name

AMG-10IPAM02T1

Screen Size

10.1"

Display Resolution (pixel)

1024x600

Contrast Ratio

500:1

Aspect Ratio

16:9

Touch screen(optional)

4-Wire Resistive Touch(5-Wire for Optional)

Brightness (cd/㎡)

250/450nits

Backlight

LED

Viewing Angles (CR =10)

140Hx90V

Power Consumption

≤8W

Dimension(VxHxT)

255x150x236(stretching)

Touch Interface

USB (RS232 for Optional)

Input Voltage

DC12V±15%

HDMI Format

480i,480p,576i,576p,720p,1080i,1080p(50/60Hz)

Operating Systems Support

Windows 7

Operating Temperature

-20~50℃

Storage Temperature

-30~65℃

Relative Humidity

5(%RH)~90(%RH)
