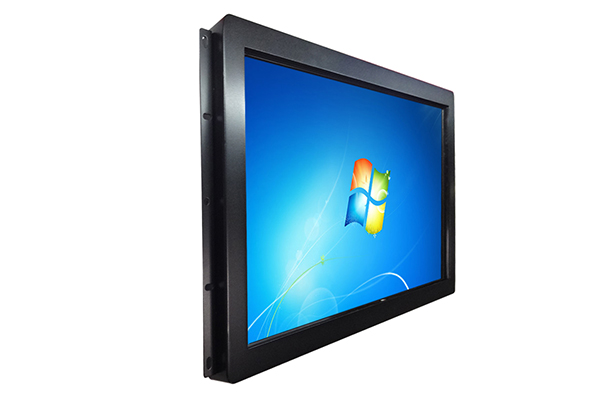

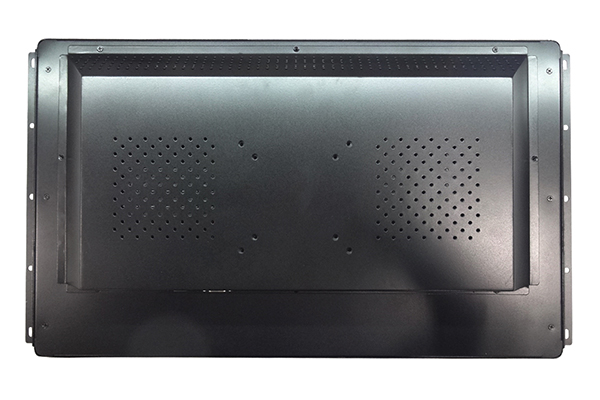

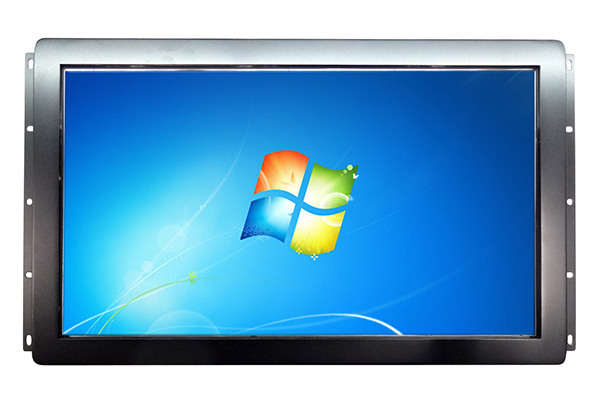

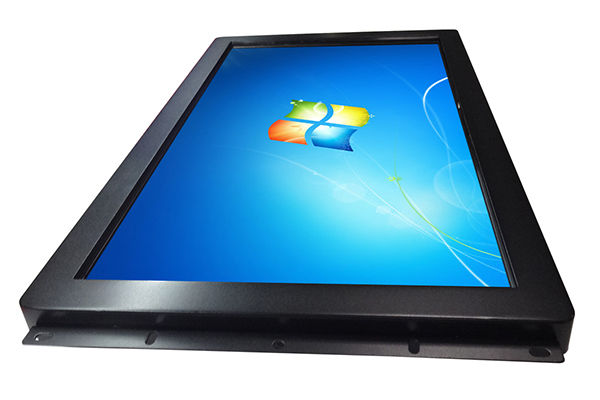

The industrial grade wall mount panel PC AMG-21PPC01T4 made by Amongo comes with the following advantages:
Branded industrial grade LCD panels with perfect image quality and wide viewing angles;
Powered by reliable Intel processor and other industrial-grade components for a 24/7 long time trouble-free operation;
Available with or without touchscreens;
IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
Stable quality, high reliability and long lifetime even in harsh conditions;
Ultimate solution for industrial embedded computing with customization
Model Name | AMG-21PPC01T4 |
CPU | Intel® Haswell LGA 1150 Support I3/I5/I7 |
Chipset | Chipset Intel® H81 |
Memory | DDR3-1066/1333/1600MHz Max 8GB |
HDMI port | 1 x HDMI port |
VGA port | 1 x VGA port |
COM port | 1 x COM port |
USB ports | Default x 6 USB 2.0(2 x USB 3.0) |
Ethernet | 1 x Realtek RTL8111D BASE-T Gigabit Ethernet |
Audio | Line-out,Mic-in |
Display Size(Diagonal) | 21.5" |
Active Display Area(mm) | 476.64(H)x268.11(V) |
Max Resolution | 1920x1080 |
Luminance(cd/㎡) | 250 |
Display Mode | Normally black |
Display Color | 16.7M |
Contrast Ratio | 3000:1 |
Response Time(Typ.Tr+Tf) | 25ms |
Pixel Pitch(mm) | 0.24825(H)x0.24825(V) |
Viewing Angle(CR=10) | 178(H);178(V) |
Backlight | LED |
Dimension(VxHxT) | 554.4x325.8x60 |
Type | IR Touchscreen |
Input Voltage | DC 12～19V |
Operating Temperature | 0～50℃ |
Storage Temperature | -20～60℃ |
Relative Humidity | 5[%RH]～90[%RH] |
