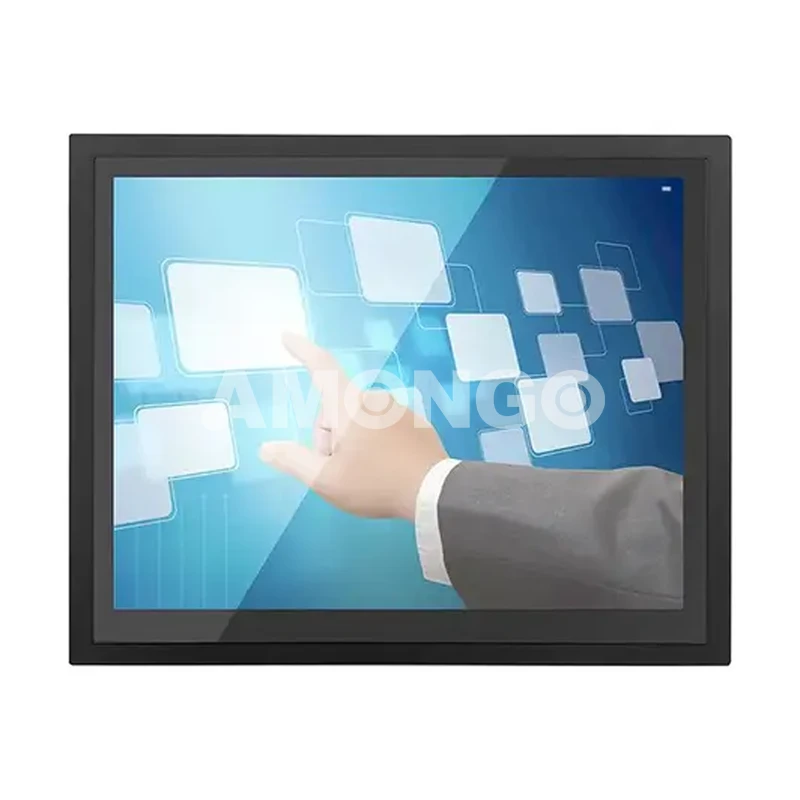

The AMG-10IPYZR1T1 display device is a high-brightness screen with a brightness of up to 1000 NITS. The screen surface has UV protection function, which extends the screen's lifespan. It is suitable for outdoor advertising media, commercial displays, intelligent transportation, urban landmarks and other fields.
Key features
IP65 front face waterproofing
UV protection
Cooling fan
Mounting & installation
Supports embedded installation and VESA mounting
Waterproof and with excellent sealing performance
Surface impact resistance rating: IK08; Hardness: Mohs 7H
Brightness: 100～1000 nits (optional)
Full lamination and AG anti-glare treatment (optional)
Typical applications
Outdoor digital billboards, public transportation information screens, theme park information guidance screens, campus interactive display windows, and so on
| Technical Specification | |
| LCD | |
| Model Name | AMG-10IPYZR1T1 |
| Screen Size | 10.4" |
| Active Display Area(mm) | 211.2(H)×158.4(V) |
| Pixel Pitch(mm) | 0.20625(H)×0.20625(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 1024x768 |
| Contrast Ratio | 900:01:00 |
| Brightness | 1000nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 150(H);150(V) |
| Response Time(Typ.Tr+Tf) | 16ms |
| Opitional | |
| Touch Screen | PCAP Touch(10 points) |
| Light Sensor | Support |
| Privacy Film | Optional |
| I/O Interface | |
| Signal Connector | DP/HDMILVDS |
| Power Input | DC 12V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 248.8X199.6X36.9 |
| Environmental | |
| Operating Temperature | -20~70℃(not clotted) |
| Storage Temperature | -30~80℃(not clotted) |
| Relative Humidity | 5~90(%RH) |
