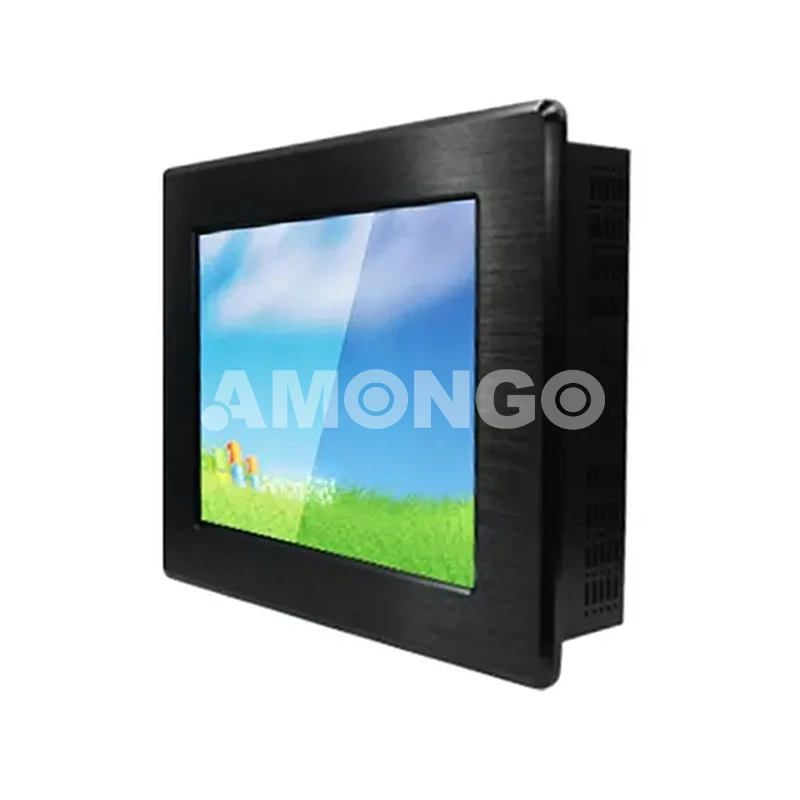

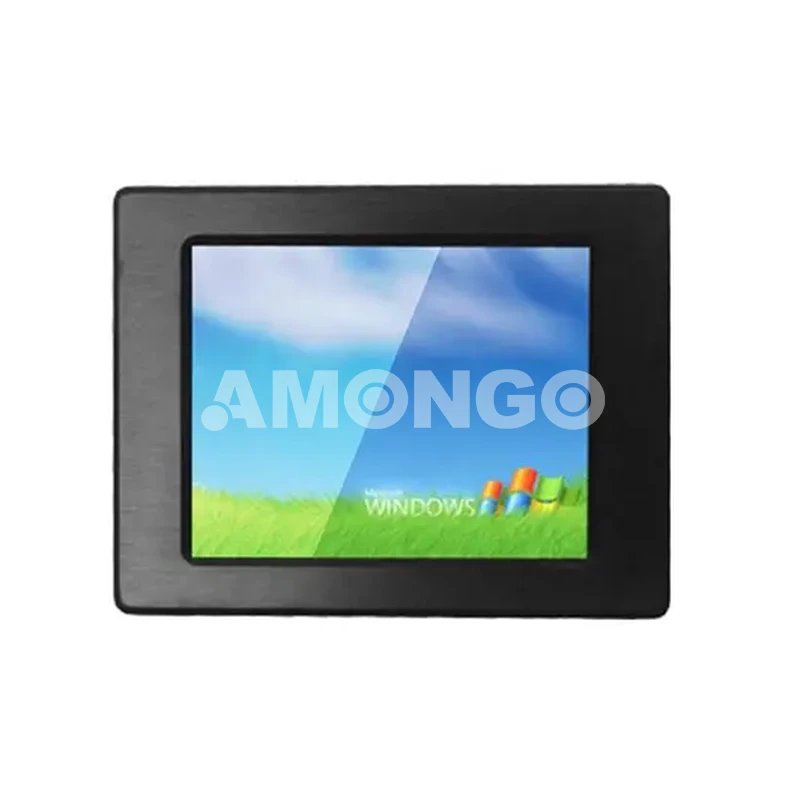

AMG-10IPPC03T1 is a display module designed primarily for industrial embedded applications. With its compact size, low power consumption, and excellent resistance to vibration and temperature variations, it is widely used in PLC human-machine interfaces, industrial control all-in-one computers, control cabinet display units, and other similar fields.
Key features
Touchable without a conductive medium
Integrated aluminum panel
Protection level of IP65
Industrial-grade wide temperature stability, strong environmental adaptability
Mounting & installation
Supports various installation methods such as VESA socket installation, bracket installation, and embedded panel installation. While ensuring the characteristics of earthquake resistance and dust prevention, it also makes the machine appearance neat and orderly, and facilitates maintenance and disassembly.
Typical applications
Assembly line equipment
Factory production line monitoring
CNC machine tools
Express locker
| Technical Specification | |
| LCD | |
| Model Name | AMG-10IPPC03T1 |
| Screen Size | 10.4" |
| Active Display Area(mm) | 210.4(H)x157.8(V) |
| Pixel Pitch(mm) | 0.0685(H)x0.2055(V) |
| Display Mode | Normally Black |
| Display Resolution(pixel) | 1024x768 |
| Contrast Ratio | 1200:1 |
| Display Color | 16.7M |
| Brightness | 1000nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 176(H);176(V) |
| Response Time（Typ.Tr+Tf） | 25ms |
| Optional | |
| Touch Screen | PCAP Touch（10 points） |
| Light Sensor | Optional |
| Tempered glass | Supprot |
| I/O Interface | |
| Signal Connector | VGA/DVI |
| Power Consumption | DC 2.0V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 248*217*34.5 |
| Environmental | |
| Operating Temperature | -20~70℃（non-condensation） |
| Storage Temperature | -20~70℃（non-condesation） |
| Relative Humidity | 5~90(% RH) |
