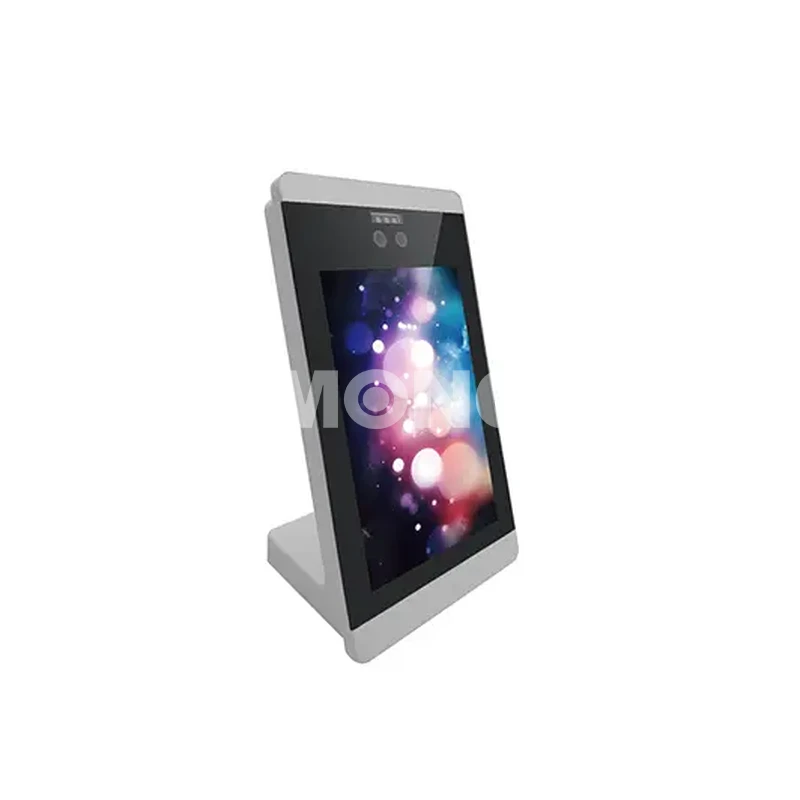

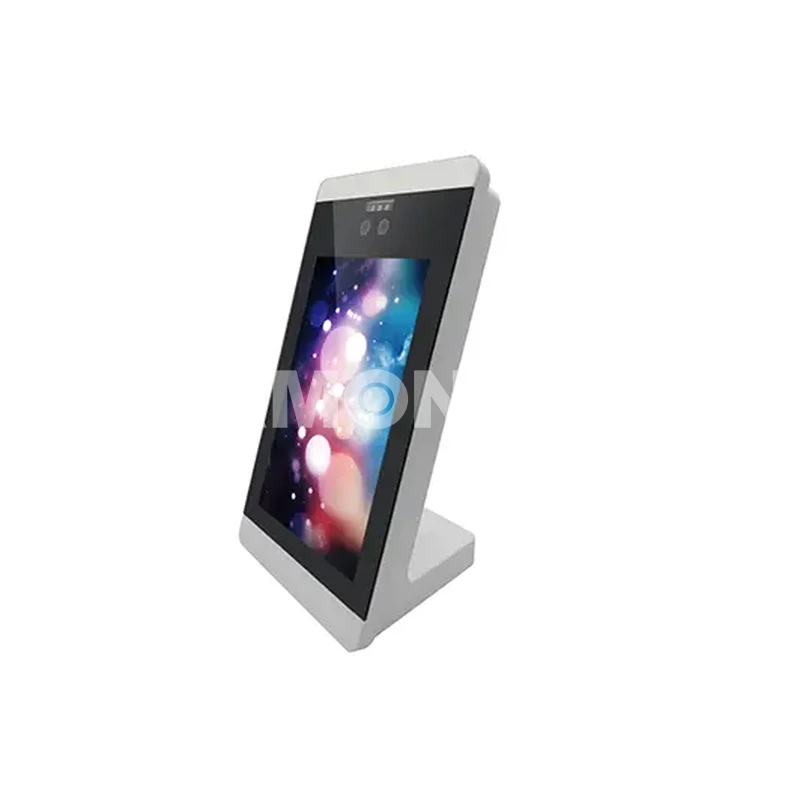

The 8 inch android PCAP touch panel pc AMG-08PPC01T5 from Amongo is carrying with the following benefits:
Branded LCD panels with perfect image quality and wide viewing angles to assure a good visual effect;
High-quality industrial-grade components built inside for 24/7 long time operation without failures.
8 inch PCAP multi-touchscreen panel with Binocular camera for face recognition;
Up-to-date Android main board support applications related with IIoT;
Resistance to extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.;
Fully tailor-made service offered according to clients requirements
Model Name | AMG-08PPC01T5 |
CPU | RK3399 Dual Cortex A72+Quad core A53 64bit CPU |
RAM | 2GB(4GB Optional) |
ROM | 16GB(8GB/32GB/64GB optional) |
USB Port | 1 x USB 2.0 |
RS232 Port | 1 x RS232 |
LAN | 1x 10/100/1000 Base-T Gigabit Ethernet |
OS | Android 7.1 |
3G/4G | Optional |
WiFi | 2.4G dual-band WiFi dual antenna |
Screen Size | 8" |
Active Area(mm) | 172.22(H)x109.64(V) |
Pixel Pitch(mm) | 0.15825(H)x0.05275(V) |
Display Resolution | 1280x800 |
Display Color | Normally Black |
Brightness | 250nits |
Contrast Ratio | 900:1 |
Viewing Angles | 170(H);170(V) |
Response Time(Tr+Tf) | 25ms |
Backlight | LED |
Touch Screen | PCAP Touch(10 points) |
HD Camera | Optional |
Dimension(VxHxT)mm | 140x248.2x37 |
Operating Temperature | -10~50℃(Non-condensing) |
Storage Temperature | -20~60℃(Non-condensing) |
Relative Humidity | 5~90(%RH) |
