High quality original lcd panels with perfect image quality, low power consumption LED back light source, long life span;
Durable industrial-grade components adopted for reliable and stable function to support long time operation;
Latest multi point capacitive touch screen adopted, Surface MoHS 7 anti-scratch technology;
Full flat surface design for front IP 65, dust proof, easy for installation and maintenance;
Customization service available

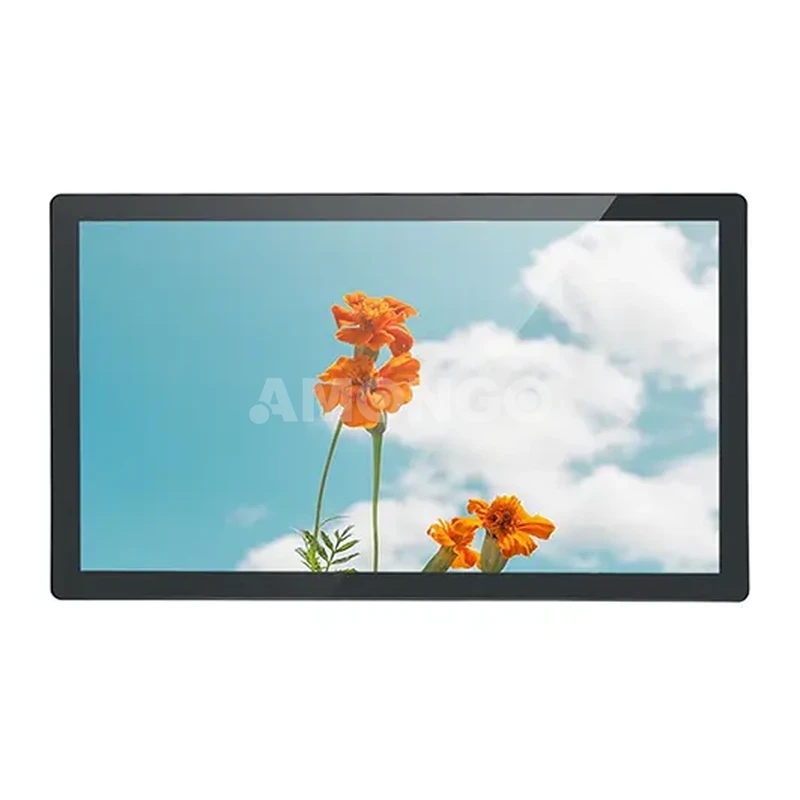

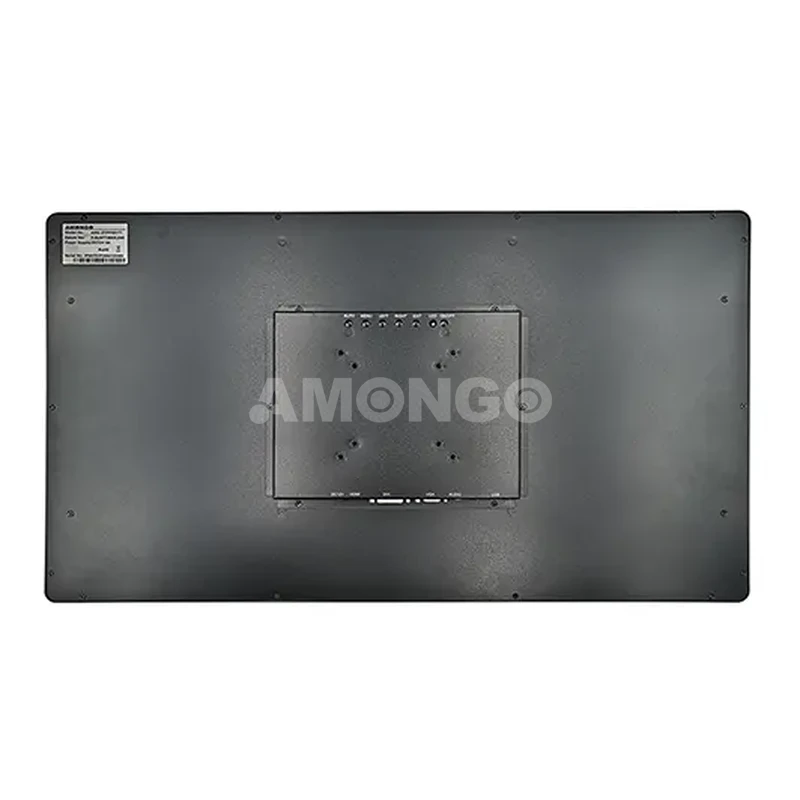

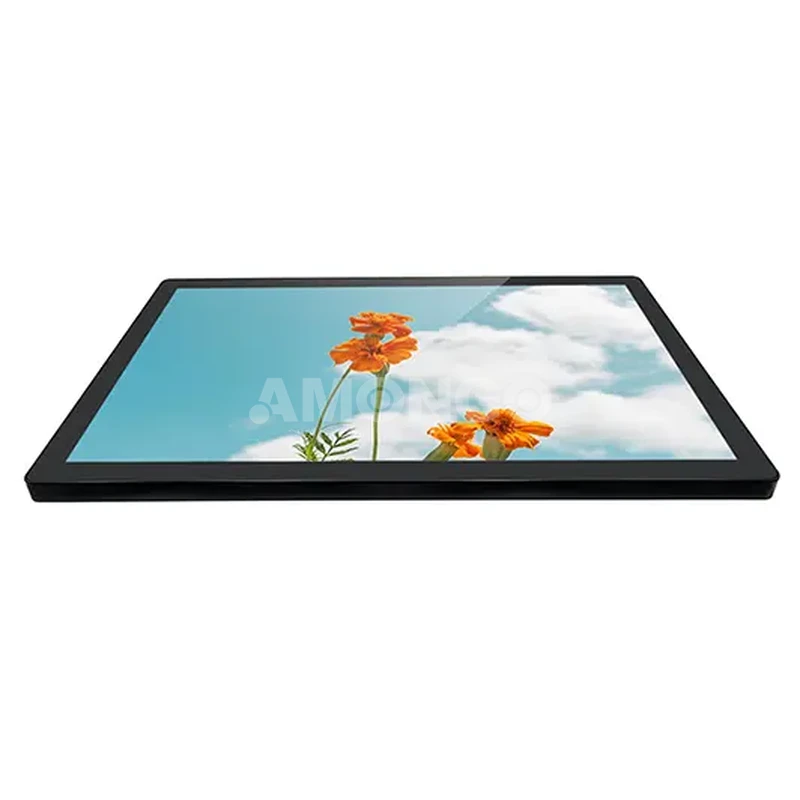

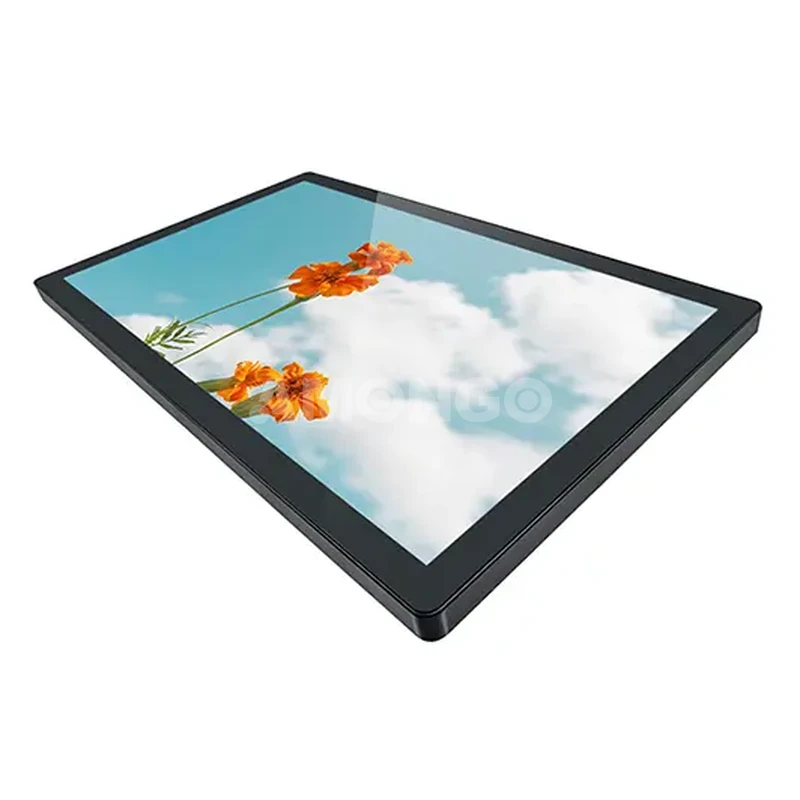

Model Name | AMG-27IPPO01T1 |
Screen Size | 27" |
Active Display Area(mm) | 597.6(H)x336.15(V) |
Pixel Pitch(mm) | 0.31125(H)x0.31125(V) |
Display Resolution (pixel) | Normally Black |
Contrast Ratio | 1920x1080 |
Display Mode | 16.7M |
Touch screen(optional) | 3000:1 |
Brightness | 300nits |
Backlight | LED |
Viewing Angles (CR=10) | 178(H);178(V) |
Response Time(Typ.Tr+Tf) | 12ms |
Touch Screen | PCAP Touch(10 points) |
Light Sensor | Optional |
Tempered glass | Optional |
Dimension(VxHxT) | 650.4x388.4x46 |
Signal Connector | VGA/DVI-D/HDMI/Audio |
Power Input | DC 12V |
Touch Controller | USB |
Operating Systems Support | Windows 7/8/10 / Linux(optional) |
Operating Temperature | 0～50℃(non-condensation) |
Storage Temperature | -20～60℃(non-condensation) |
Relative Humidity | 5(%RH)～90(%RH) |
