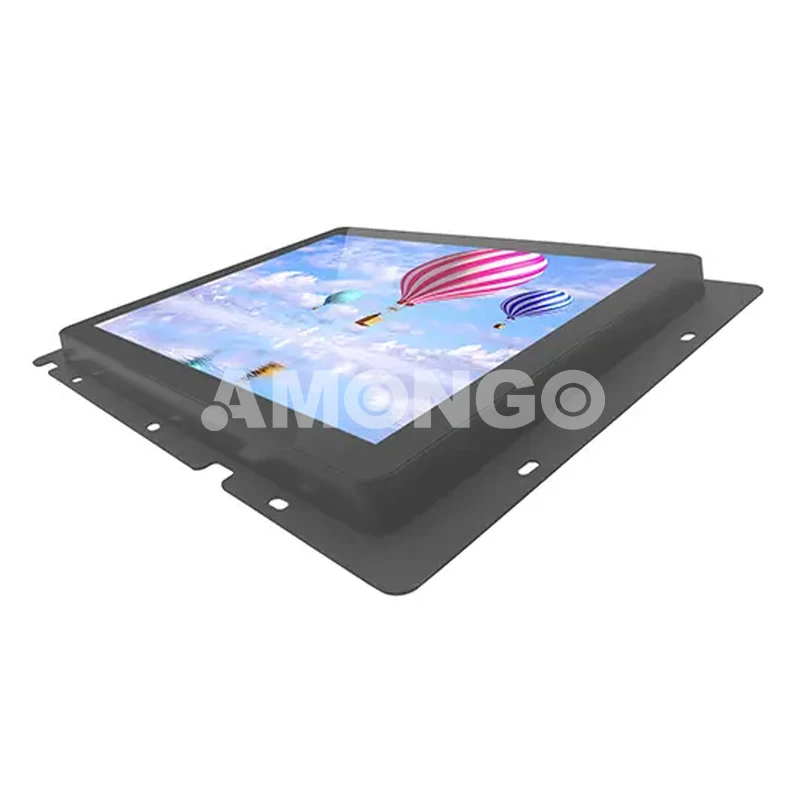

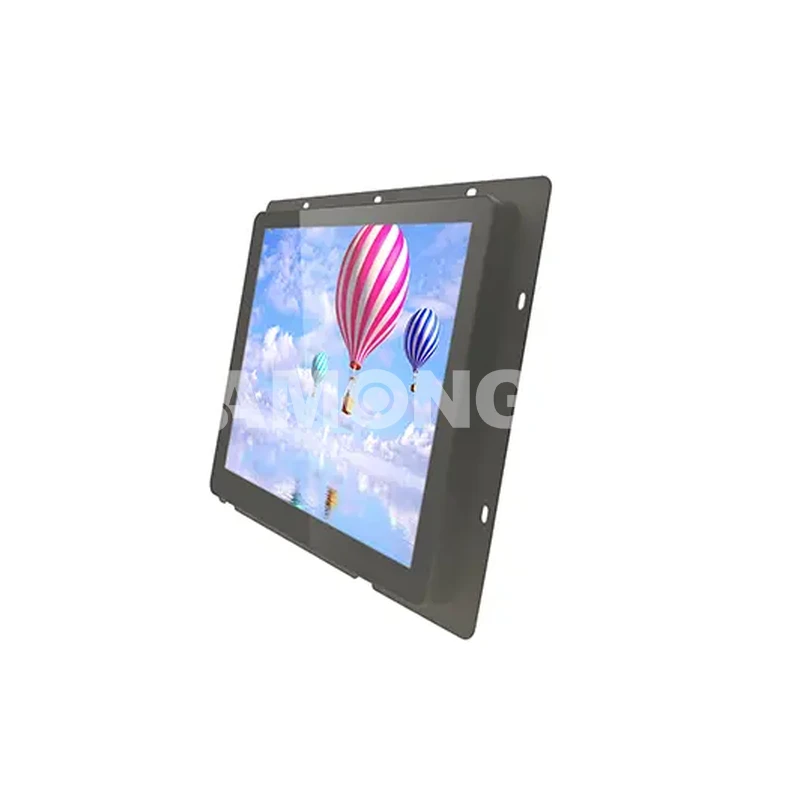

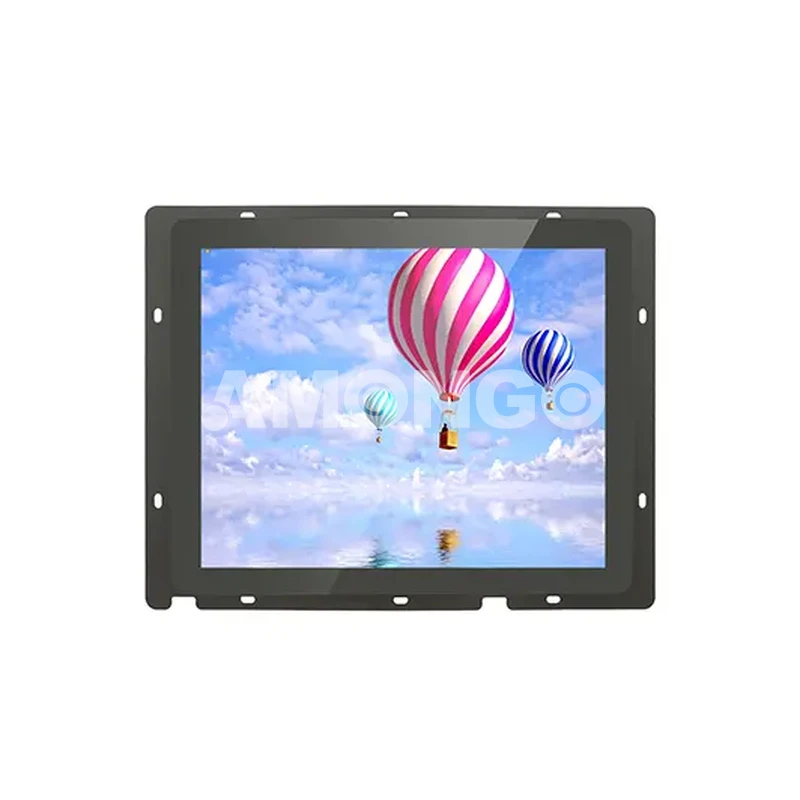

The 15 inch android based all-in-one panel pc AMG-15PPC02T2 from Amongo is designed with following features for self-service terminals:
Branded LCD panels with perfect image quality and wide viewing angles for good visual effect;
High-quality industrial-grade components used for stable performance in extreme operation environments;
15 inch 10-points PCAP touchscreen panel with full flat surface design;
3G/4G, Ethernet, WiFi, GPS, Bluetooth functions optional;
Up-to-date Android main board supporting customization application;
Designed to endure extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.;
Fully customization solution available for customers' projects.
Model Name | AMG-15PPC02T2 |
CPU | RK3368 Eight Core ARM-A53 1.5GHz |
RAM | 2GB(4GB optional) |
ROM | 8GB(16/32GB optional) |
OS | Android 5.1.1 |
VGA Port | 1 x VGA |
USB Ports | 2 x USB |
Ethernet | 4G/3G, Ethernet, WiFi, GPS, Bluetooth optional |
Audio | Mic-in, Line-out |
Screen Size | 15" |
Active Area(mm) | 344.16(H)x193.59(V) |
Pixel Pitch(mm) | 0.297(H)x0.297(V) |
Display Resolution | 1024x768 |
Display Color | Normally Black |
Brightness(cd/㎡) | 450nits |
Contrast Ratio | 800:1 |
Backlight | LED |
Viewing Angles | 160(H);150(V) |
Response Time(Tr+Tf) | 8ms |
Touch Screen | PCAP Touch(10 points) |
Light Sensor | Support |
HD Camera | Optional |
Dimension(VxHxT)mm | 401x312.5x50.7 |
Operating Temperature | -30~85℃(Non-conctensation) |
Storage Temperature | -30~85℃(Non-conctensation) |
Relative Humidity | 5~90(%RH) |
