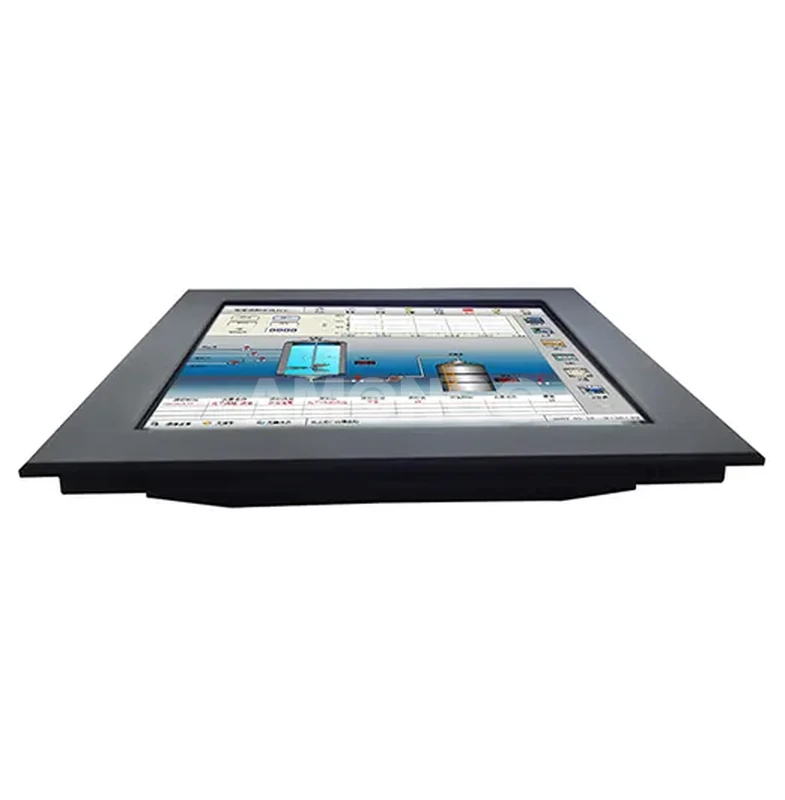

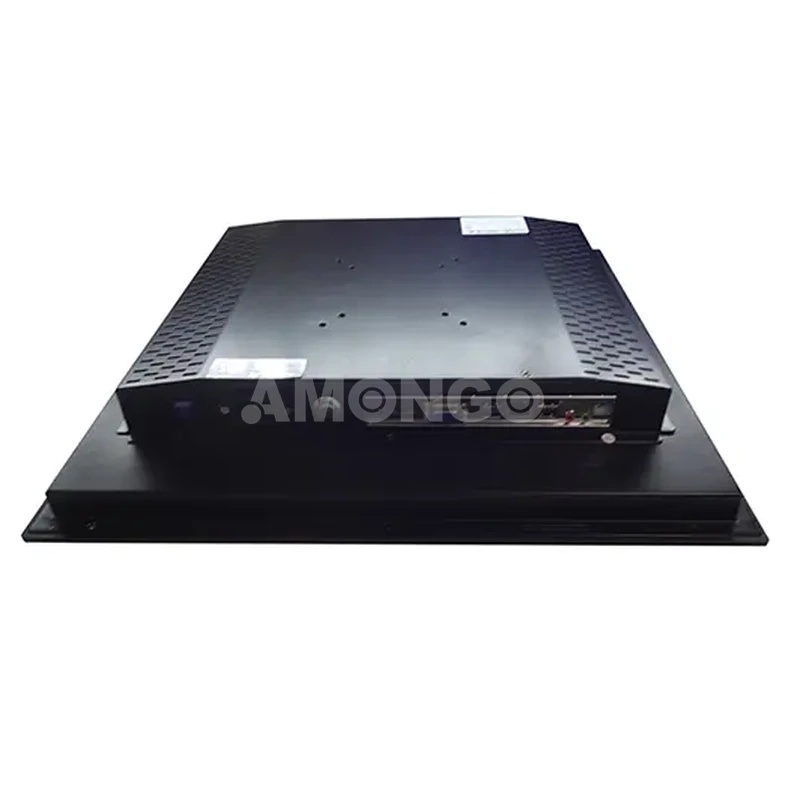

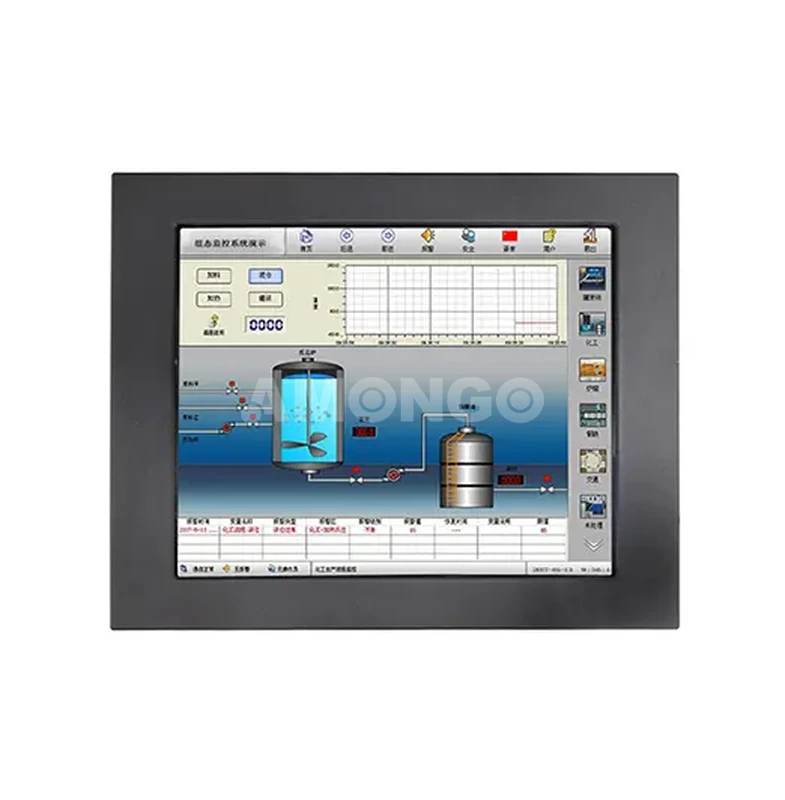

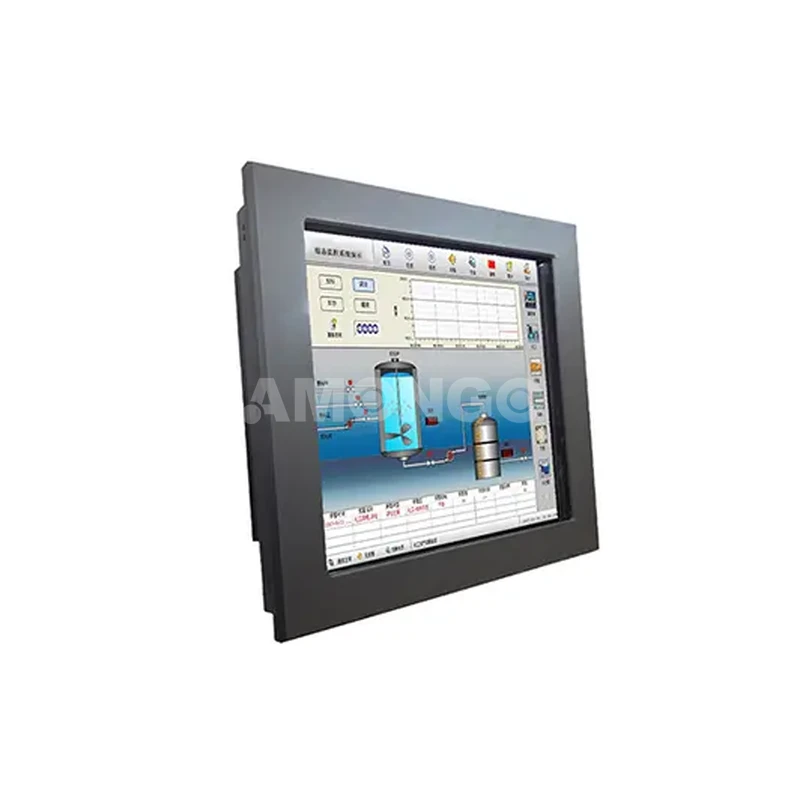

The 17 inch industrial panel computer AMG-17PPC02T1 from Amongo is designed with below benefits:
Branded LCD panels with perfect image quality and wide viewing angles, low power consumption LED backlight;
Latest industrial-grade components like high performance processor, hard drives, power supplies for stable function for 24/7 long time working;
Flexible touchscreen options like PCAP, Resistive, IR etc.;
Rugged metal enclosure design with front IP65 dust proof etc.;
Standard mounting like panel mount or embedded mount;
Rigorous quality control to ensure fully function after delivery
Specifications
Model Name | AMG-17PPC02T1 |
CPU | Intel ® Bay Trail J1900 Quad Core 2.0GHz |
RAM | DDR3L 1333/1600MHz 2GB(Max 8GB) |
SSD | 16GB/32GB(optional) |
HDMI port | 1 x HDMI port |
VGA port | 1 x VGA port |
USB ports | 3xUSB 2.0 ; 1 x USB 3.0 |
LAN | 1x10/100/1000Base-T Gigabit Ethernet |
Audio | Line-out,Mic-in |
Display Size(Diagonal) | 17" |
Active Display Area(mm) | 337.920(H)x270.336(V) |
Max Resolution | 1280x1024 |
Luminance(cd/m ) | 1500 |
Contrast Ratio | 1000:1 |
Pixel Pitch(mm) | 0.264(H)x0.264(V) |
Viewing Angle(CR=10) | 170(H);160(V) |
Backlight | LED |
Dimension(VxHxT) | 384.6x316.6x86.5 |
Type | IR Touchscreen |
Output Rating | 150W(max) |
Input Voltage | 100～240V～1.5A 50～60Hz |
Operating Temperature | 0～50℃ |
Storage Temperature | -20～60℃ |
Relative Humidity | 5[%RH]～90[%RH] |
