Convex full flat fillet design
PCAP multi-touchscreen(10 points)
Surface IP65 Waterproof, Dust-proof
Surface hardness MoHs 7, scratch resistant
High brightness / light sensor
Starting at low temperature, stable quality
Application:
Kiosk/Industrial automation etc

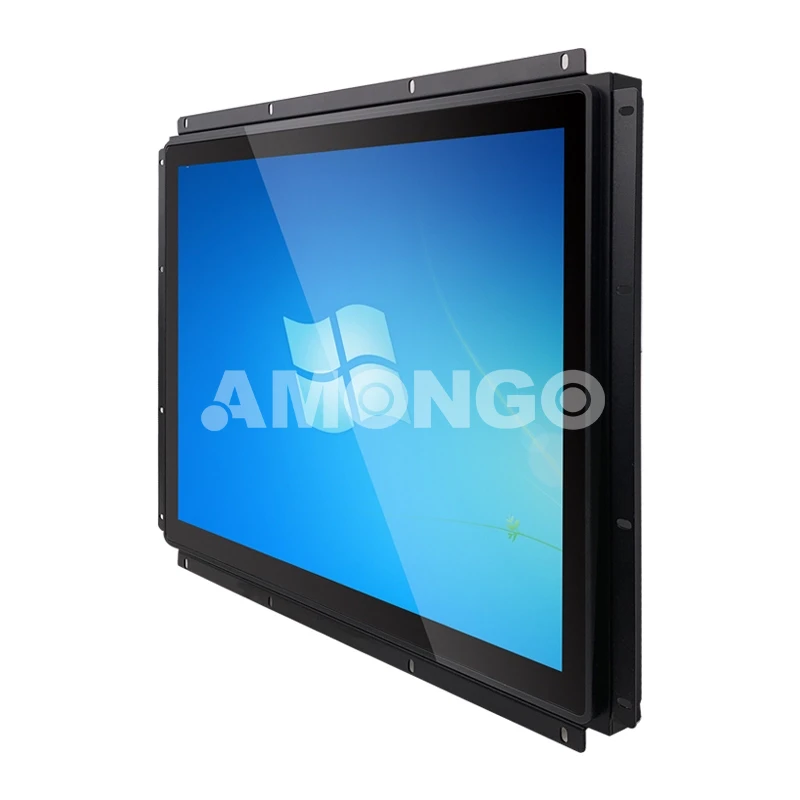

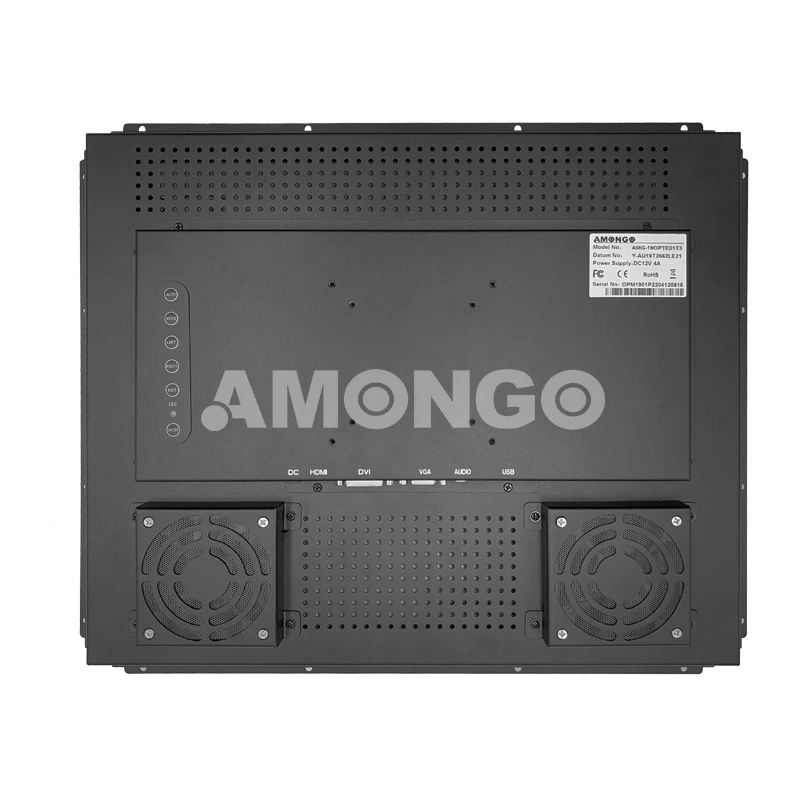

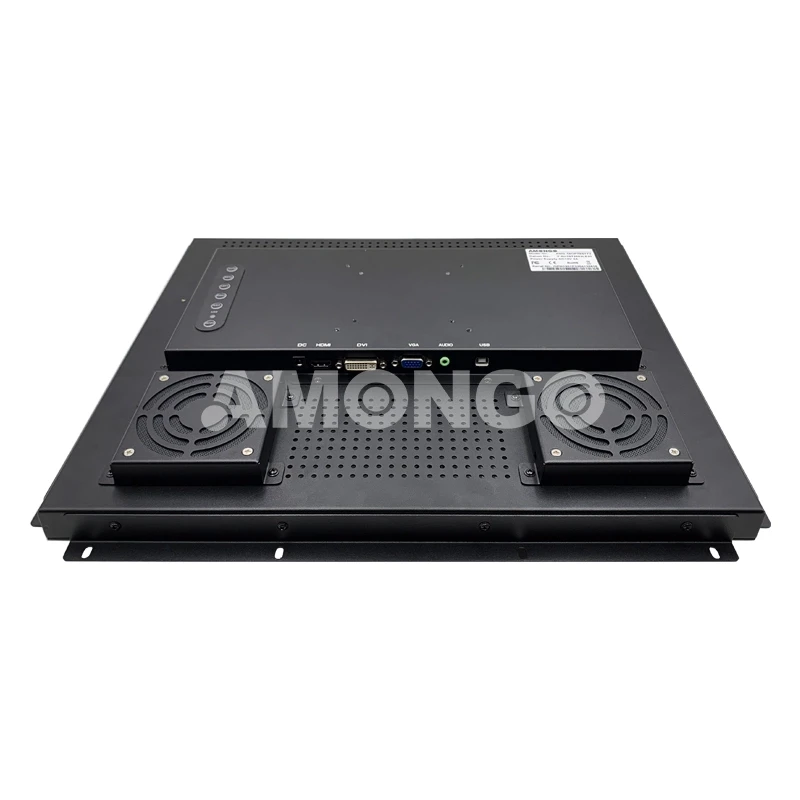

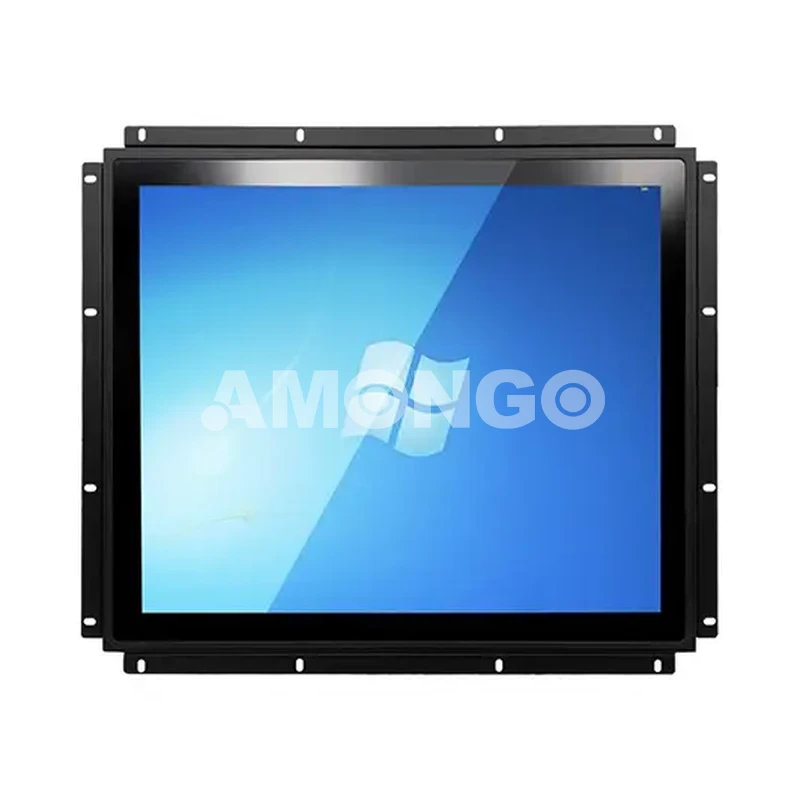

AMG-19OPTE01T3 is an 19-inch 1000nits high-brightness industrial touch monitor with 1280×1024 resolution. It supports optional 10-point PCAP capacitive touch and ambient light sensor. Featuring HDMI,VGA,DVI input, DC12V power, embedded and VESA mounting, it ensures visibility under strong light and is ideal for HMI integration of self-service and industrial equipment.
Supports embedded installation and VESA mounting
Waterproof and with excellent sealing performance
1.Visible under strong ambient light.
2.Enables automatic screen backlight adjustment.
3.High reliability and long lifespan, suitable for prolonged continuous equipment operation.
4.Surface impact resistance rating: IK08; Hardness: Mohs 7H
5.Brightness: 100～1000 nits (optional)
6.Full lamination and AG anti-glare treatment (optional)
1.AFC equipment
2.Self-checkout & cashless terminals
3.Outdoor/semi-outdoor kiosks
4.Construction machinery, vehicle-mounted industrial HMI
5.Outdoor industrial control panels
| Technical Specification | |
| LCD | |
| Model Name | AMG-19OPTE01T3 |
| Screen Size | 19" |
| Active Display Area(mm) | 376.32(H)x301.06(V) |
| Pixel Pitch(mm) | 0.294(H)x0.294(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 1280x1024 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M |
| Brightness | 1000nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 170(H);160(V) |
| Response Time（Typ.Tr+Tf） | 10ms |
| Optional | |
| Touch Screen | PCAP Touch(10 points) |
| Light Sensor | Support |
| Tempered glass | Support |
| I/O Interface | |
| Signal Connector | VGA/DVI/HDMI/Audio |
| Power Input | DC 12V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 429.4*357.4*23 |
| Environmental | |
| Operating Temperature | -30~85℃（non-condensation） |
| Storage Temperature | -30~85°C（non-condesation） |
| Relative Humidity | 5~90(% RH) |
