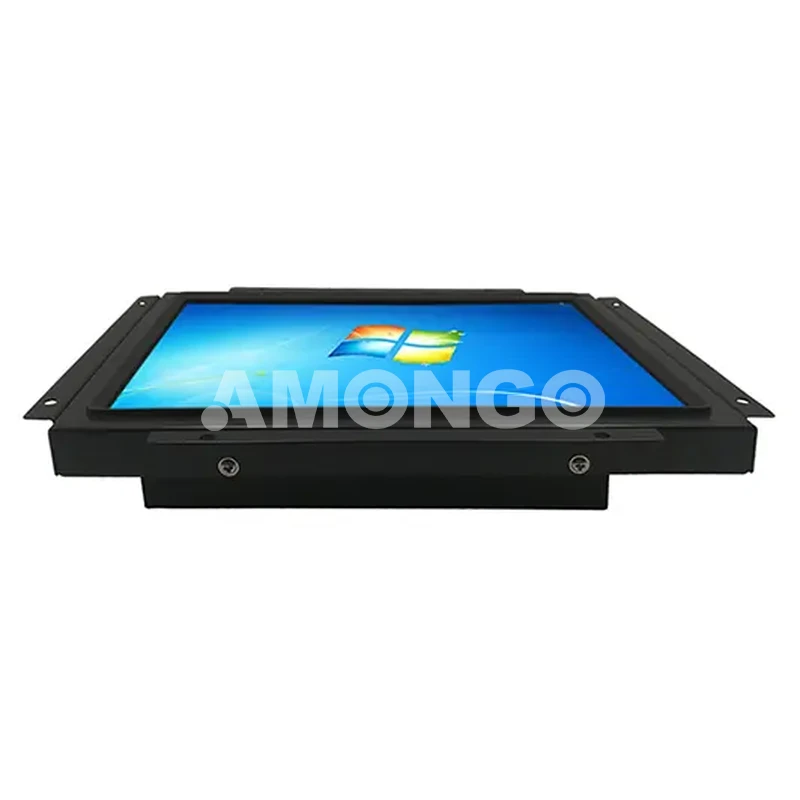

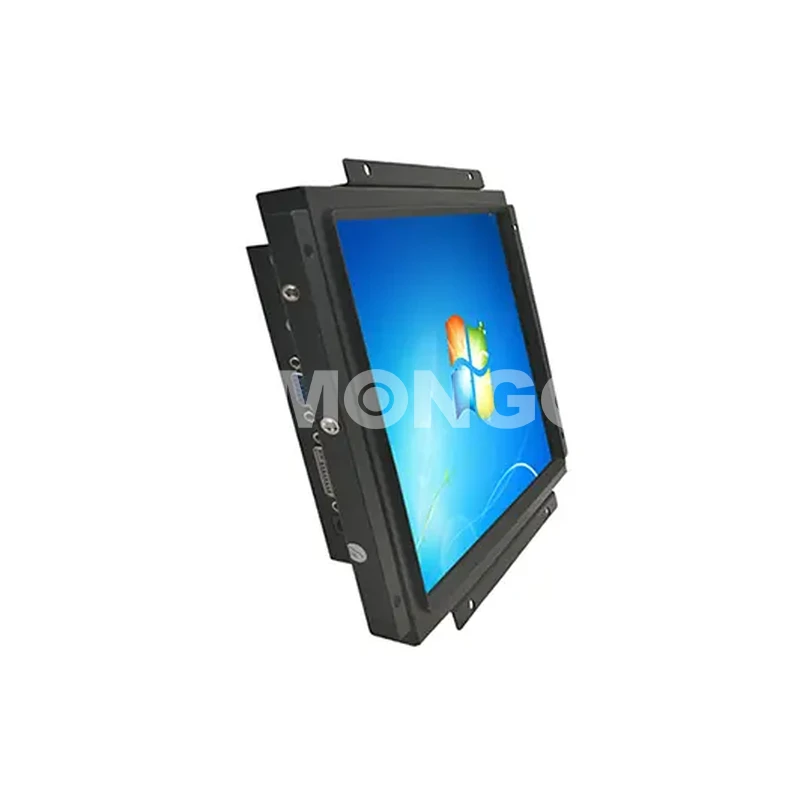

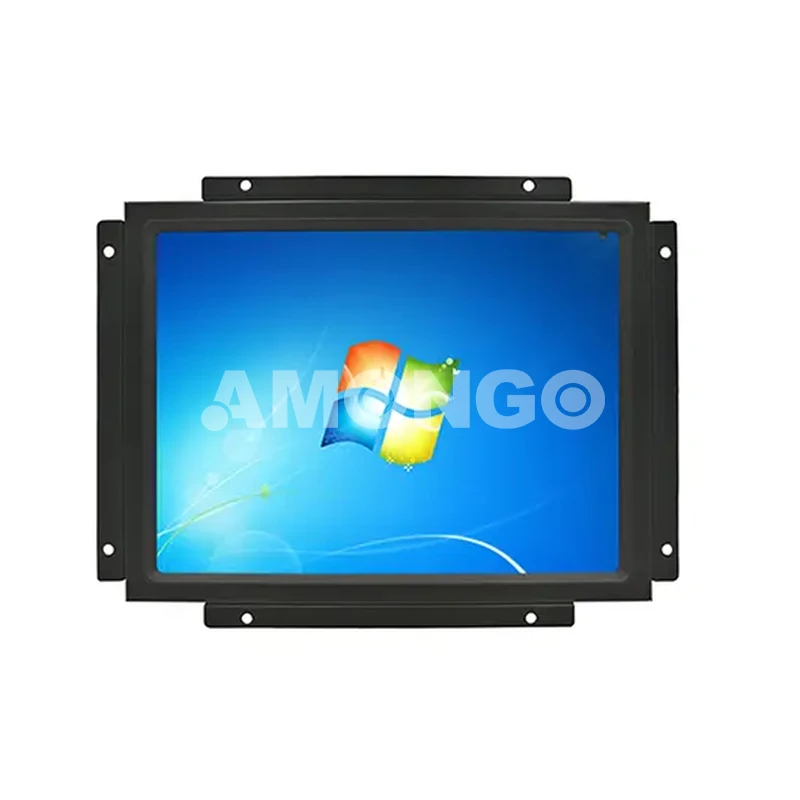

This 10.4-inch Industrial Rack Mount LCD Display for Harsh Environments.
Key features
·Touchscreen options: PCAP, resistive.

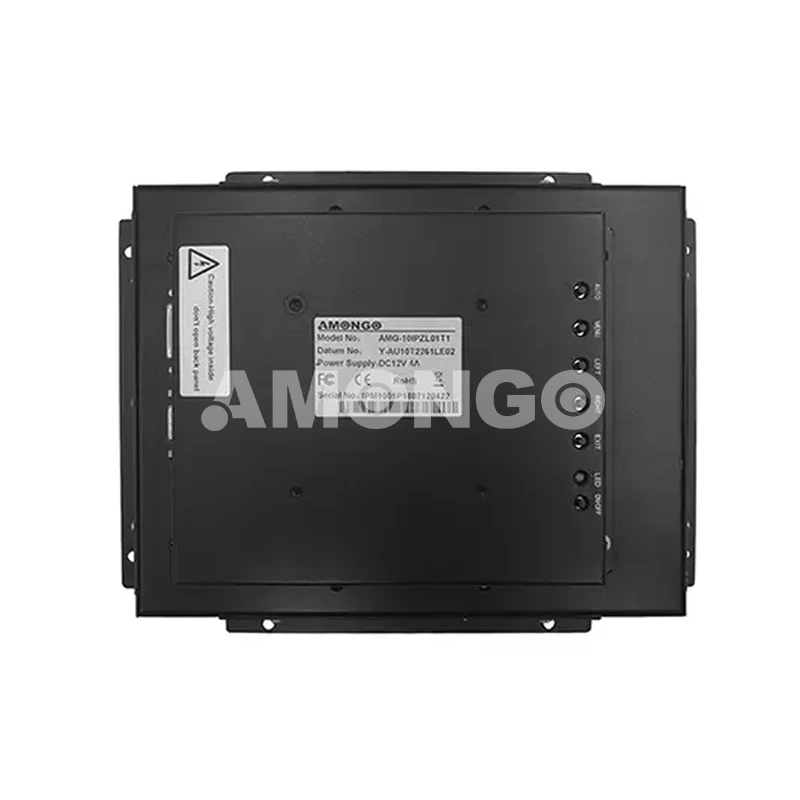

·Rear VESA mounting holes.
·Ideal for consoles & control centers.
·Built with industrial components.
·Reliable 24/7 operation.
Typical applications
·Industrial Equipment
·Railway etc
| Specification | |
| Screen Size | 10.4" |
| Active Display Area(mm) | 212.7(H)x159.4(V) |
| Pixel Pitch(mm) | 0.264(H)x0.264(V) |
| Display Mode | Normally white |
| Display Resolution(pixel) | 800X600 |
| Contrast Ratio | 800:1 |
| Display Color | 16.7M |
| Brightness | 300nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 130(H)x140(V) |
| Response Time(Typ.Tr+Tf) | 30ms |
| Touch Screen | Optional |
| Signal Connector | VGA/DVI |
| Power Input | DC 12V |
| Operating Temperature | -20～70℃ |
| Storage Temperature | -30～80℃ |
| Relative Humidity | 5(%RH)～90(%RH) |
