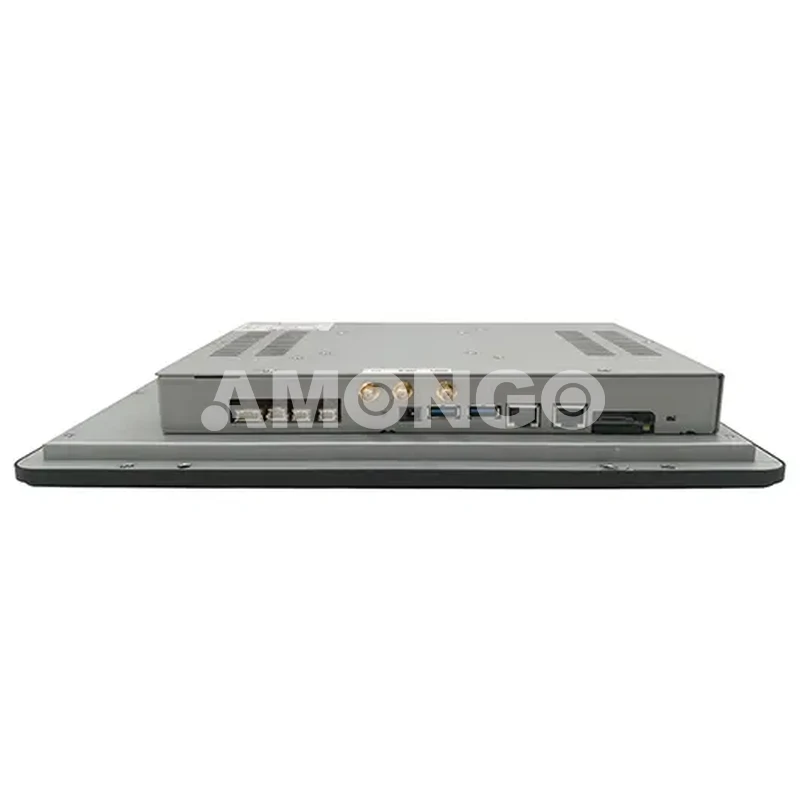

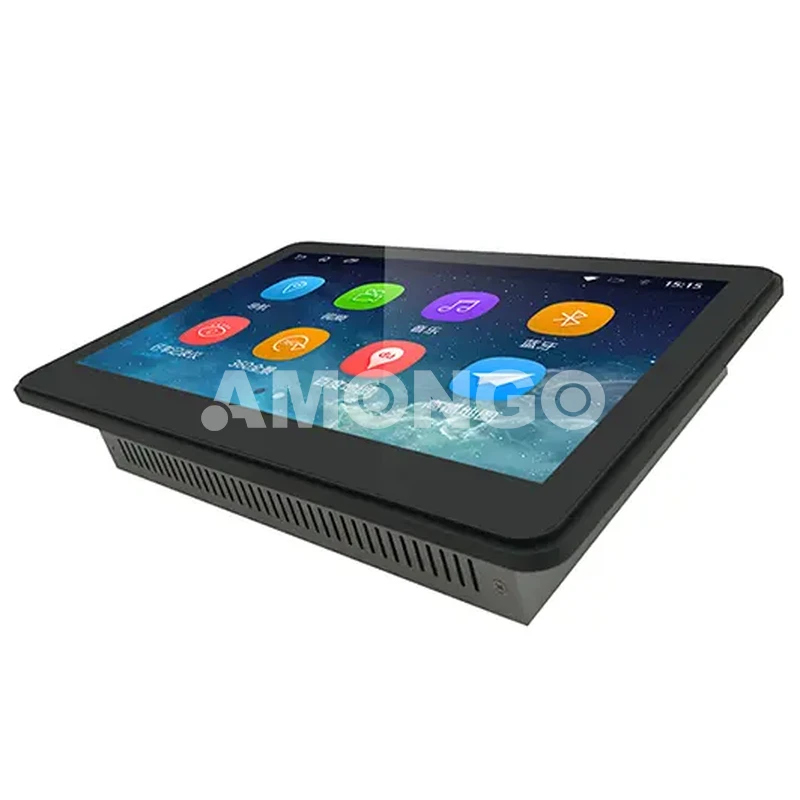

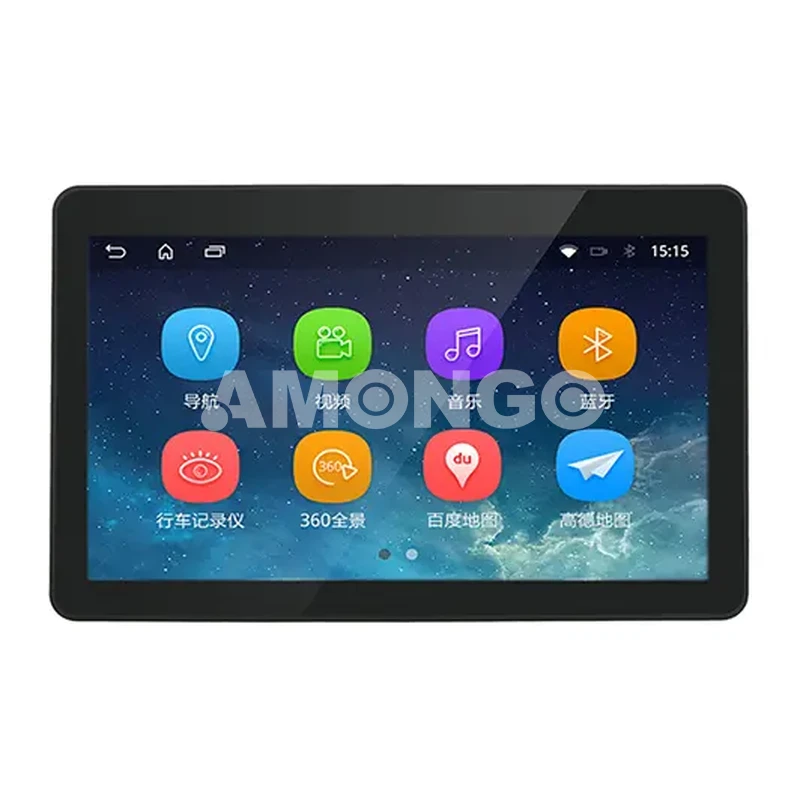

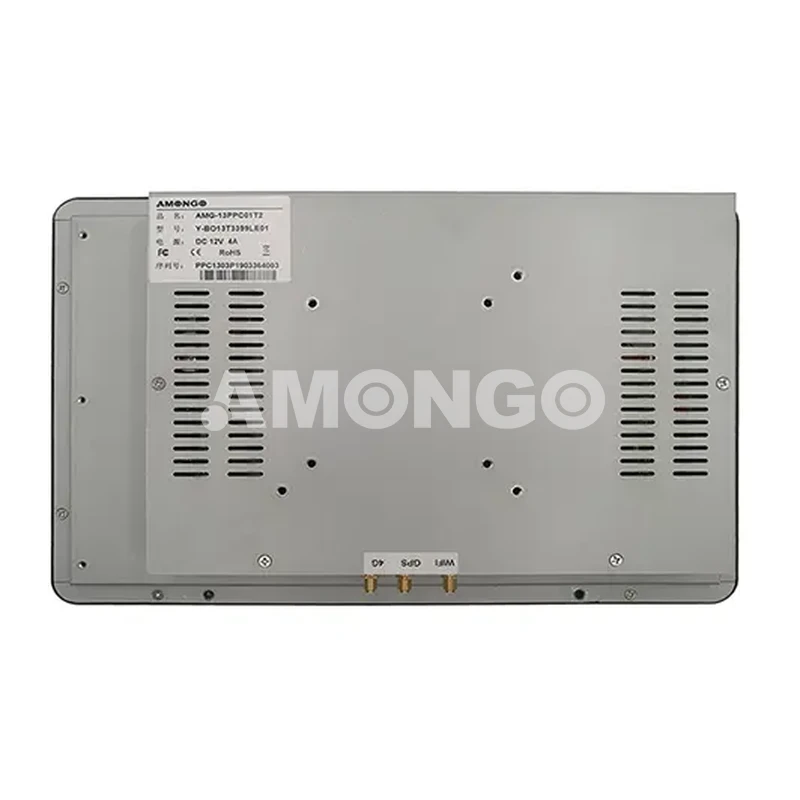

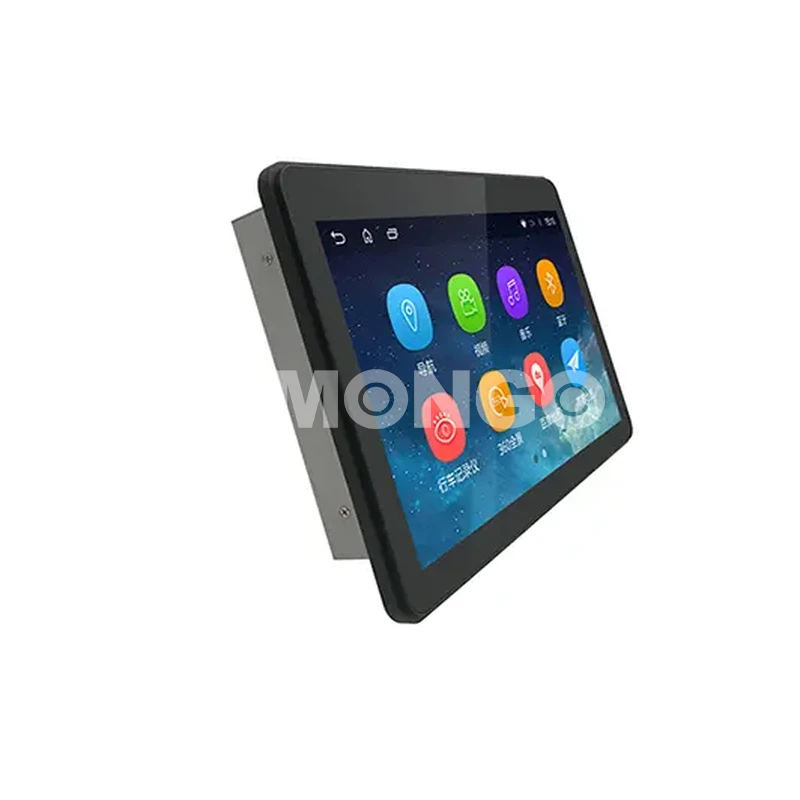

The 13.3 inch industrial all in one computer AMG-13PPC01T2 customized by Amongo is widely installed in different applications with the following features:
High quality LCD panels with perfect image effect and wide view angles;
Latest Android OS, supporting Ethernet / Wi-Fi / Bluetooth / 4G network;
Full flat surface design to support front IP65 waterproof, dust proof and vandal proof with tempered glass;
Stable quality, high reliability to ensure the long time operation during bad environment;
Suitable solutions for all the projects related with AI and IoT ;
·PCAP multi-touchscreen
·Convex full flat fillet design
·IP65 waterproof, dust-proof, vandal-proof
·Supprot 4G/WiFi/ GPS /Ethernet
·Android 7.1 OS
·In-Vehicle Navigation & Entertainment
·IoT Smart Gateway / Control Hub
·Industrial HMI / Interactive Terminal
·Digital Signage & Multimedia Display
·Vandal-proof Public Self-service Kiosk
| Screen Size | 13.3" |
| Active Display Area(mm) | 293.76(H)x165.24(V) |
| Pixel Pitch(mm) | 0.153(H)x0.153(V) |
| Display Mode | Normally Black |
| Display Resolution(pixel) | 1920x1080 |
| Contrast Ratio | 600:1 |
| Display Color | Normally Black |
| Brightness | 220nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 160(H);160(V) |
| Response Time(Typ.Tr+Tf) | 30ms |
| Touch Screen | PCAP Touch(10 points) |
| Operating Temperature | 0~50℃(non-condensation) |
| Storage Temperature | -20~60℃(non-condensation) |
| Relative Humidity | 5(%RH)~90(%RH) |
| CPU | RK3399 Dual Cortex A72+Quad core A53 64bit CPU |
| RAM | 2GB(4GB Optional) |
| EMMC | 16GB( 8 / 32 / 64GB Optional) |
| OS | Android 7.1 |
| USB ports | 2 x USB 3.0 |
| LAN | 4G/3G, 2 x Ethernet, WiFi, GPS Support |
| SD Card | Support |
| LED ports | 2 x LED |
| Speaker port | 1 x Speaker |
| Tel port | 1 x Telephone |
