An open frame monitor is a display module designed to be built into a kiosk, ATM, control cabinet or custom equipment enclosure. Unlike a fully enclosed desktop monitor, an open frame LCD monitor allows the system integrator to define the bezel, mounting structure and external housing.
When selecting an open frame LCD display, compare the following specifications before confirming the installation design:
| Selection Factor | What to Confirm |
| Screen Size and Resolution | Available space, viewing distance and required image detail |
| Touch Function | No touch, resistive touch, capacitive touch or other options |
| Mounting | Rear mounting, VESA mounting, snap-in installation or custom brackets |
| Interfaces | VGA, DVI, HDMI, USB and other host-device connections |
| Environment | Brightness, operating temperature, vibration and enclosure conditions |
Amongo’s industrial open frame LCD monitor range is designed for ATMs, kiosks, smart safes, parking terminals, industrial control systems and embedded equipment. These open frame LCD monitors can be integrated into a customer’s enclosure with different screen sizes, touch options, interfaces and mounting methods.
Use the comparison table below to select an open frame touch screen monitor or a non-touch display according to resolution, brightness, touch configuration, installation space and application requirements.
| Product | Resolution | Brightness | Touch Configuration | Typical Application |
| 6.5 Inch Open Frame LCD Monitor | 640 × 480 | 500 nits | Infrared touch | ATM, smart safe, parking terminal |

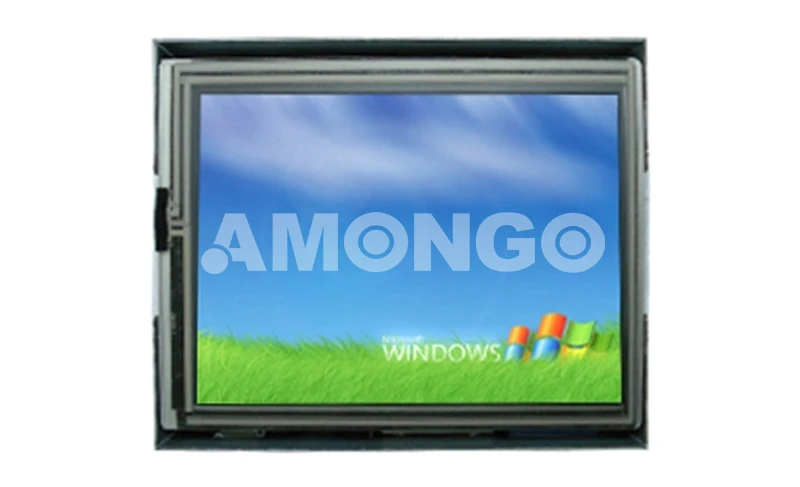

| 8.4 Inch Open Frame LCD Monitor | 800 × 600 | 200 nits | Not stated on the product page | Industrial control, testing instruments, power terminals |

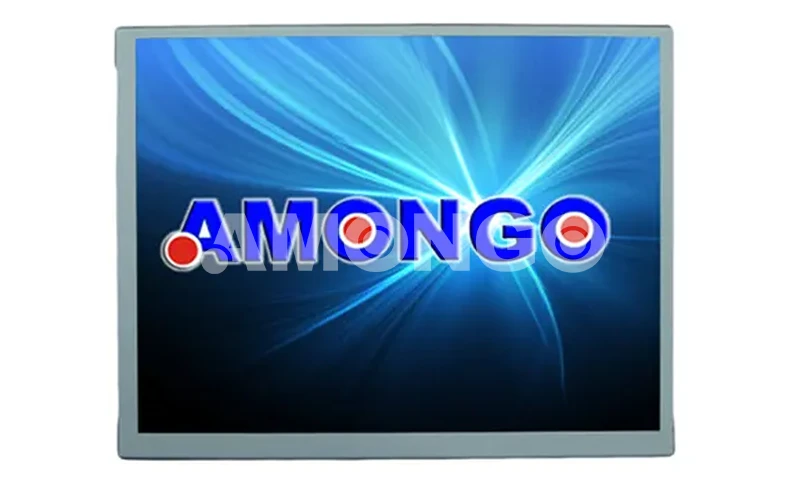

| 10.4 Inch Open Frame LCD Monitor | 800 × 600 | 300 nits | Not stated on the product page | Industrial control, equipment panels, medical and embedded terminals |

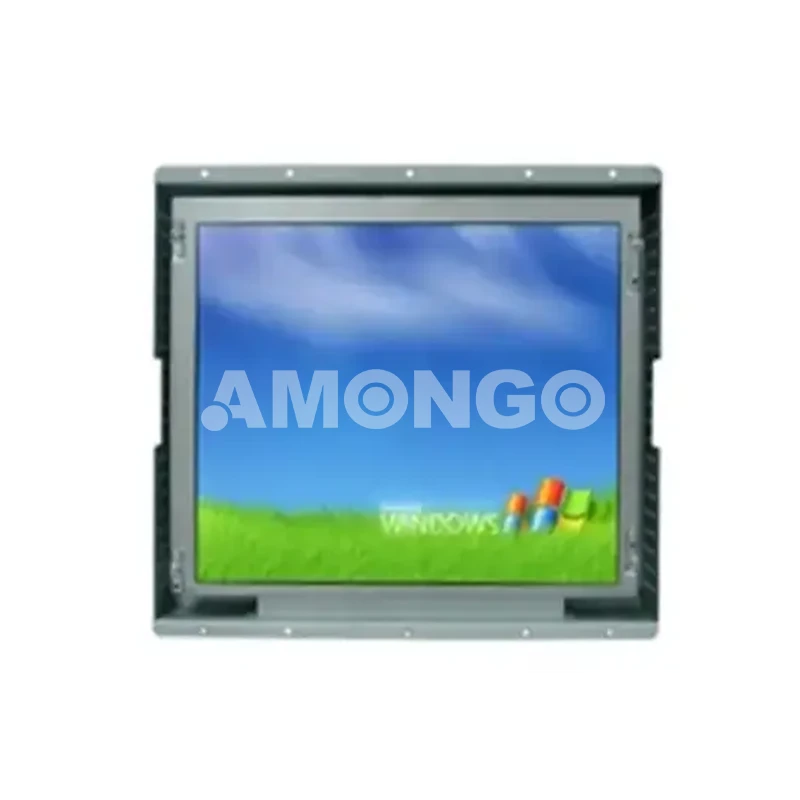

| 12.1 Inch Open Frame LCD Monitor | 800 × 600 | 400 nits | Capacitive Touch / No Touch | ATM and kiosk equipment |
| 15 Inch Open Frame LCD Monitor | 1024 × 768 | 250 nits | Resistive / IR / SAW / Capacitive optional | ATM and kiosk equipment |

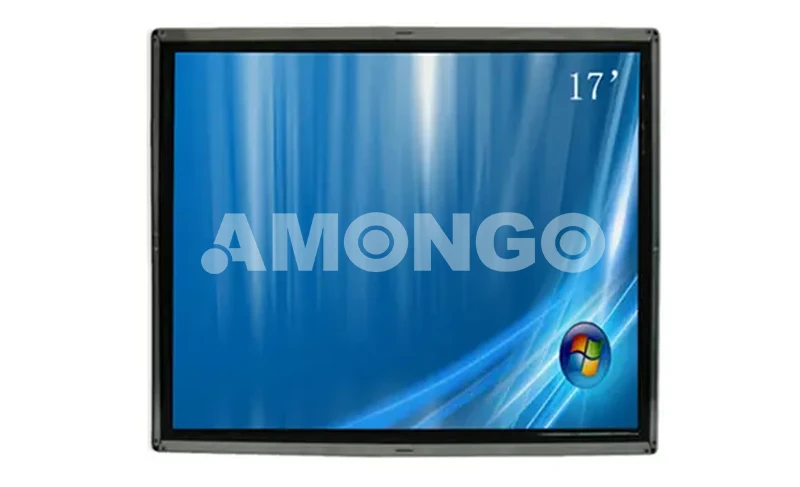

| 17 Inch Open Frame Monitor | 1280 × 1024 | 250 nits | Resistive touch shown in the summary | ATM and kiosk equipment |
| 18 Inch Open Frame LCD Monitor | 1366 × 768 | 250 nits | Touch optional | Industrial control, testing instruments, power terminals |
| 19 Inch Open Frame LCD Monitor | 1280 × 1024 | 250 nits | Non-touch shown in summary; optional touch mentioned in body | ATM, smart safe, parking terminal |
| 21.5 Inch Open Frame LCD Monitor | 1920 × 1080 | 250 nits | Touch optional | ATM, smart safe, indoor advertising, vending cabinets |
| 24 Inch Open Frame LCD Monitor | 1920 × 1080 | 250 nits | Touch optional | ATM, intelligent safe, indoor advertising, vending cabinets |
For a customized open frame LCD touch monitor or non-touch display, send us the required screen size, resolution, brightness, touch method, interfaces, mounting dimensions and quantity.
Request a Model Recommendation
What are the typical applications for Open Frame LCD Monitors?
Open Frame LCD Monitors are commonly used in applications such as digital signage, interactive kiosks, industrial control panels, gaming machines, retail displays, and transportation systems. Their flexible design makes them suitable for both commercial and industrial environments.
What sizes are available for Open Frame LCD Monitors?
Amongo offers Open Frame LCD Monitors in a wide range of sizes, typically from 6.5 inches to 70 inches, to accommodate different display requirements and installation spaces.
Can Open Frame LCD Monitors be customized?
Yes, Open Frame LCD Monitors can be customized in various ways, including bezel design, input ports, touch screen options, and mounting configurations. Customization helps meet specific application needs and integration requirements.
What are the key benefits of using an Open Frame LCD Monitor?
Key benefits include flexible mounting options, customizable design, high-resolution displays, durability, and versatility in various applications. The open frame design allows for easy integration into custom-built systems or enclosures.
Are Open Frame LCD Monitors suitable for outdoor use?
While some Open Frame LCD Monitors are designed to handle harsh conditions, standard models may not be suitable for outdoor use due to exposure to weather elements. For outdoor applications, consider models with enhanced weatherproofing or protective .
