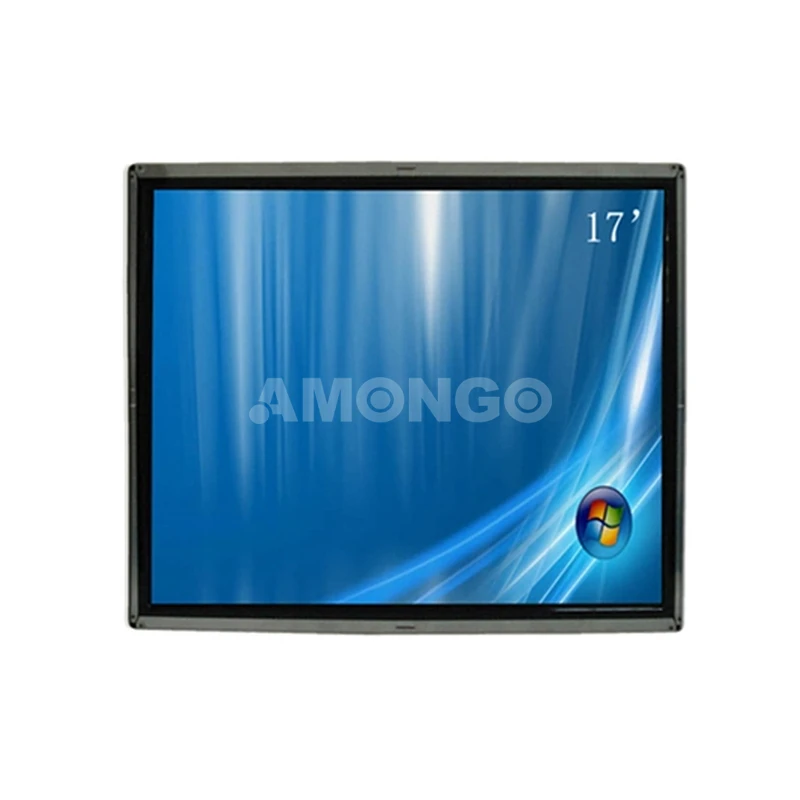

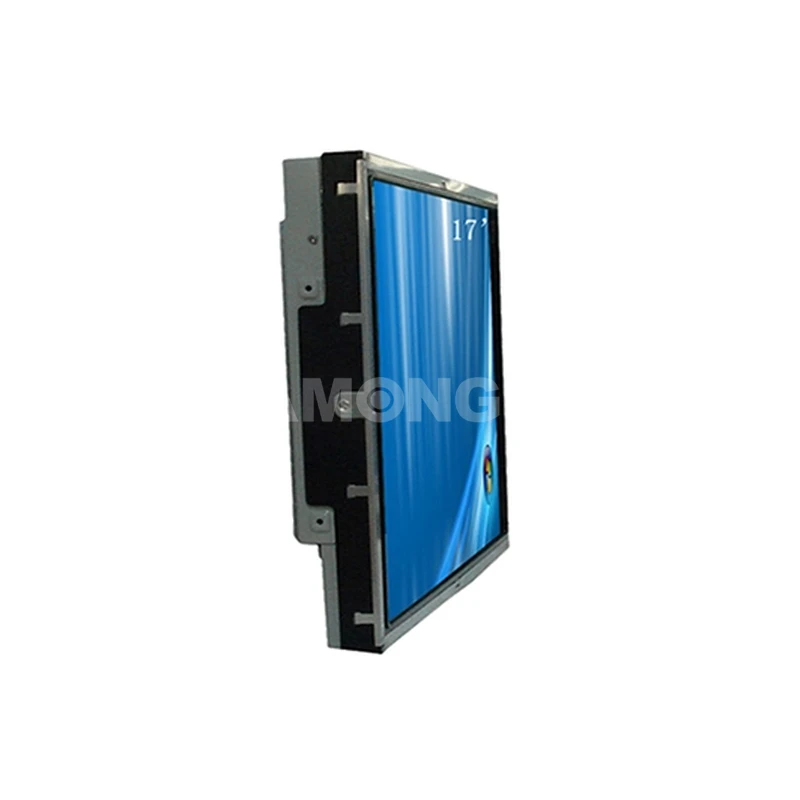

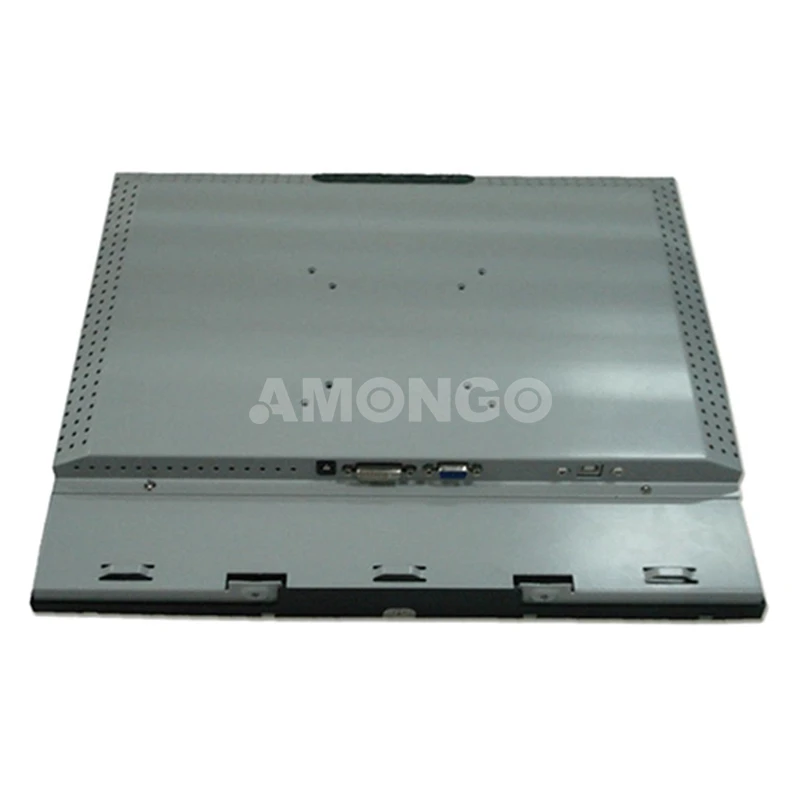

This 17-inch open frame monitor with 1280×1024 resolution, optional resistive touchscreen.
Key features
· Built with industrial-grade components for reliable operation
·Supports 24/7/365 continuous operation
·LED backlight, low power design
·Customizable
Typical applications
· Industrial automation & HMI
·Self-service kiosks & terminals
· Gaming / amusement machines
·Security & surveillance systems
·ATM
| Specification | |
| Screen Size | 17” |
| Active Display Area(mm) | 337.92 (H) x 270.33 (V) |
| Pixel Pitch(mm) | 0.264 (H) x 0.264 (V) |
| Display Mode | Normally white |
| Display Resolution(pixel) | 1280x1024 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M |
| Brightness | 250nits |
| Backlight | CCFL/LED |
| Viewing Angles(CR=10) | 170 (H); 160 (V) |
| Response Time(Typ.Tr+Tf) | 8ms |
| Touch Screen | Resistive |
| Signal Connector | VGA/DVI |
| Power Input | DC 12V |
| Operating Temperature | 0～50℃ |
| Storage Temperature | -10～70℃ |
| Relative Humidity | 5(%RH)～90(%RH) |
