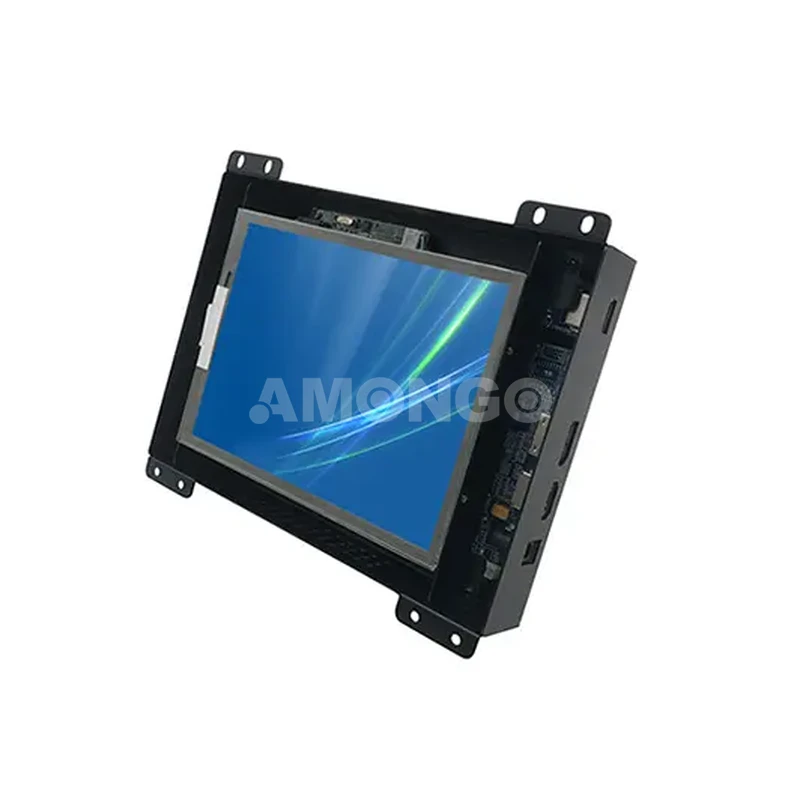

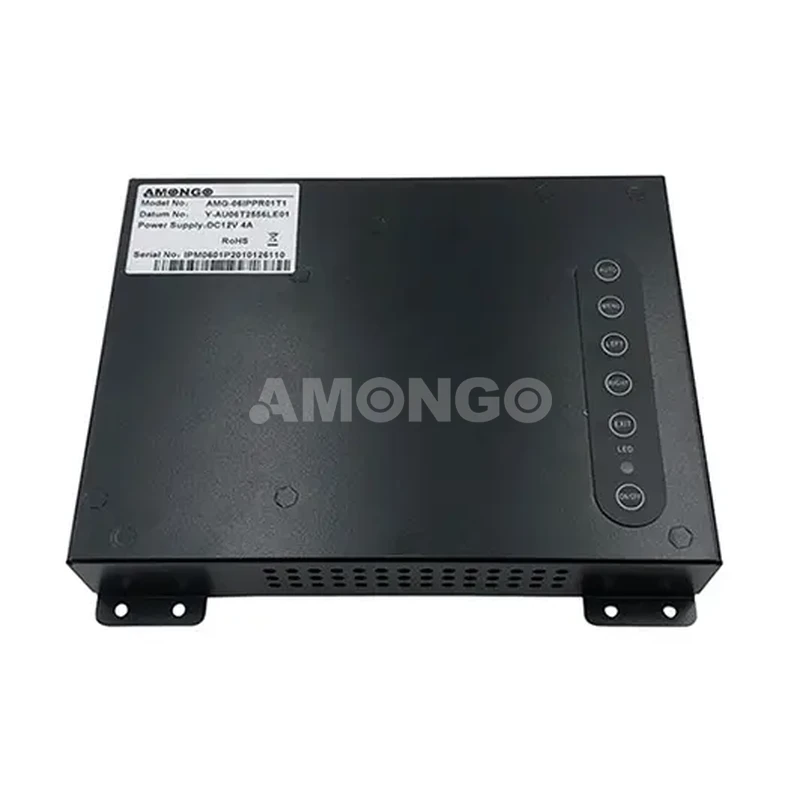

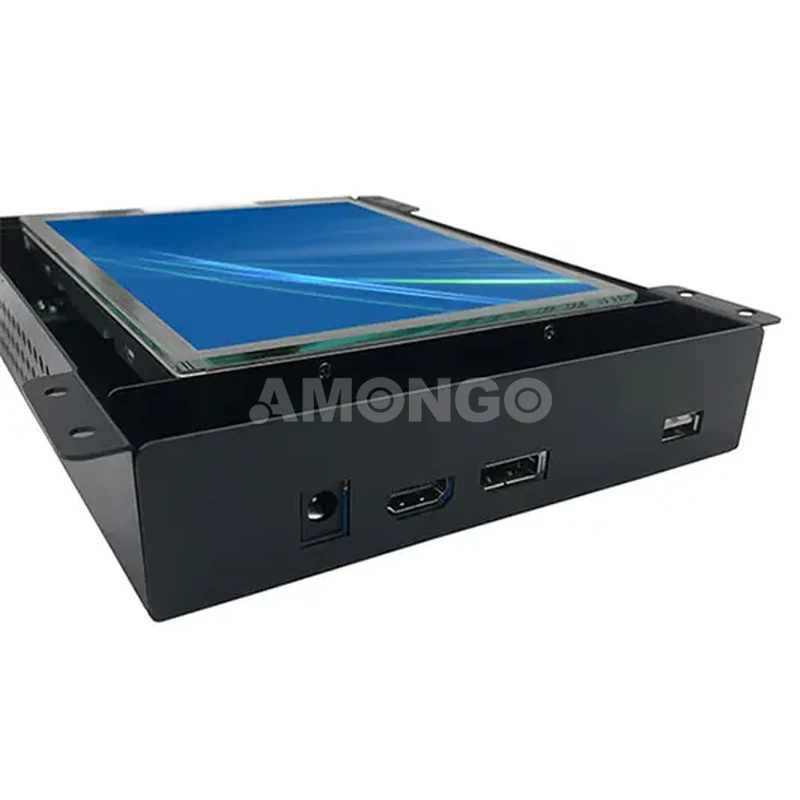

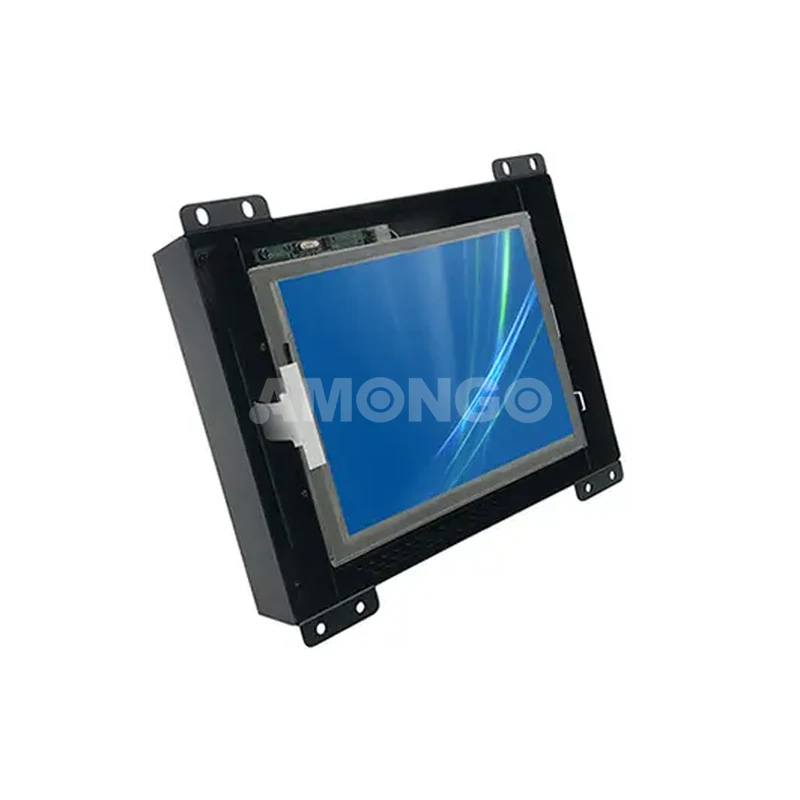

The open frame industrial grade rack mount LCD monitor AMG-06IPPR01T1 offered by Amongo is a good choice for application in demanding environment.
Key features
·Resistive touch(5 wire)
·Support embedded/ Sidebar installation
·High brightness/sunlight readable
·DP/HMDI port
·Stable quality through high reliability testing
Typical applications
·AFC
·Non-cash equipment
·Kiosk etc
| Specification | |
| Screen Size | 6.5" |
| Active Display Area(mm) | 132.48(H)x99.36(V) |
| Pixel Pitch(mm) | 0.207(H)x0.207(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 640x480 |
| Contrast Ratio | 600:1 |
| Display Color | 16.2M/262K |
| Brightness | 800nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 160(H);140(V) |
| Response Time(Typ.Tr+Tf) | 25ms |
| Touch Screen | Resistive touch(5 wire) |
| Signal Connector | HDMI/DP |
| Power Input | DC 12V |
| Touch Controller | USB |
| Operating Temperature | -30~80℃(non-condensation) |
| Storage Temperature | -30~80℃(non-condensation) |
| Relative Humidity | 5(%RH)～90(%RH) |
