6mm Tempered glass,PCAP Multi-touch
High brightness,Light Sensor
Surface IP65 Waterproof, Dust-proof
Surface hardness MoHs 7,scratch resistant
High Reliability and Long Lifetime
Application:
AFC/ Industrial equipment / Kiosk

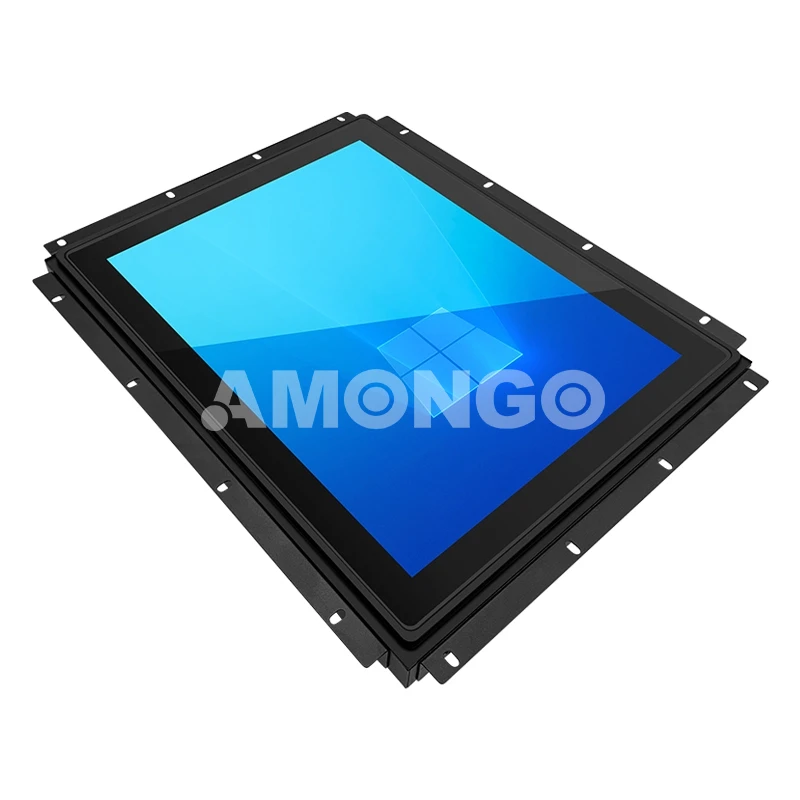

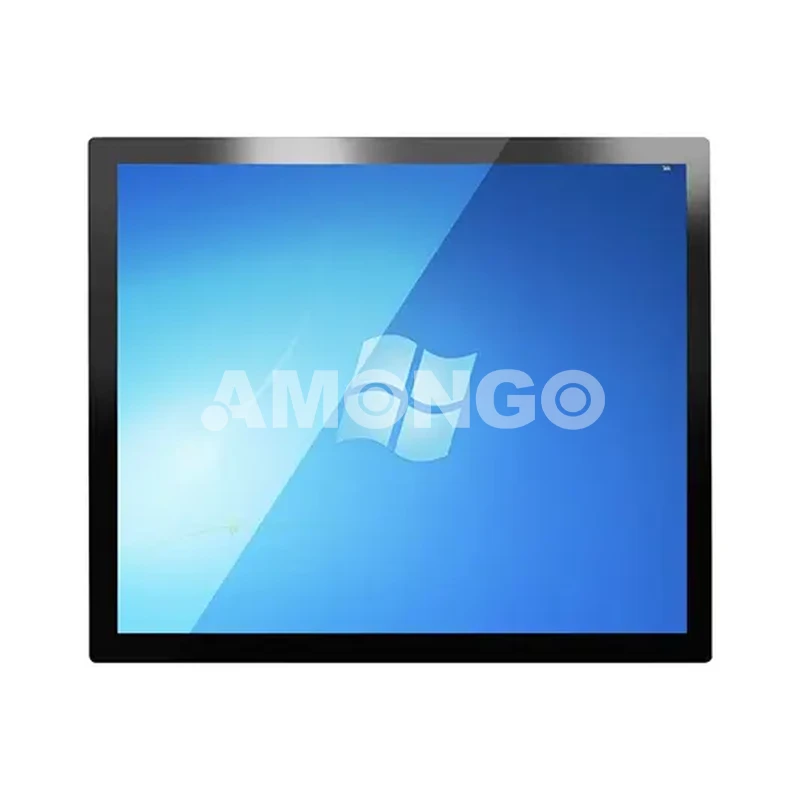

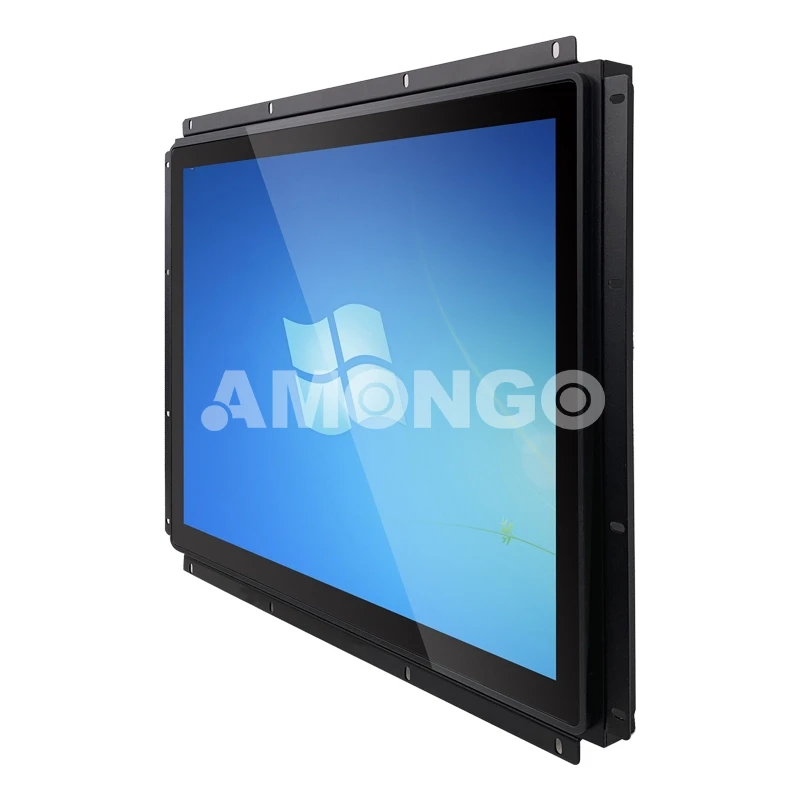

AMG-15OPTE01T4 is an 15-inch 1000 nits high-brightness industrial touch monitor with 1024×768 resolution. It supports optional 10-point PCAP capacitive touch and ambient light sensor. Featuring HDMI,VGA,DVI input, DC12V power, embedded and VESA mounting, it ensures visibility under strong light and is ideal for HMI integration of self-service and industrial equipment.
Visible under strong ambient light.
Enables automatic screen backlight adjustment.
High reliability and long lifespan, suitable for prolonged continuous equipment operation.
Surface impact resistance rating: IK08; Hardness: Mohs 7H
Brightness: 100～1000 nits (optional)
Full lamination and AG anti-glare treatment (optional)
Optical bonding （Optional）
Application:
AFC equipment
Self-checkout & cashless terminals
Outdoor/semi-outdoor kiosks
Construction machinery, vehicle-mounted industrial HMI
Outdoor industrial control panels
Supports embedded installation and VESA mounting
Waterproof and with excellent sealing performance
| Technical Specification | |
| LCD | |
| Model Name | AMG-15OPTE01T4 |
| Screen Size | 15" |
| Active Display Area(mm) | 376.32(H)x301.06(V) |
| Pixel Pitch(mm) | 0.297(H)x0.297(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 1024x768 |
| Contrast Ratio | 800:1 |
| Display Color | 16.7M |
| Brightness | 1000nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 160(H);160(V) |
| Response Time（Typ.Tr+Tf） | 8ms |
| Optional | |
| Touch Screen | PCAP Touch(10 points) |
| Light Sensor | Support |
| Tempered glass | Support |
| I/O Interface | |

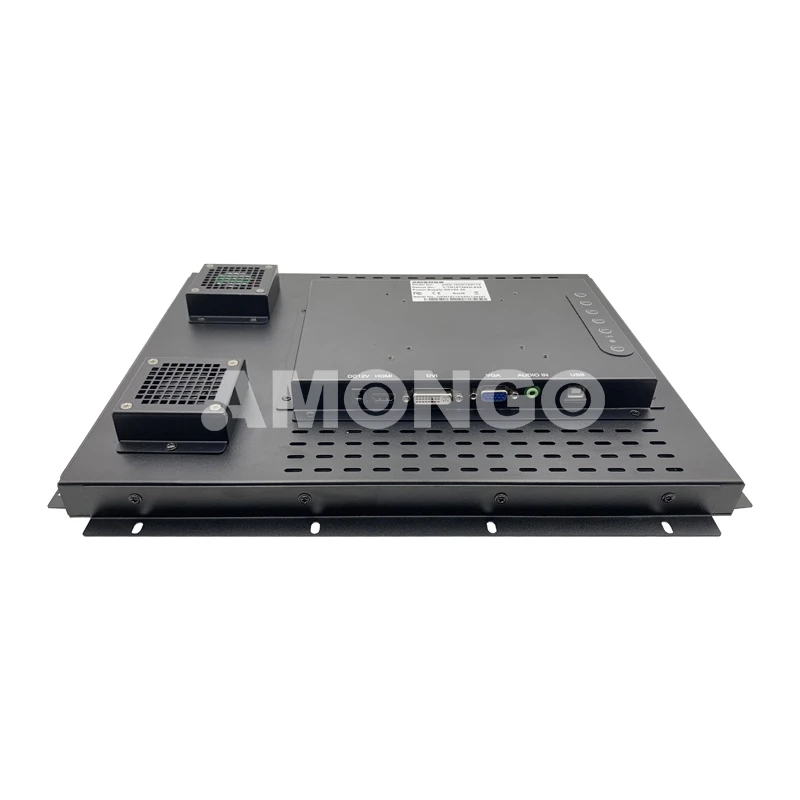

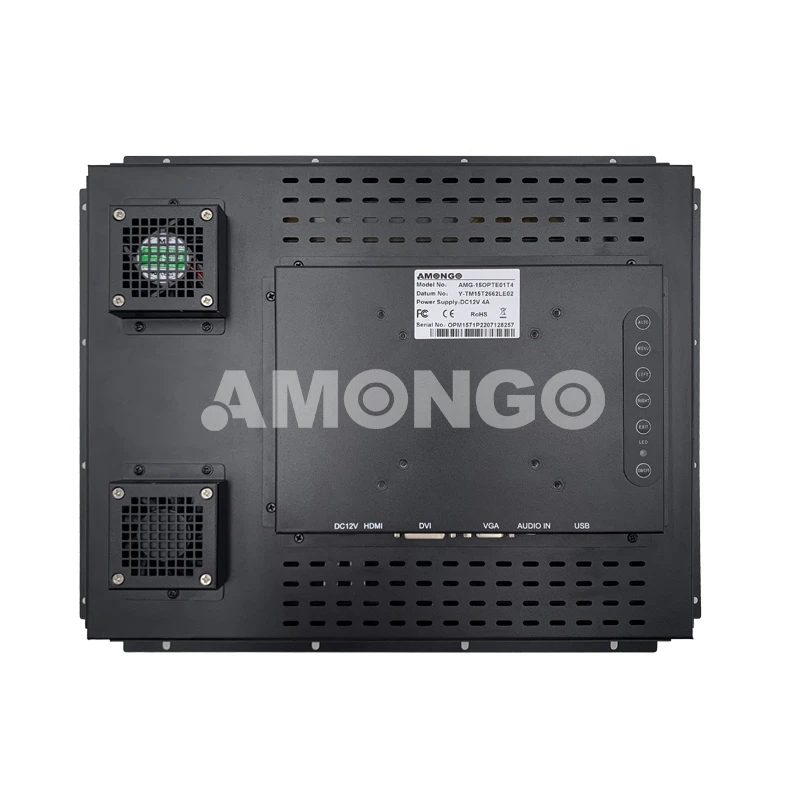

| Signal Connector | VGA/DVI-D/HDMI/Audio |
| Power Input | DC 12V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 395.6*322.6*23 |
| Environmental | |
| Operating Temperature | -20~70℃（non-condensation） |
| Storage Temperature | -30~80°C（non-condesation） |
| Relative Humidity | 5~90(% RH) |
