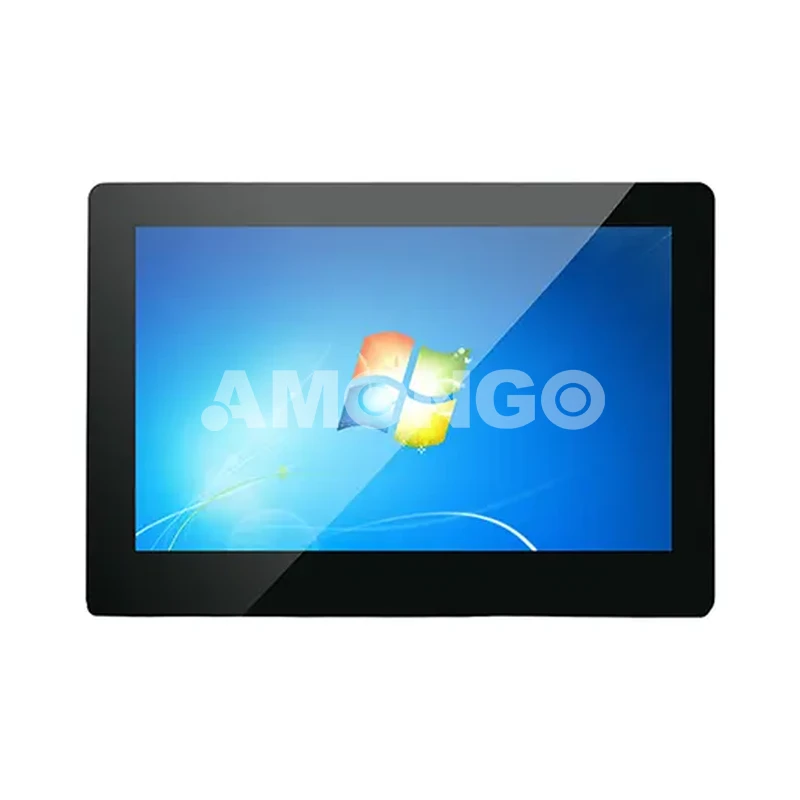

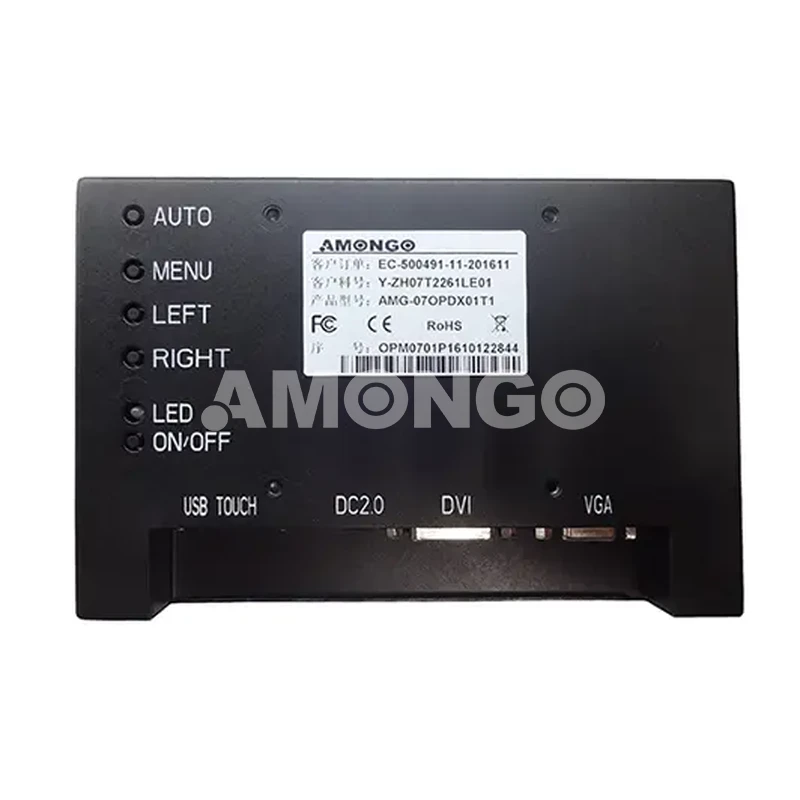

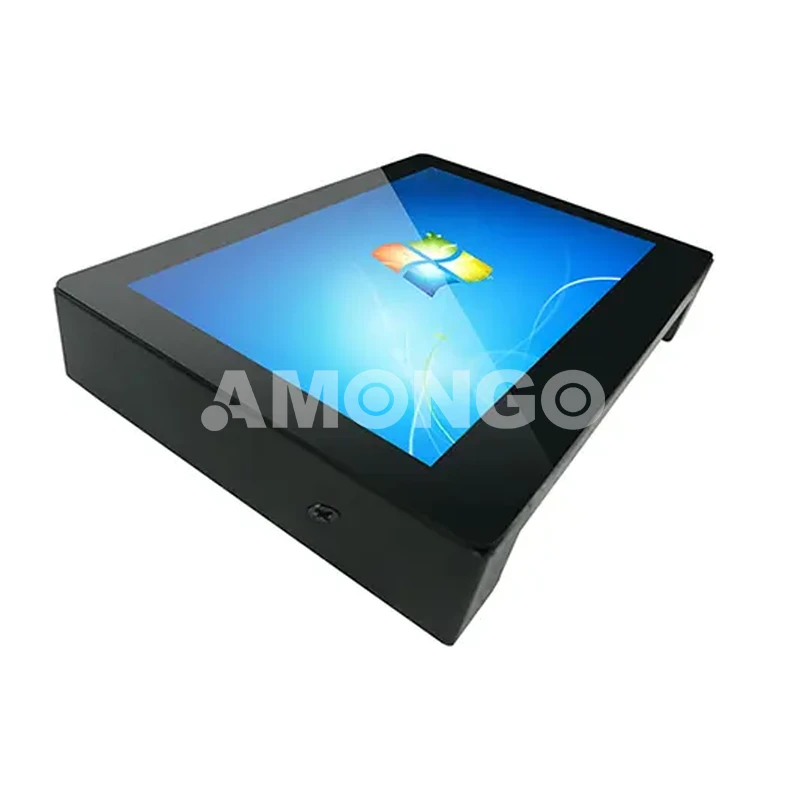

The industrial grade wall mount LCD monitor AMG-07OPDX01T1 made by Amongo features a full metal enclosure and mount using VESA holes in the rear of the design
Branded LCD panels with perfect image quality and wide viewing angles, industrial-grade components adopted for a reliable 24/7 long time running;
Wide range of touchscreen technologies including PCAP, Resistive, IR etc
Durable mechanical design to meet tough environmental conditions and requirements;
IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
Customization service available
Model Name | AMG-07OPDX01T1 |
Screen Size | 7" |
Active Display Area (mm) | 153.6(H)x90(V) |
Pixel Pitch (mm) | 0.15(H)x0.15(V) |
Display Mode | Normally White |
Display Resolution (pixel) | 1024x600 |
Contrast Ratio | 700:1 |
Display Color | PCAP TouchScreen |
Brightness (CD/㎡) | 600 |
Backlight | LED |
Viewing Angles (CR =10) | 160(H)x130(V) |
Response Time(Typ.Tr+Tf) | 25ms |
Signal Connector | VGA/DVI/USB |
Power Consumption | DC 12V |
Dimension(VxHxT) | 180x122x28.9 |
Operating Temperature | -20～60℃ |
Storage Temperature | -30～70℃ |
Relative Humidity | 5[%RH]～90[%RH] |
