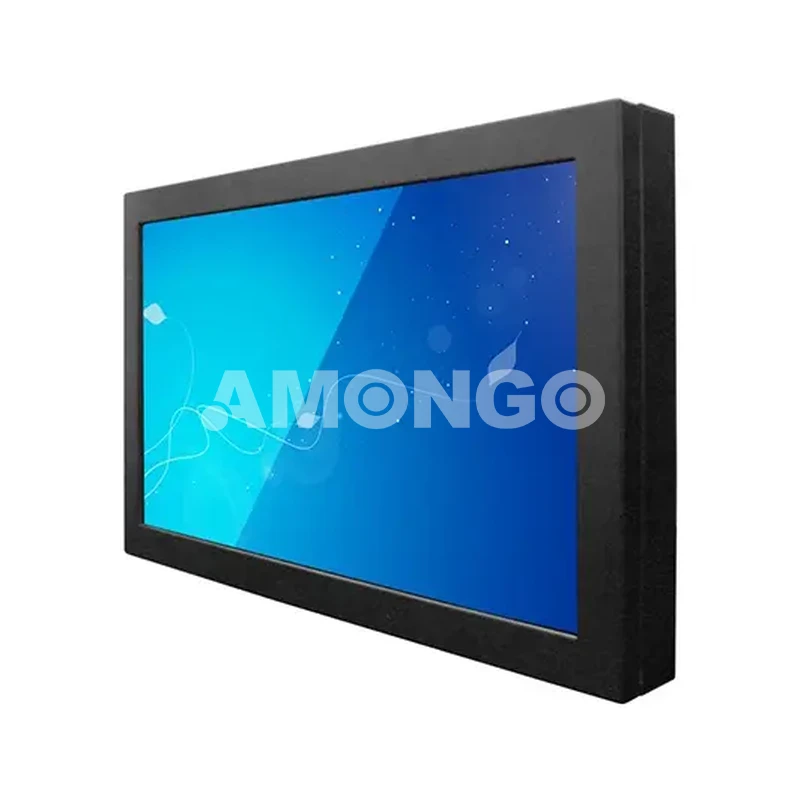

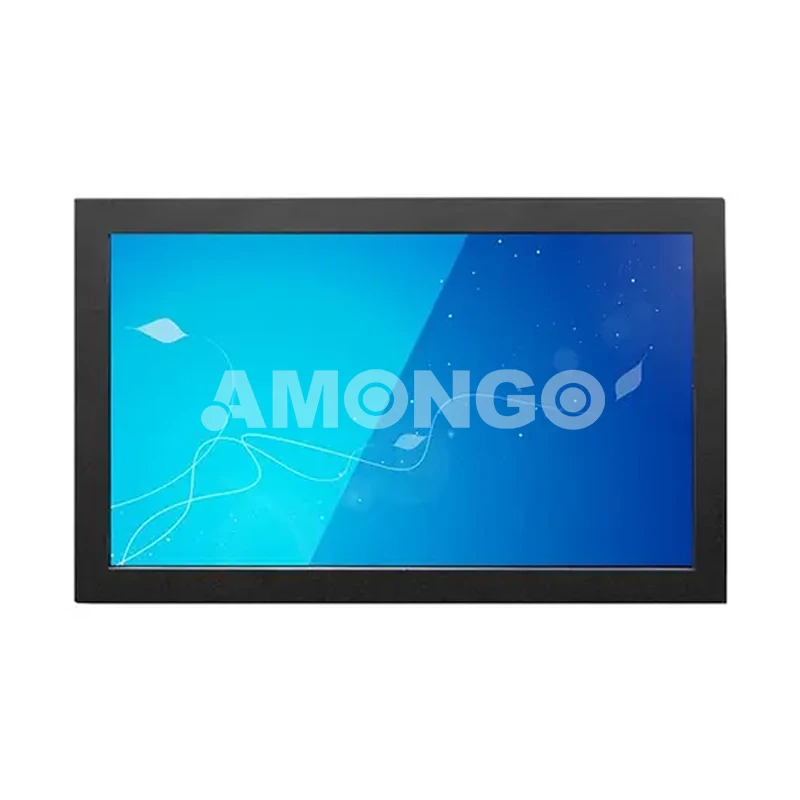

AMG-15IPAM01T1 is a high-resolution, high-color-gamut WLED backlight display module. With its ultra-thin design, the thickness is only 5.8mm, and it comes with an in-built LED driver circuit. It is suitable for embedded industrial control terminals, vehicle auxiliary screens, self-service inquiry machines and other industries.
Key features
1080P full high-definition standard resolution
TN ultra-fast response (Tr = 6ms / Td = 2ms)
Built-in LED energy-saving driving circuit
Multifunctional audio-video multi-interface borrowing input
Mounting & installation

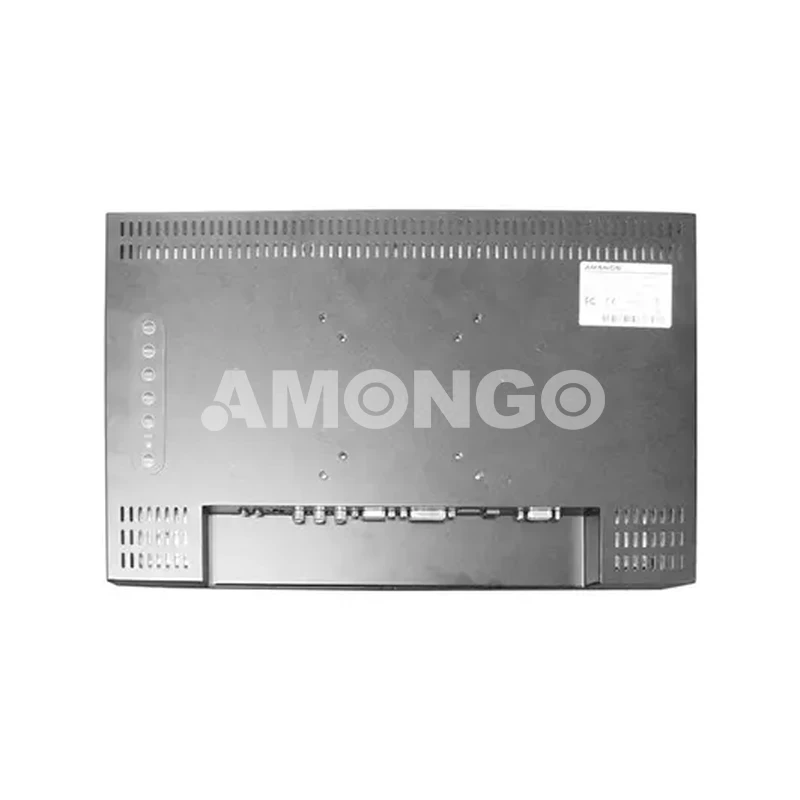

Supports standard VESA mounting holes. The back screws are locked in place and integrated. Multi-screen stacking stand.
Typical applications
Tourist attraction inquiry terminal
Laboratory / Medical small monitor screen
Store price tag display screen
Control cabinet embedded operation screen
| Technical Specification | |
| LCD | |
| Model Name | AMG-15IPAM01T1 |
| Screen Size | 15" |
| Active Display Area(mm) | 344.16(H)x193.59(V) |
| Pixel Pitch(mm) | 0.17925(H)x0.17925(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 1920x1080 |
| Contrast Ratio | 400:1 |
| Display Color | 16.7M |
| Brightness | 270nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 140(H);120(V) |
| Response Time（Typ.Tr+Tf） | 8ms |
| Optional | |
| Touch Screen | Resistive Touchscreen |
| Light Sensor | Optional |
| I/O Interface | |
| Signal Connector | VGA/DVI/AV/HDMI |
| Power Consumption | DC 12V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 390*240.1*42 |
| Environmental | |
| Operating Temperature | 0~50℃（non-condensation） |
| Storage Temperature | -20~60℃（non-condesation） |
| Relative Humidity | 5~90(% RH) |
