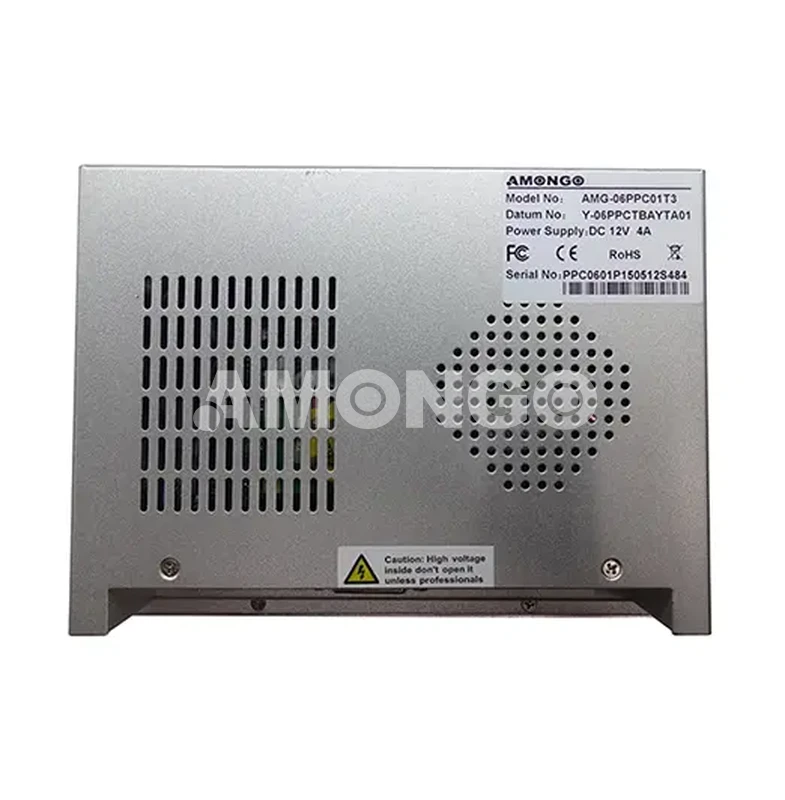

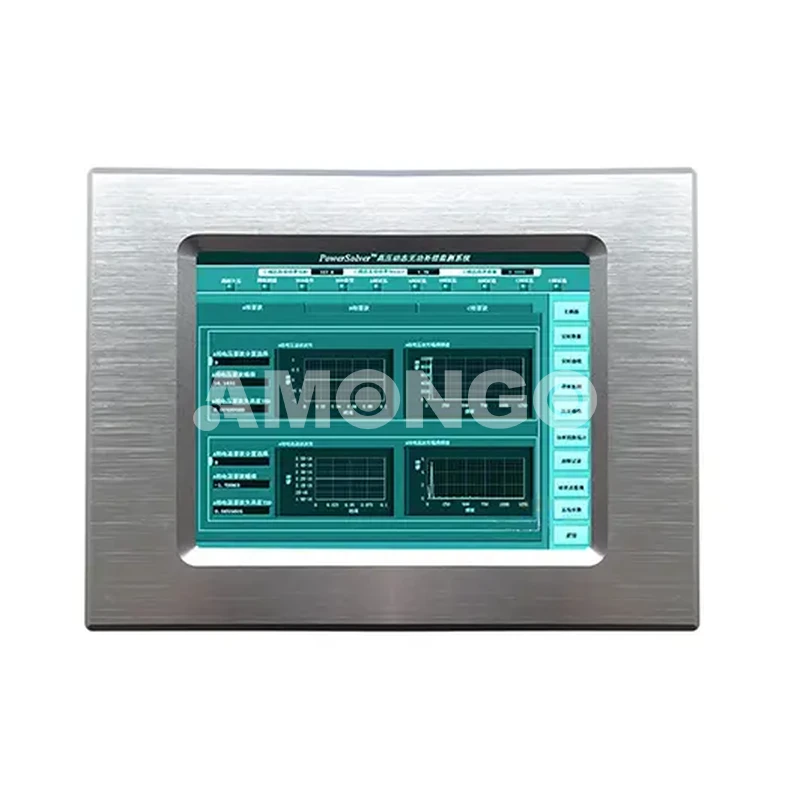

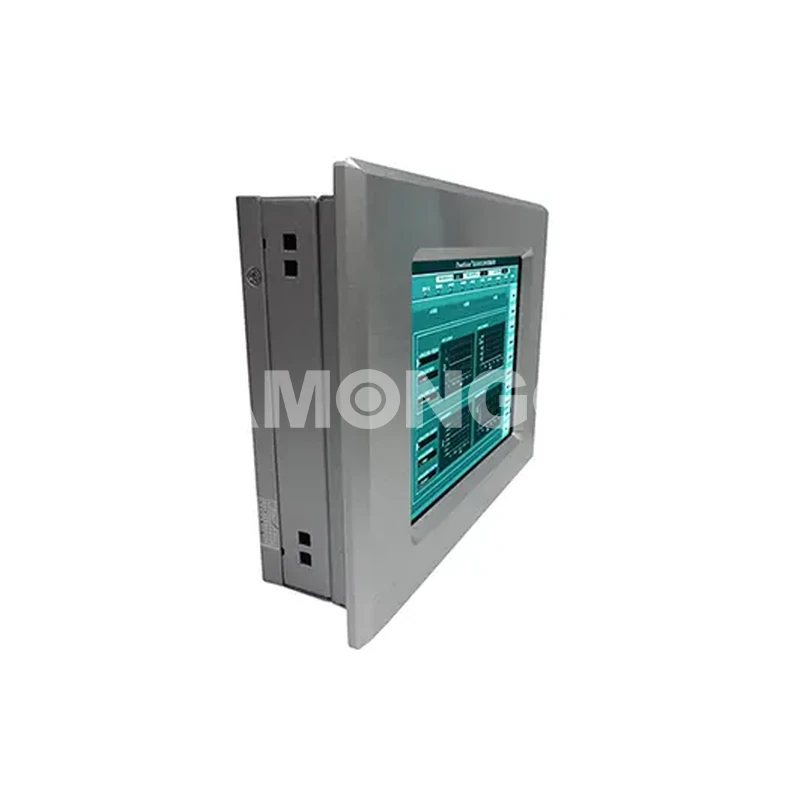

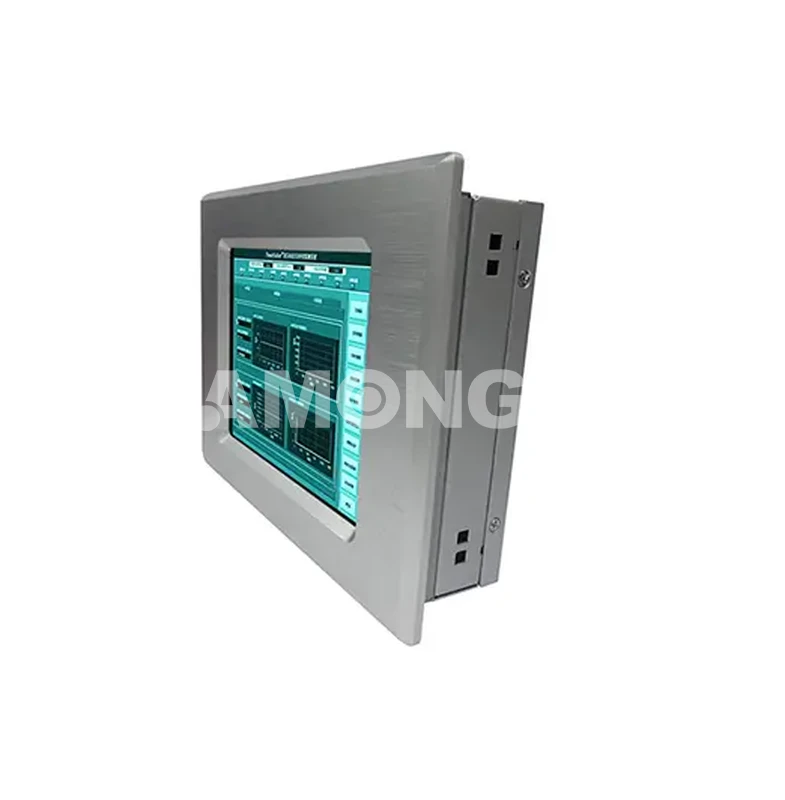

AMG-06PPC01T3 is a 6.5-inch compact embedded industrial tablet PC, equipped with Intel N2930 low-power quad-core processor. Adopting a stainless steel panel and slim embedded structure, it is standard-configured with a 4-wire resistive touch screen and 600nits high-brightness industrial display. Featuring dual Gigabit Ethernet ports, multiple serial ports and abundant USB interfaces, it supports stable operation within an ultra-wide temperature range of -30℃ to 80℃. Tailored for narrow control cabinets, vehicle-mounted equipment, outdoor measurement and control devices, and small production line stations, it serves as a mini human-computer interaction terminal.
Key features
6.5-inch compact body, ideal embedded all-in-one PC for narrow control cabinets and vehicle-mounted devices
600nits high-brightness screen for clear visibility under strong sunlight
4-wire resistive touch, operable with gloves, greasy and humid environments
9-24V wide voltage power supply, compatible with industrial and vehicle power systems
Ultra-wide temperature range of -30℃~80℃, ensuring stable operation in extreme cold and high-temperature environments
Mounting & installation
Supports embedded mounting
Typical applications
Control panels for small automated production lines, mini PLC consoles
Monitoring terminals for construction machinery and special vehicles
Outdoor environmental water quality & gas monitoring equipment
HMI for building automation and compact intelligent control cabinets
Logistics sorting terminals, industrial displays for laboratory testing instruments
Branded LCD panels with perfect image quality and wide viewing angles
High performance Intel processor, fast access hard drives, long-life power supplies;
Various touchscreen technologies, like PCAP, Resistive, IR etc.;
Rugged structure design with front IP65 aluminum bezel for waterproof;
Easy installation for panel mount or embedded mount;
Suitable used as operator panel for machine control;
Designed to endure extreme conditions like heat, cold, moisture, dust, vibrations, acids etc.
Model Name | AMG-06PPC01T3 |
CPU | Intel ® Bay Trail-M N2930 SOC Processor 1.83G |
Memory | DDR3L 1333MHz 4GB |
HDD | M-sata 32G |
DVI port | 1xDVI port |
COM ports | 4xCOM (optional) |
USB ports | 3xUSB2.0 (1xUSB 3.0) |
Ethernet ports | 2xRTL8111G PCI-E Gigabit LAN |
Audio | 1xLine-out port |
Display Size | 6.5" |
Active Display Area(mm) | 132.48(H)x99.36(V) |
Max Resolution | 640x480 |
Support Color | 16.2M/262K colors |
Luminance(CD/M2) | 600 |
Contrast Ratio | 600:1 |
Pixel Pitch (mm) | 0.207(H)x0.207(V) |
Display Mode | Normally White |
Viewing Angle | 160(H);140(V) |
Backlight | LED |
Type | Resistive Touchscreen |
Use connector | 4pin USB2.0 |
Input Voltage | DC 9-24V IN |
Output Rating | 20W(max) |
Dimension(VxHxT) | 208x158x53 |
Operating Temperature | -30～80℃ |
Storage Temperature | -30～80℃ |
Relative Humidity | 5[%RH]～90[%RH] |
