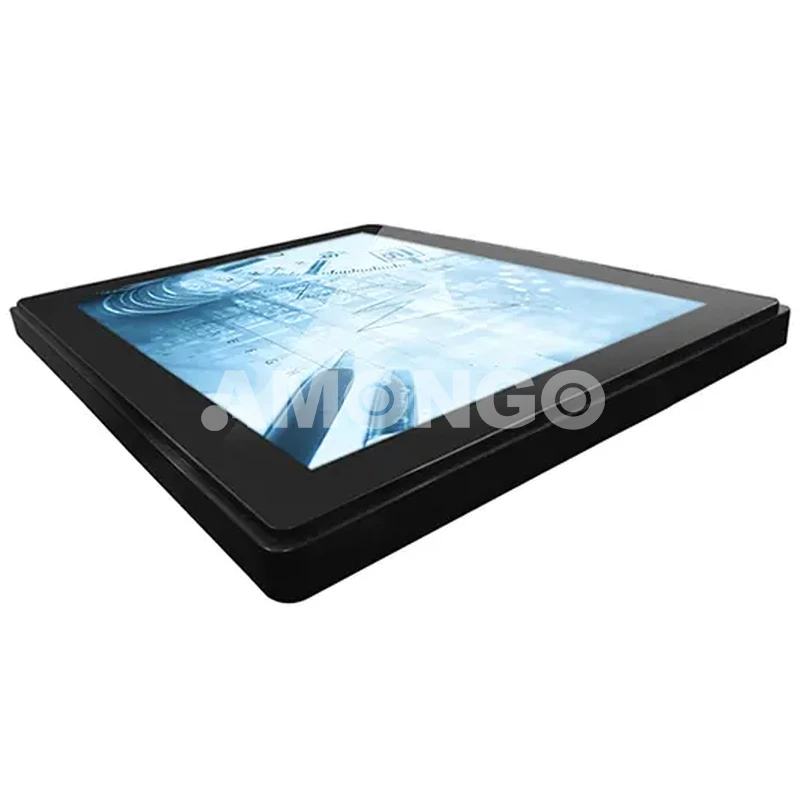

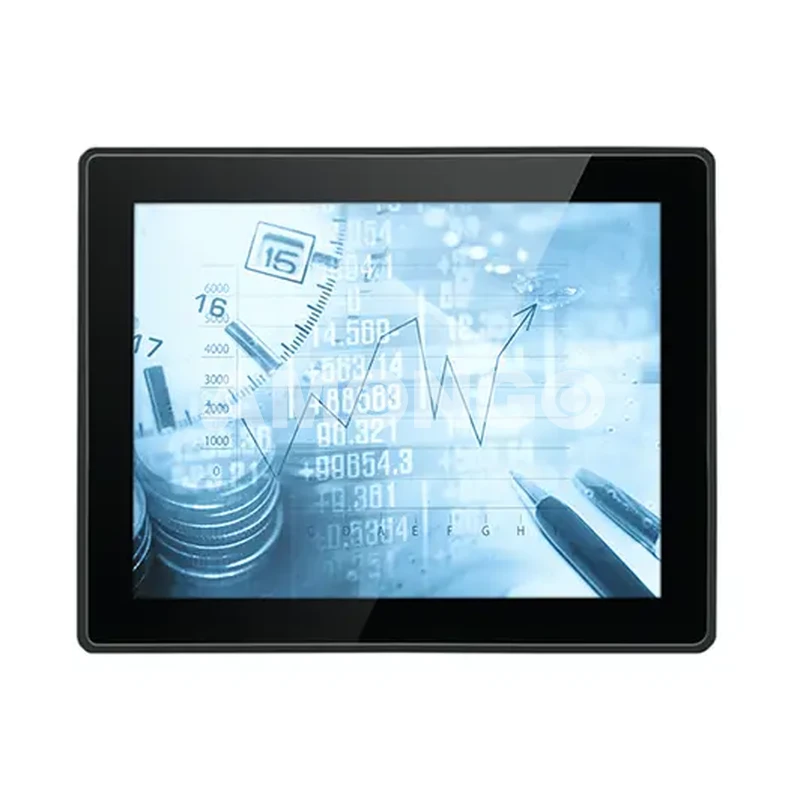

This 12.1-inch IP65 Waterproof, Convex Full Fillet PCAP Touchscreen,for Non-cash Equipment & Kiosk Applications
Key features
PCAP Multi-touch Screen
Convex full flat fillet design, Plastic mold frame
Surface IP65 waterproof, dust-proof, vandal-proof
Starting at low temperature, stable quality
High reliability and long lifetime
Typical applications
Non-cash equipment
Kiosk etc
| Specification | |
| Screen Size | 12.1" |
| Active Display Area(mm) | 245.76(H)x184.32(V) |
| Pixel Pitch(mm) | 0.24(H)x0.24(V) |
| Display Mode | Normally white |
| Display Resolution(pixel) | 800x600(1024x768 optional) |
| Contrast Ratio | 700:1 |
| Display Color | 16.7M |
| Brightness | 350nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 160(H);140(V) |
| Response Time(Typ.Tr+Tf) | 8ms |
| Touch Screen | PCAP Touch(10 points) |

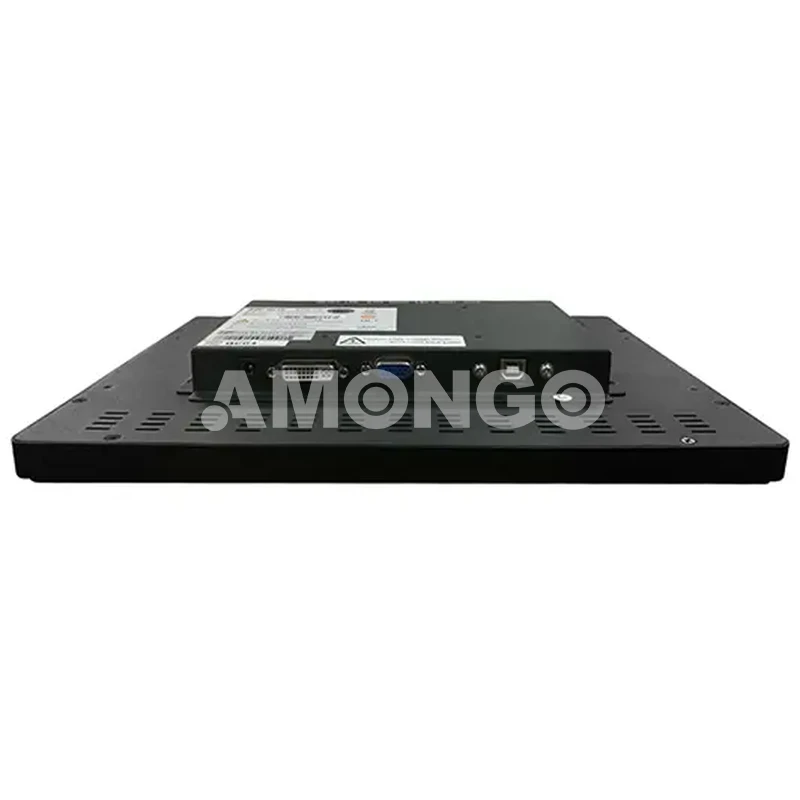

| Signal Connector | VGA/DVI-D |
| Power Input | DC 12V |
| Touch Controller | USB |
| Operating Temperature | -20~70℃(non-condensation) |
| Storage Temperature | -30~80℃(non-condensation) |
| Relative Humidity | 5(%RH)~90(%RH) |
