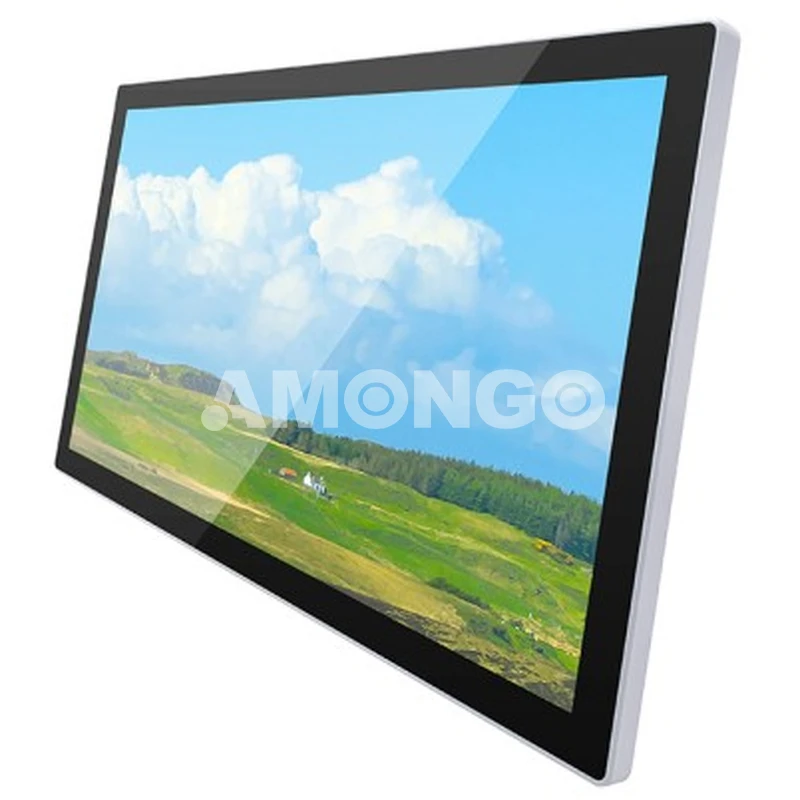

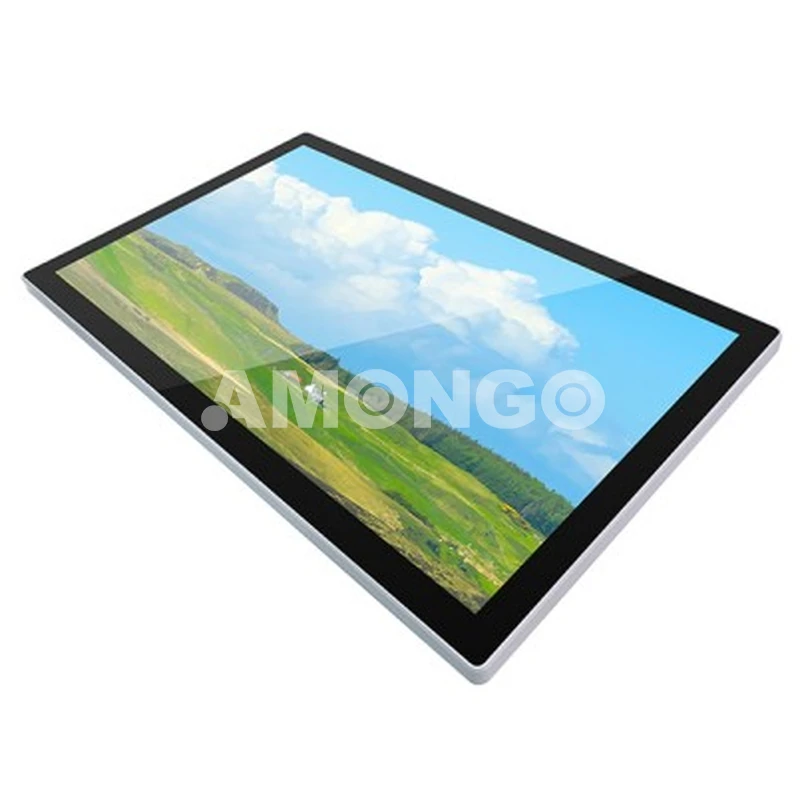

The AMG-21OPJH01T1 is a 21-inch full HD industrial touch monitor with optional 10-point PCAP capacitive touch. The front frame features IP65 dustproof and waterproof rating. Its full-flat surface is easy to clean and sanitize. Equipped with multiple video interfaces and capable of stable operation under wide temperature range, it is ideal for integration into medical self-service terminals, interactive digital signage and other equipment.
Key features
Full-flat design ensures smooth operation experience.
Dust-proof and vandal-proof structure, easy for cleaning and disinfection.
Supports multiple signal interfaces with DC12V power input, convenient for system integration.
Excellent wide-temperature performance, capable of long-term continuous operation.
Mounting & installation
Flush Mounting: Embedded with panel flush to cabinet, widely adopted for self-service terminals.
Wall Mounting: Fixed on walls via wall brackets for interactive information display.
Stand Mounting: Equipped with floor stand to function as independent inquiry kiosk.
Typical applications
Hospital self-service terminal
Self-service registration terminal
Interactive digital signage
Medical report printing terminal
| Technical Specification | |
| LCD | |
| Model Name | AMG-21OPJH01T1 |
| Screen Size | 21.5" |
| Active Display Area(mm) | 476.64 (H) x 268.11 (V) |
| Pixel Pitch(mm) | 0.248 (H) × 0.248(V) |
| Display Mode | Normally Black |
| Display Resolution(pixel) | 1920x1080 |
| Contrast Ratio | 3000:01:00 |
| Brightness | 250nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 178(H);178(V) |
| Response Time(Typ.Tr+Tf) | 18ms |
| Optional | |
| Touch Screen | PCAP Touch(10 points) |
| Light Sensor | Optional |
| I/O Interface | |
| Signal Connector | VGA/DP/ HDMI/Audio |
| Power Consumption | DC 12V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 519.6*316.2*43.3 |
| Environmental | |
| Operating Temperature | 0~50℃(non-condensation) |
| Storage Temperature | -20~60℃(non-condensation) |
| Relative Humidity | 5~90(%RH) |
