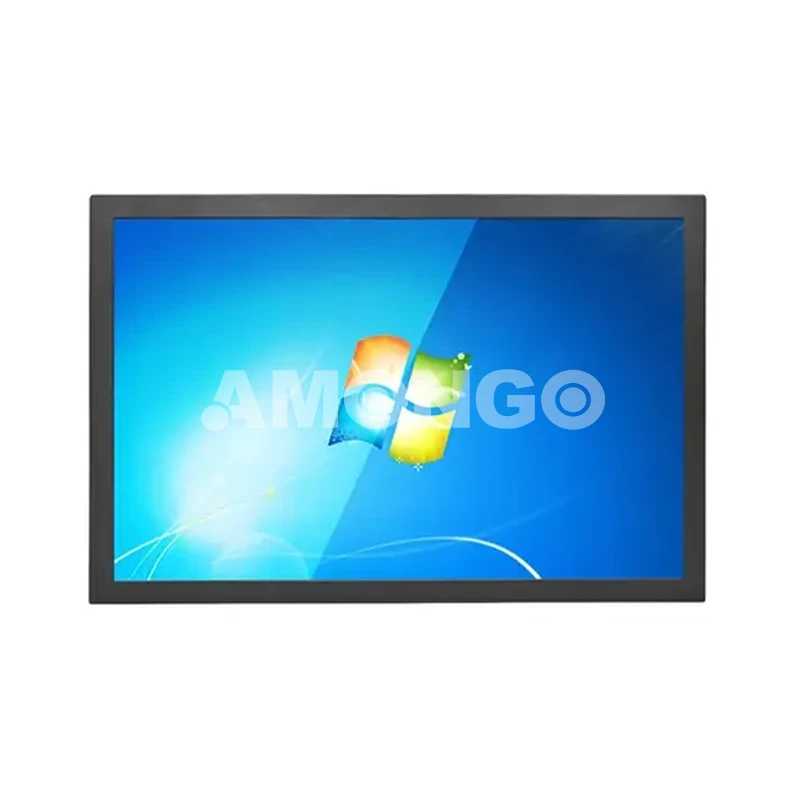

This 22-inch resistive touch display featuring 1680×1050 resolution
Key features
·Resistive touch screen
·Support embedded installation
·VESA installation (bracket optional)
·LED backlight
Typical applications
·AFC
·Industrial equipment
·Kiosk
| Specification | |
| Screen Size | 22" |
| Active Display Area(mm) | 473.76(H)x296.1(V) |
| Pixel Pitch(mm) | 0.282(H)x0.282(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 1680x1050 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M |
| Brightness | 300nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 178(H);178(V) |
| Response Time(Typ.Tr+Tf) | 25ms |
| Touch Screen | Resistive |
| Signal Connector | VGA/DVI-D/Audio/RS232 |
| Power Input | DC 12V |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |
| Relative Humidity | 5~90(% RH) |
