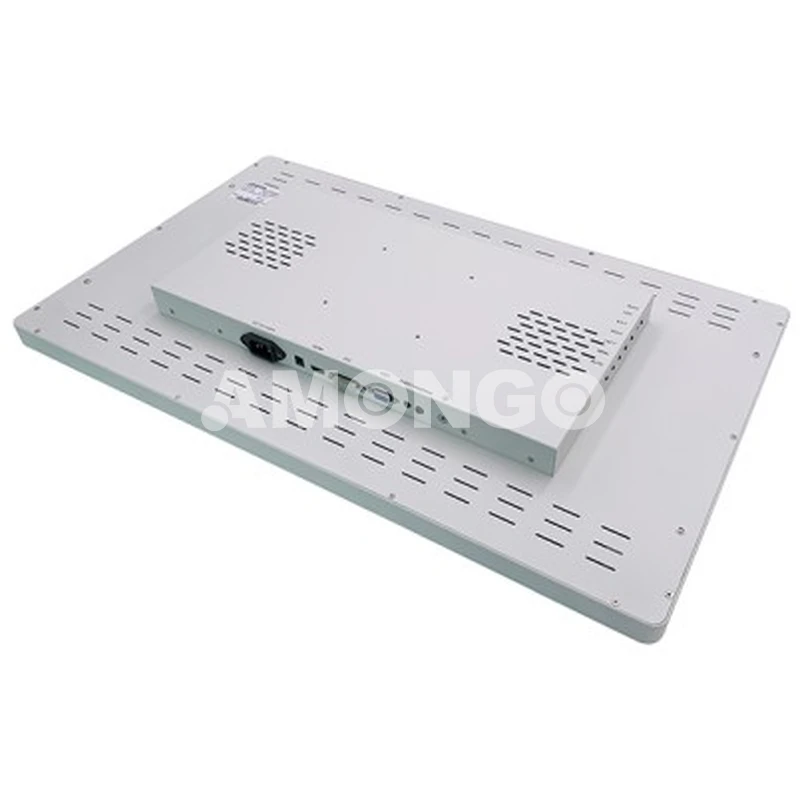

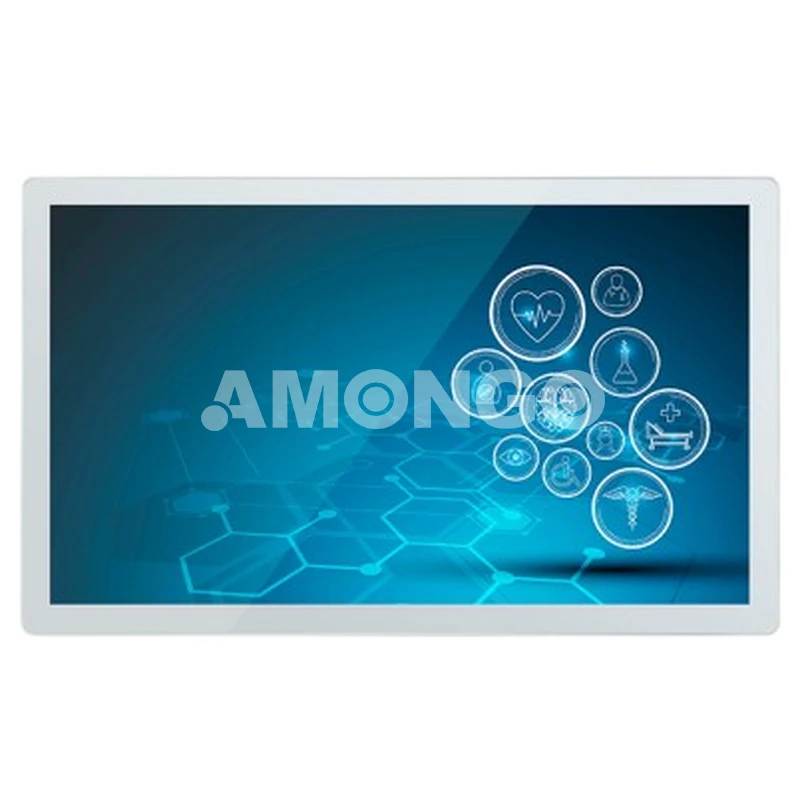

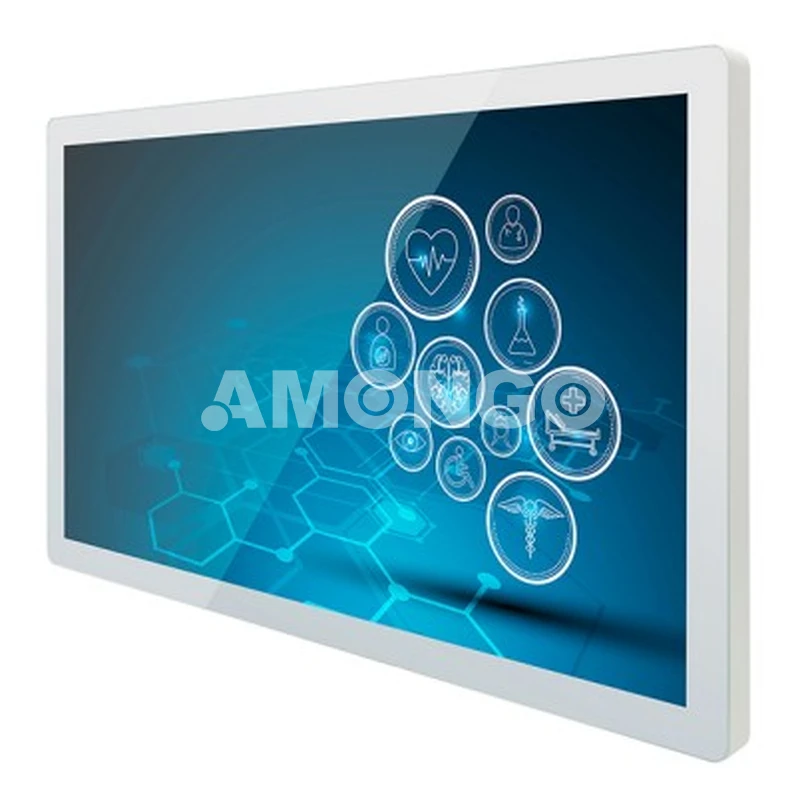

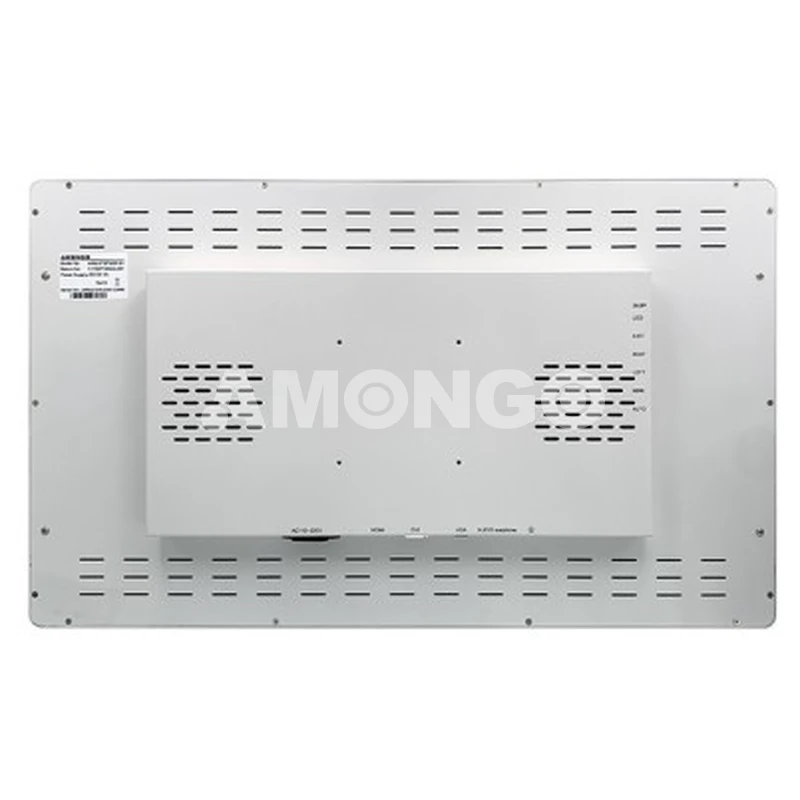

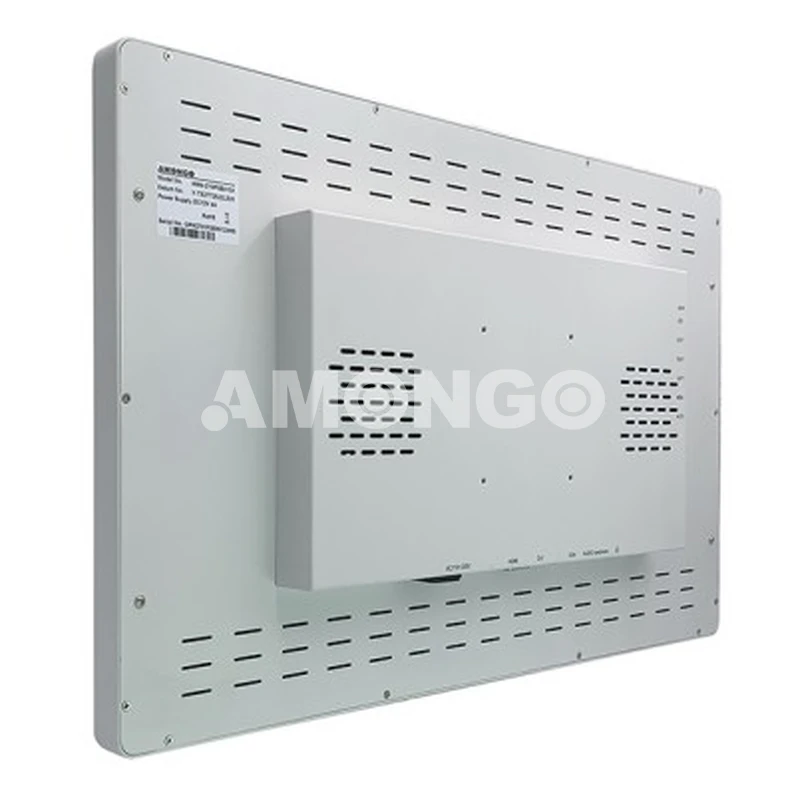

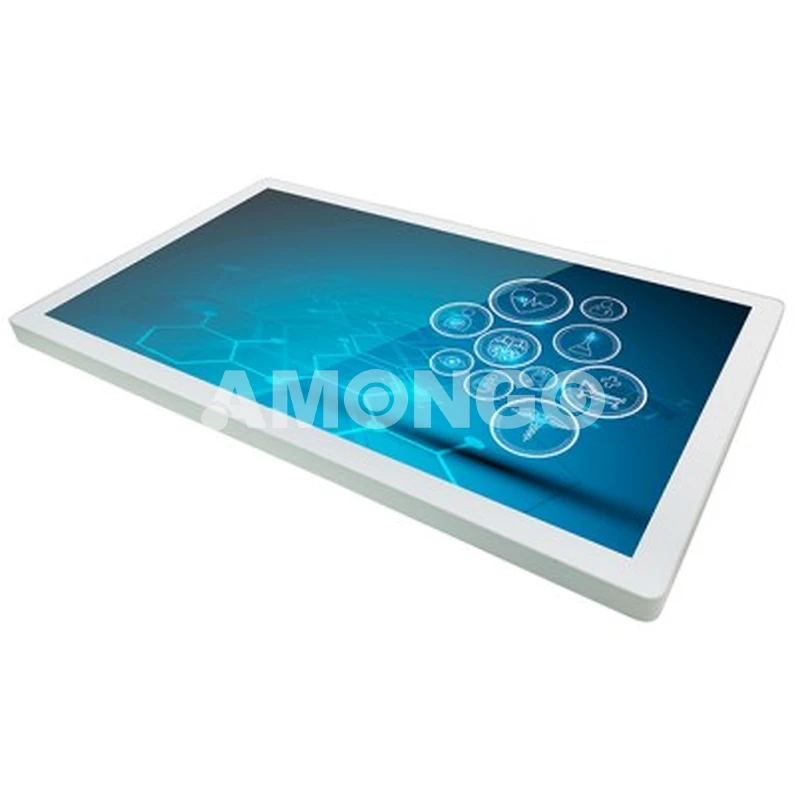

AMG-27OPGE01G1 is a 27-inch FHD industrial medical high-brightness display module with a peak brightness of 1000 nits. It comes with a standard 3mm anti-bulldozer tempered glass and an IP65 dustproof and waterproof frame. It also offers the option of automatic light adjustment based on light sensors and supports 7×24-hour uninterrupted operation. The core features are designed to adapt to scenarios such as strong light, dustproof and waterproof, and high reliability.
Key features
HDR1000 Professional-level High-Light Function
Automatic Light Sensing and Dimming
Surface impact resistance rating: IK08; Hardness: Mohs 7H
Brightness: 100～1000 nits (optional)
Full lamination and AG anti-glare treatment (optional)
Mounting & installation
Supports VESA mounting, rear panel mounting and console mounting. Engineered specifically for medical display applications with a robust sealed construction.
Typical applications
Medical self-service terminal
Commercial digital signage / advertising machine
Industrial touch display equipment
Other strong light professional scenarios
| Technical Specification | |
| LCD | |
| Model Name | AMG-27OPGE01G1 |
| Screen Size | 27" |
| Active Display Area(mm) | 597.6(H) ×336.15(V） |
| Pixel Pitch(mm) | 0.31125 (H) × 0.31125(V) |
| Display Mode | Normally Black |
| Display Resolution(pixel) | 1920x1080 |
| Contrast Ratio | 1000:01:00 |
| Brightness | 1000nits |
| Support Color | 16.7M |
| Backlight | LED |
| Viewing Angles(CR=10) | 178(H);178(V) |
| Response Time(Typ.Tr+Tf) | 20ms |
| Optional | |
| Touch Screen | Optional |
| Tempered glass | 3mm |
| Light Sensor | Optional |
| Optional | |
| Signal Connector | HDMI/DVI/VGA |
| Power Consumption | AC110-230V/50HZ |
| Mechanical | |
| Dimension(VxHxT)mm | 650.4x388.4x56.7 |
| Environmental | |
| Operating Temperature | 0~50℃(non-condensation) |
| Storage Temperature | -20~60℃(non-condensation) |
| Relative Humidity | 5~90(%RH) |
