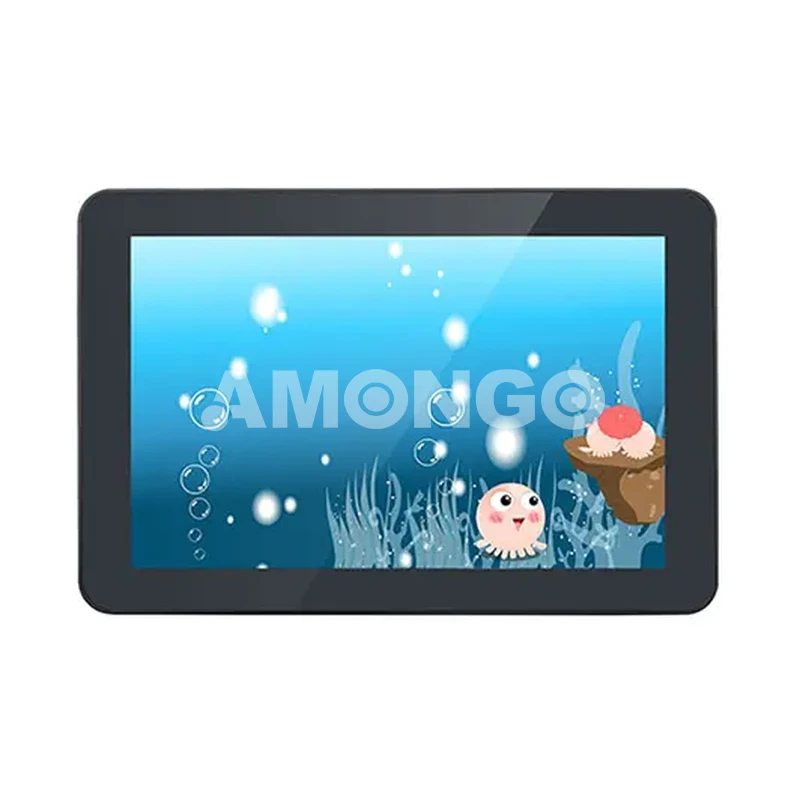

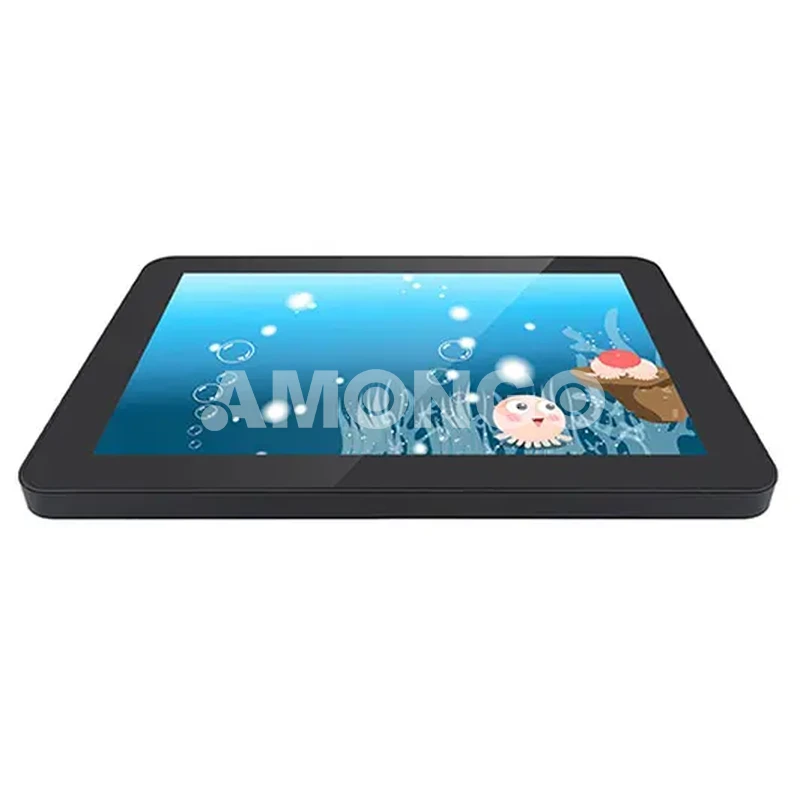

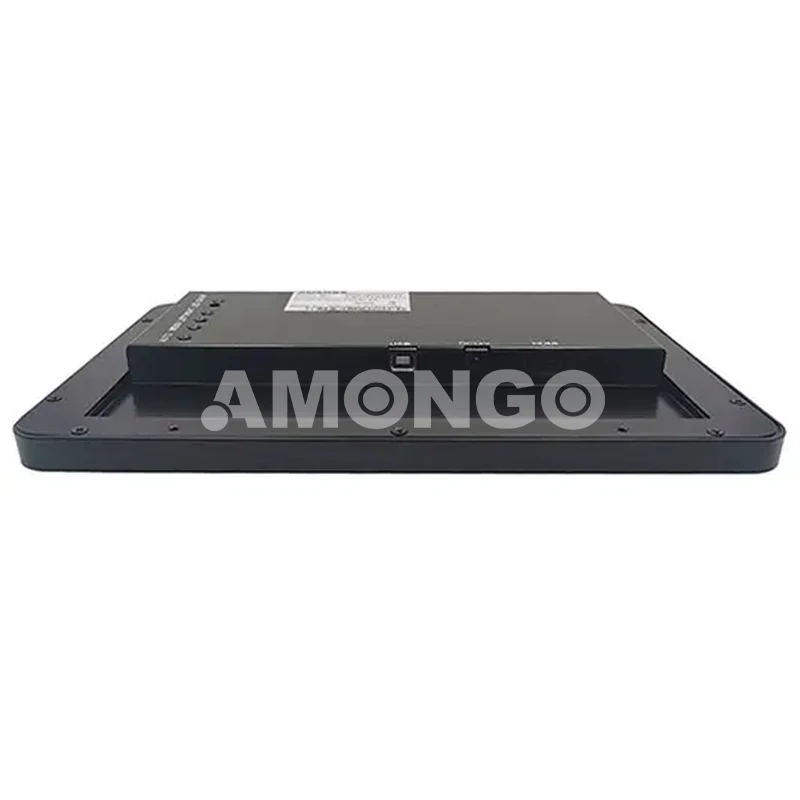

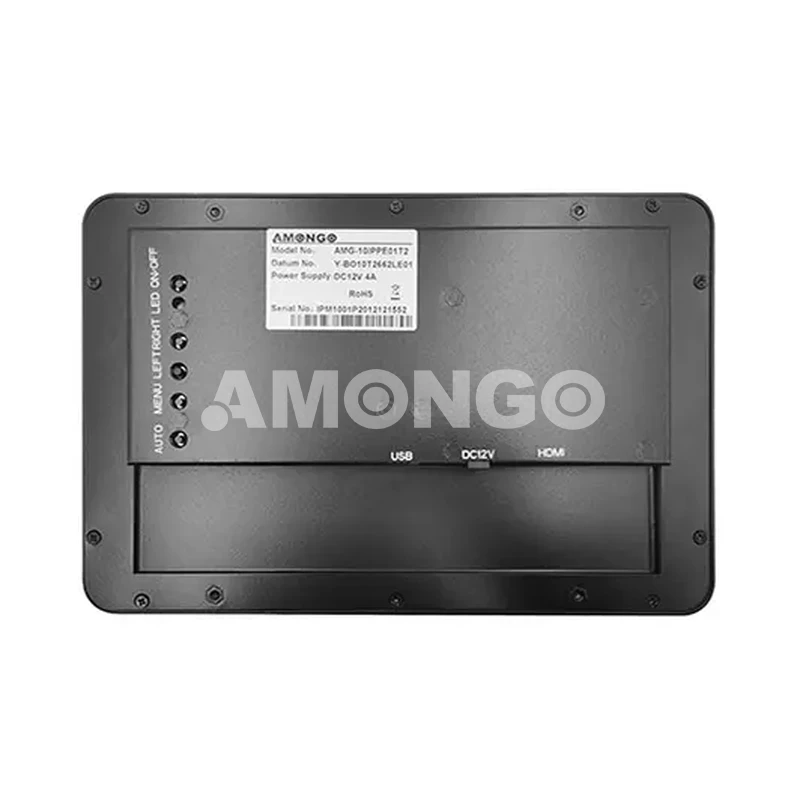

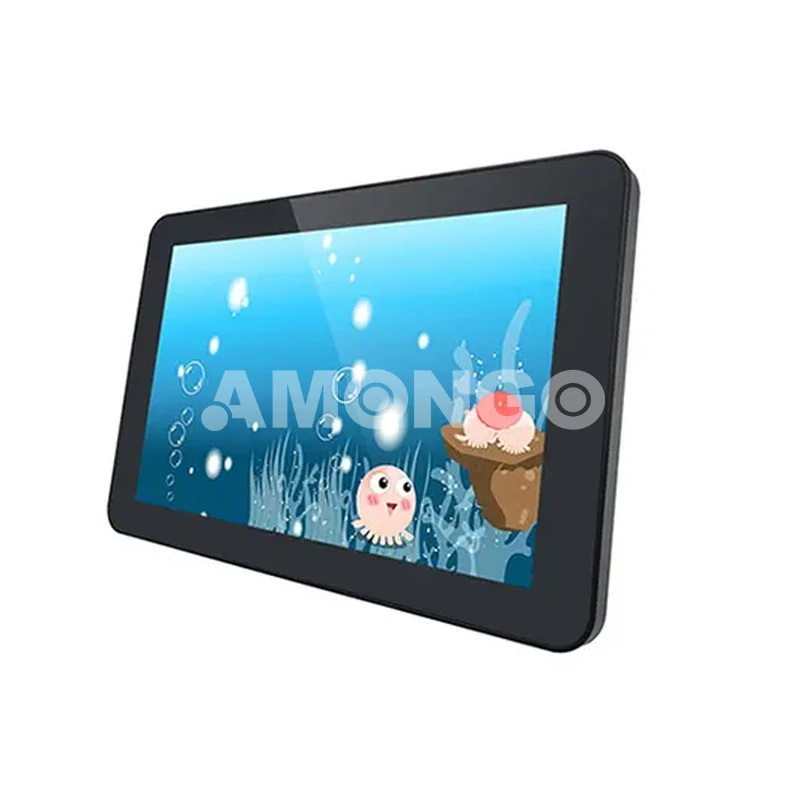

This 10.1-inch High Reliability Multi-touch Monitor for AFC and Self-service Kiosks
Key features
PCAP Multi-touch screen
Full flat surface design
Surface hardness MoHs 7
Wide temperature, starting at low temperature
High reliability test, stable quality
Typical applications
AFC
Non-cash equipment
Kiosk etc
| Specification | |
| Screen Size | 10.1" |
| Active Display Area(mm) | 216.96(H)x135.6(V) |
| Pixel Pitch(mm) | 0.1695(H)x0.1695(V) |
| Display Mode | Normally Black |
| Display Resolution(pixel) | 1280x800 |
| Contrast Ratio | 16.7M |
| Display Color | 1300:1 |
| Brightness | 300nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 160(H);160(V) |
| Response Time(Typ.Tr+Tf) | 25ms |
| Touch Screen | PCAP Touch(10 points) |
| Signal Connector | HDMI |
| Power Input | DC 12V |
| Touch Controller | USB |
| Operating Temperature | -20~60℃(non-condensation) |
| Storage Temperature | -30~70℃(non-condensation) |
| Relative Humidity | 5(%RH)~90(%RH) |
