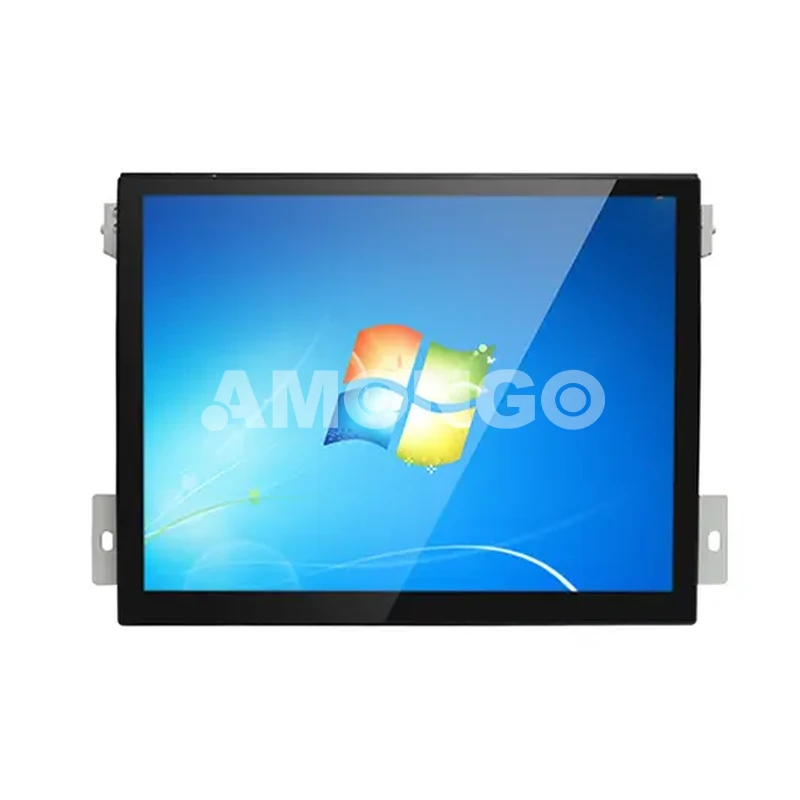

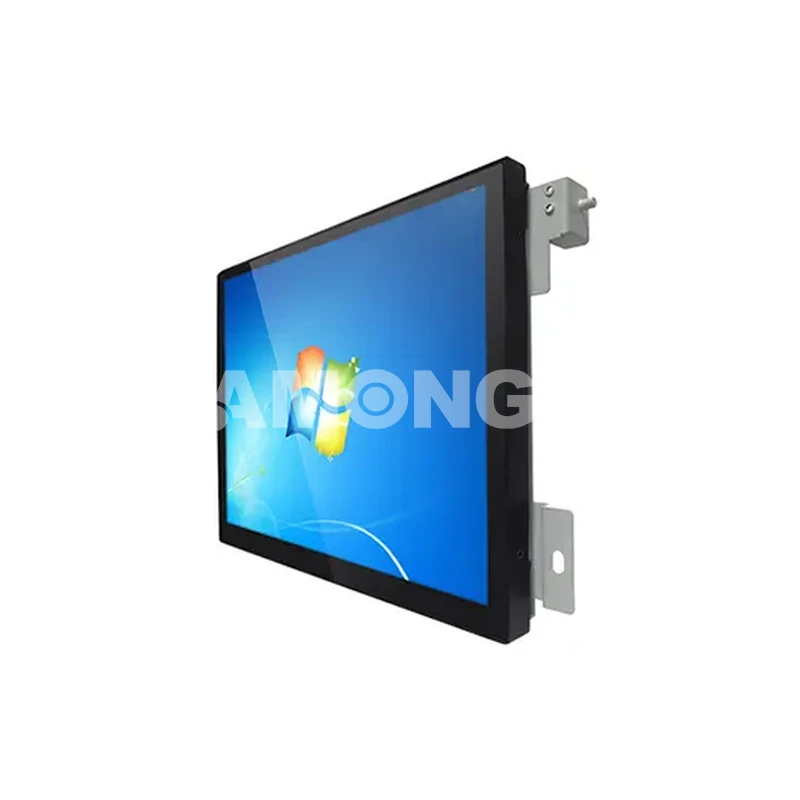

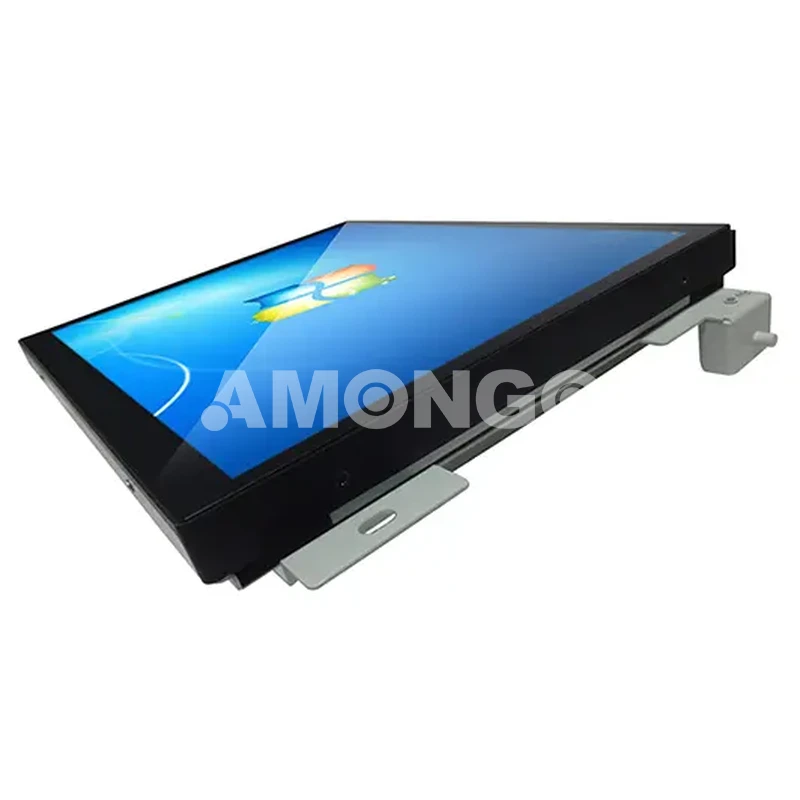

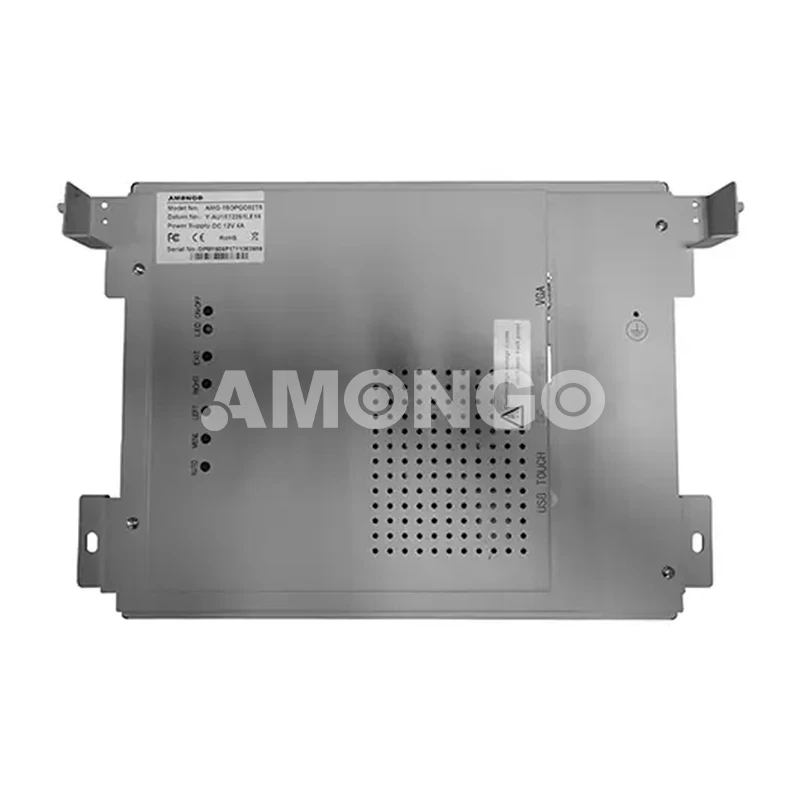

This 15-inch High Brightness Industrial LCD Display with PCAP Touch.
Key features
·Optional touch: PCAP, resistive, etc.
·Robust aluminum enclosure.
·Front panel IP65 / NEMA 4 rated.
Typical applications
·Treadmill
·Industrial Equipment
·Railway etc
| Specification | |
| Screen Size | 15" |
| Active Display Area(mm) | 304.128 (H) x 228.096 (V) |
| Pixel Pitch(mm) | 0.297 (H) x 0.297 (V) |
| Display Mode | Normally white |
| Display Resolution(pixel) | 1024x768 |
| Contrast Ratio | 700:1 |
| Display Color | 16.2M |
| Brightness | 1200nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 160 (H); 140 (V) |
| Response Time(Typ.Tr+Tf) | 8ms |
| Touch Screen | PCAP Touch(10 points) |
| Signal Connector | VGA/DVI/USB |
| Power Input | DC 12V |
| Operating Temperature | -30～85℃ |
| Storage Temperature | -30～85℃ |
| Relative Humidity | 5(%RH)～90(%RH) |
