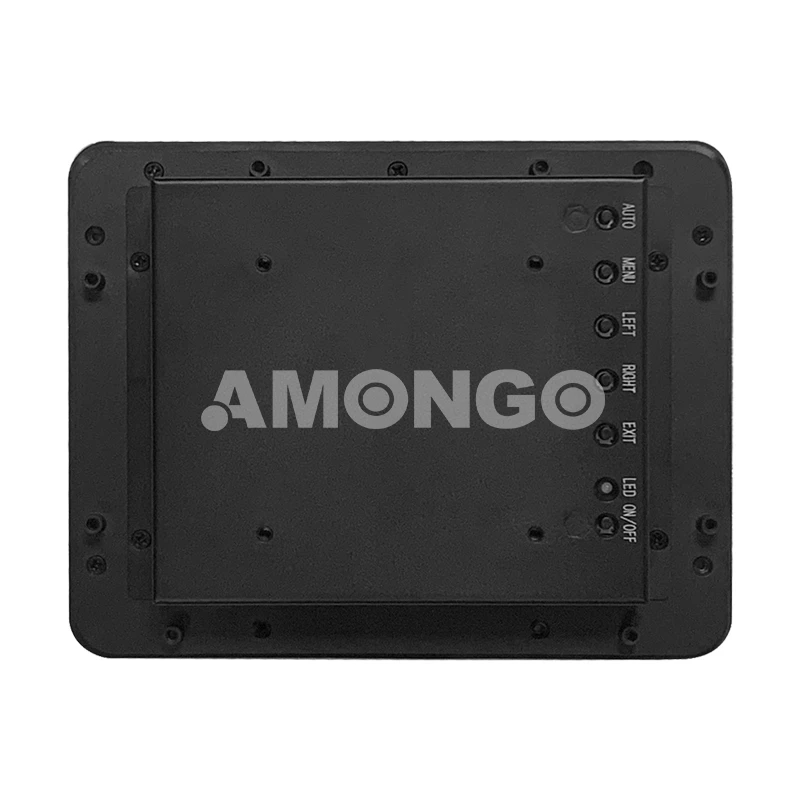

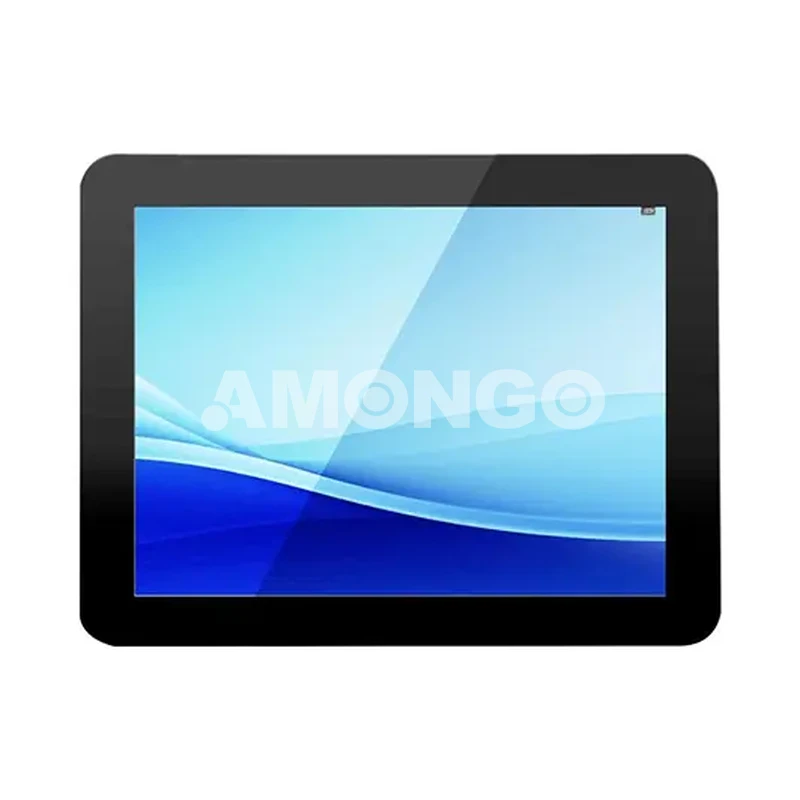

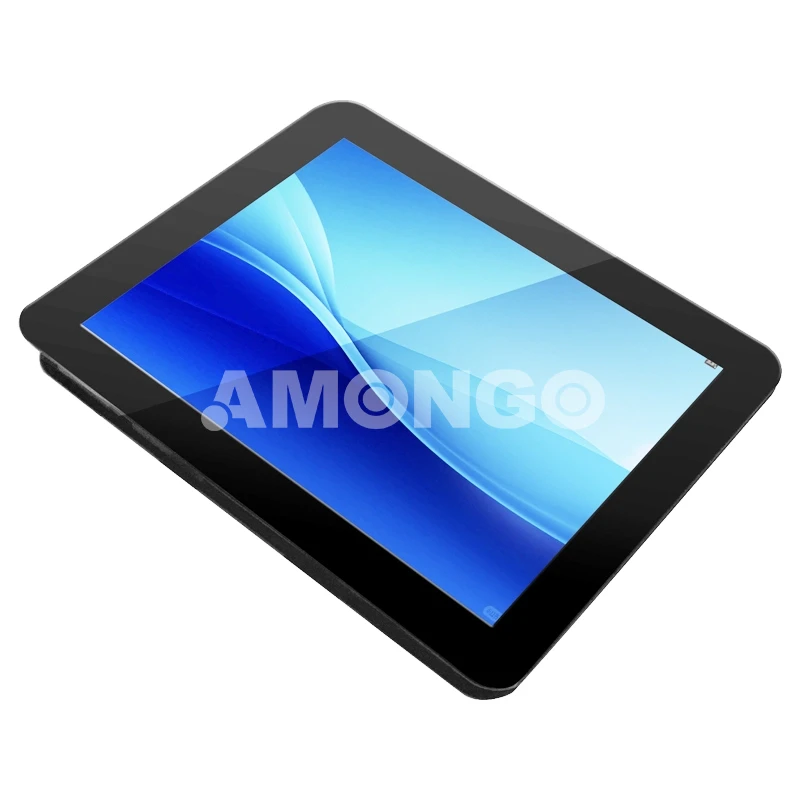

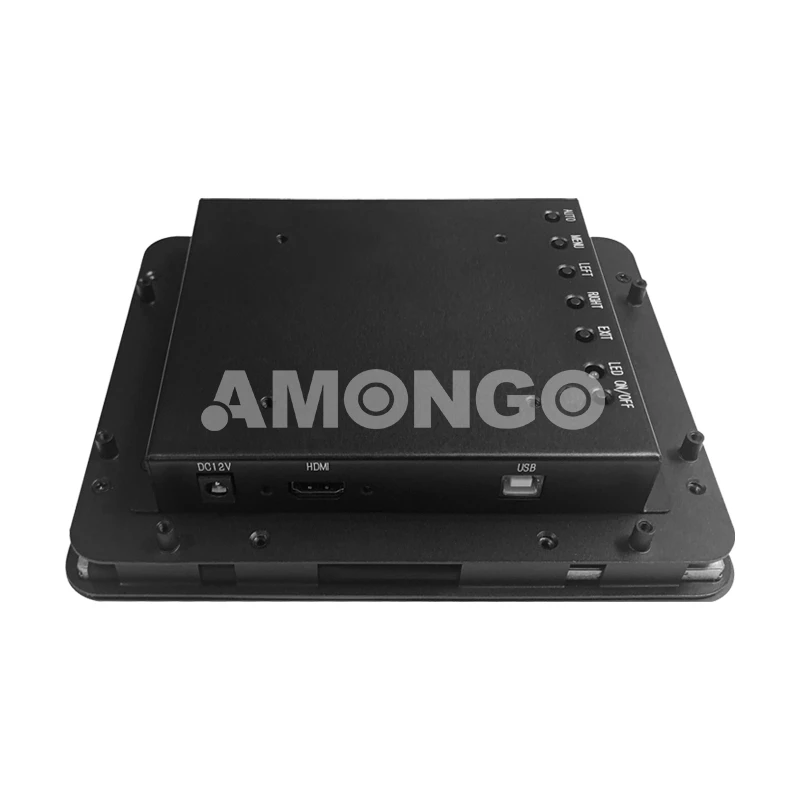

AMG-08OPBK01T1 High Brightness Display

AMG-08OPBK01TI is an 8-inch 1000nits high-brightness industrial touch monitor with 1024×768 resolution. It supports optional 10-point PCAP capacitive touch and ambient light sensor. Featuring HDMI input, DC12V power, embedded and VESA mounting, it ensures visibility under strong light and is ideal for HMI integration of self-service and industrial equipment.

Key features

Visible under strong ambient light.
Enables automatic screen backlight adjustment.
High reliability and long lifespan, suitable for prolonged continuous equipment operation.
Surface impact resistance rating: IK08; Hardness: Mohs 7H
Brightness: 100～1000 nits (optional)
Full lamination and AG anti-glare treatment (optional)

Mounting & installation

Supports embedded installation and VESA mounting
Waterproof and with excellent sealing performance

Typical applications

AFC equipment
Self-checkout & cashless terminals
Outdoor/semi-outdoor kiosks
Construction machinery, vehicle-mounted industrial HMI
Outdoor industrial control panels

Technical Specification of AMG-08OPBK01T1 High Brightness Display

Technical Specification

Model Name

AMG-08OPBK01T1

Screen Size

Active Display Area(mm)

162.05(H)x121.54(V)

Pixel Pitch(mm)

0.15825(H)x0.05275(V)

Display Mode

Normally Black

Display Resolution(pixel)

1024x768

Contrast Ratio

800:1

Display Color

16.7M

Brightness

1000nits

Backlight

Viewing Angles（CR=10）

170(H);170(V)

Response Time（Typ.Tr+Tf）

Optional

Touch Screen

PCAP Touch(10 points)

Light Sensor

Support

Tempered glass

Optional

I/O Interface

Signal Connector

Power Input

DC 12V

Touch Controller

Mechanical

Dimension(VxHxT)mm

60*18.5*41.5

Environmental

Operating Temperature

0~50℃（non-condensation）

Storage Temperature

-20~60°C（non-condesation）

Relative Humidity

5~90(% RH)
