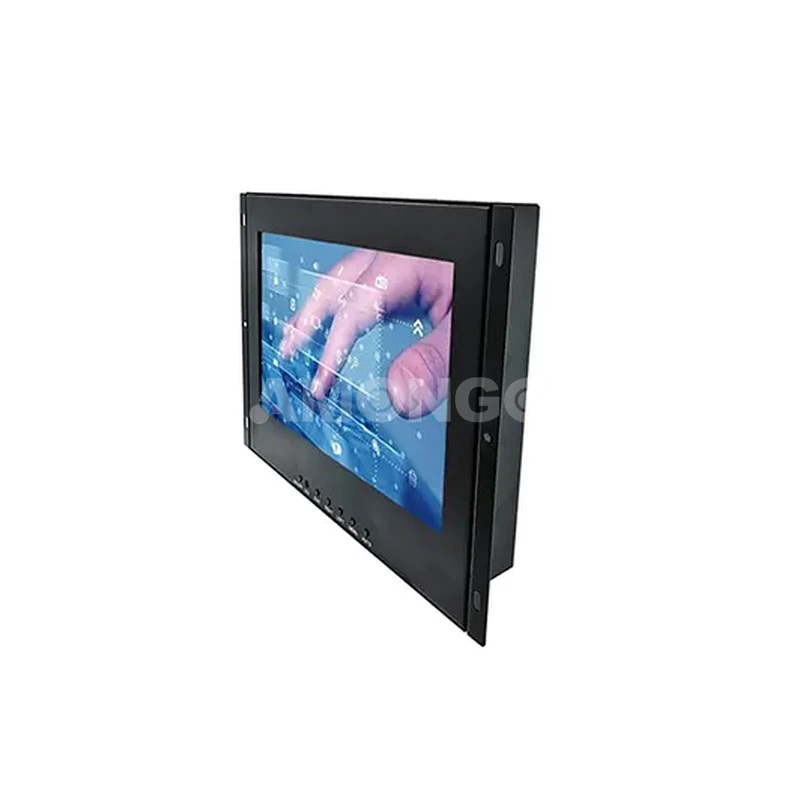

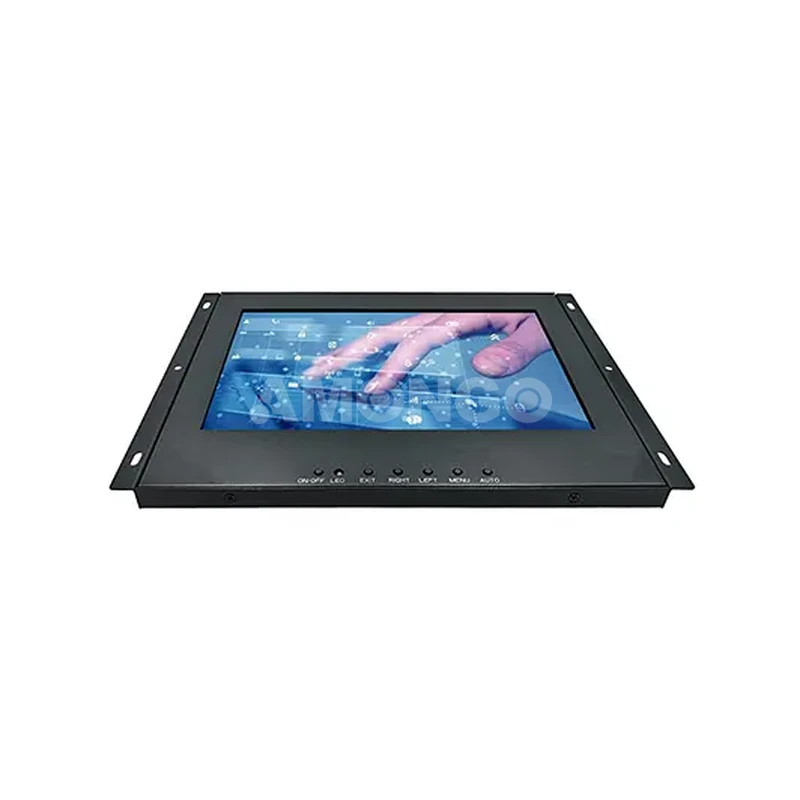

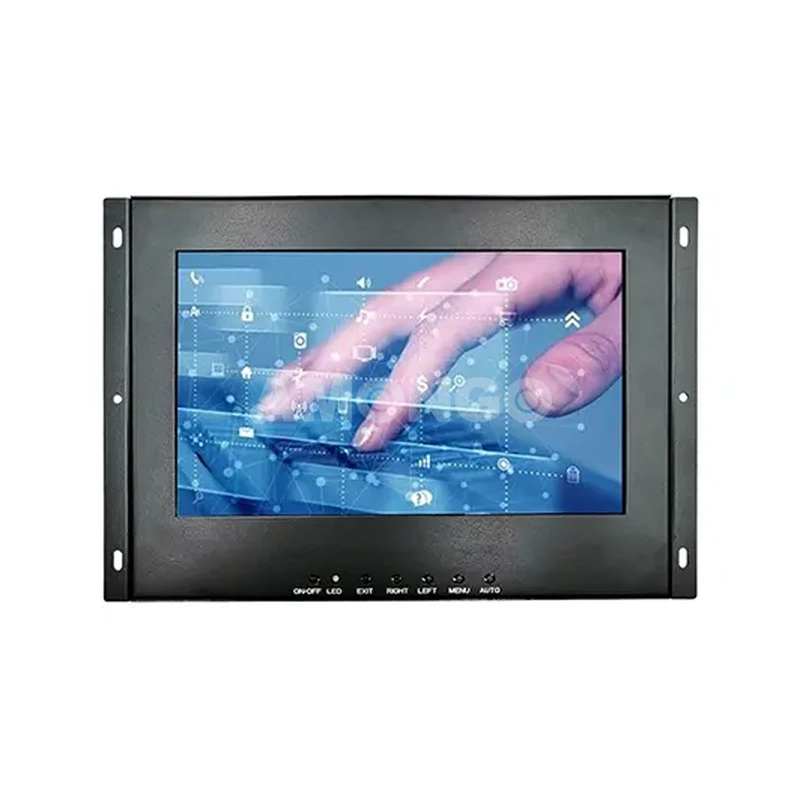

This 10.1-inch Rugged Industrial PCAP Touch Display with IP65 Front Panel.
Key features
·PCAP Multi-touch screen
·Support embedded /VESAinstallation
·Surface IP65 waterproof/vandal-proof/dust-proof
·Surface hardness MoHs 7
·Stable quality through high reliability testing
Typical applications
·AFC
·Non-cash equipment
·Kiosk etc
| Specification | |
| Screen Size | 10.1" |
| Active Display Area(mm) | 216.96(H)x135.6(V) |
| Pixel Pitch(mm) | 0.1695(H)x0.1695(V) |
| Display Mode | Normally Black |
| Display Resolution(pixel) | 1280x800 |
| Contrast Ratio | 800:1 |
| Display Color | 16.7M |
| Brightness | 350nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 170(H);170(V) |
| Response Time(Typ.Tr+Tf) | 25ms |
| Touch Screen | PCAP Touch(10 points) |
| Signal Connector | HDMI/DP |
| Power Input | DC 12V |
| Touch Controller | USB |
| Operating Temperature | -20～70℃(non-condensation) |
| Storage Temperature | -30～80℃(non-condensation) |
| Relative Humidity | 5(%RH)～90(%RH) |
