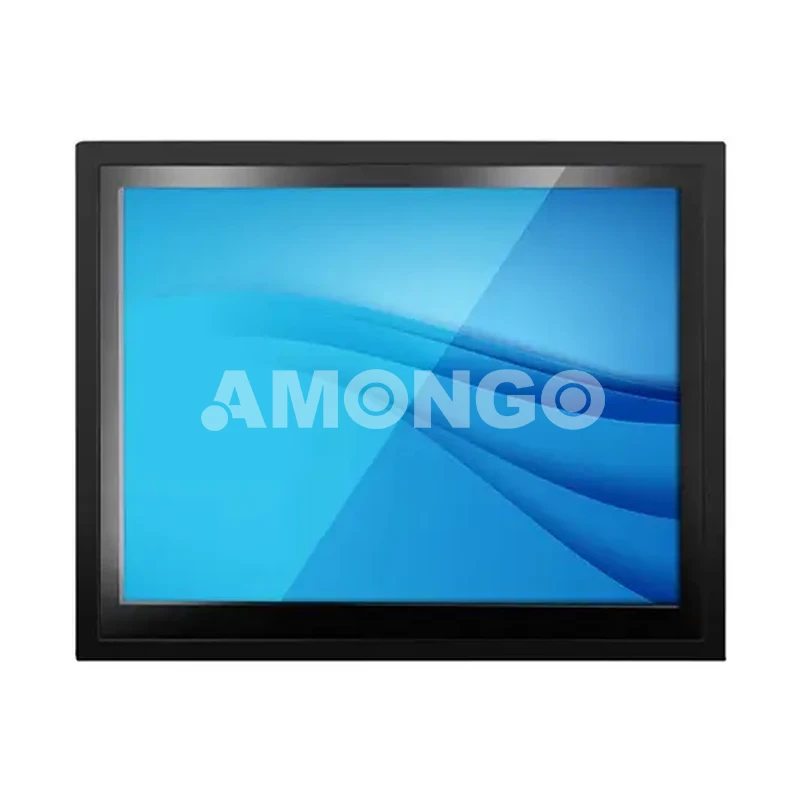

AMG-10OPGD01T1 display device is a high-brightness screen with a brightness of up to 1000 NITS. The screen surface features UV + AG functions, which enhance the screen's lifespan. It is suitable for outdoor advertising media, commercial displays, intelligent transportation, city landmarks, indoor touch and other fields.
Key features
IP65 front face waterproofing
UV protection
Anti-glare AG coating
Cooling fan
Mounting & installation
Supports embedded installation and VESA mounting
Waterproof and with excellent sealing performance
Typical applications
Outdoor digital billboards, public transportation information screens, theme park information guidance screens, campus interactive display windows, unmanned vending machines, and so on
Aluminum profile front frame
PCAP Multi-touch screen
Optical bonding technology
IP65 Waterpfoof, Dust-proof,Vandal-proof
High reliability test,stable performance
Application:
AFC/ Industrial equipment / Kiosk
| Technical Specification | |
| LCD | |
| Model Name | AMG-10OPGD01T1 |
| Screen Size | 10.4" |
| Active Display Area(mm) | 211.2(H)x158.4(V) |
| Pixel Pitch(mm) | 0.20625(H)x0.20625(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 1024x768 |
| Contrast Ratio | 900:1 |
| Display Color | 16.7M |
| Brightness | 1000nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 150(H);150(V) |
| Response Time（Typ.Tr+Tf） | 16ms |
| Optional | |
| Touch Screen | PCAP Touch(10 points) |
| Light Sensor | Optional |
| Tempered glass | Optional |
| I/O Interface | |
| Signal Connector | HDMI |
| Power Input | DC 12V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 248.8*199.6*36.9 |
| Environmental | |
| Operating Temperature | -10~60℃（non-condensation） |
| Storage Temperature | -30~80°C（non-condesation） |
| Relative Humidity | 5~90(% RH) |
