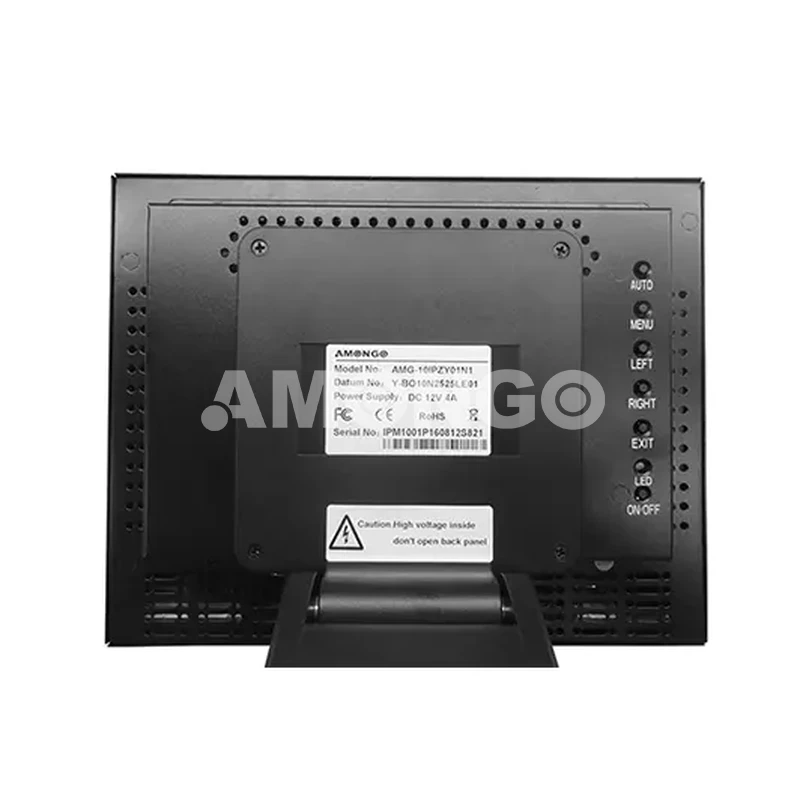

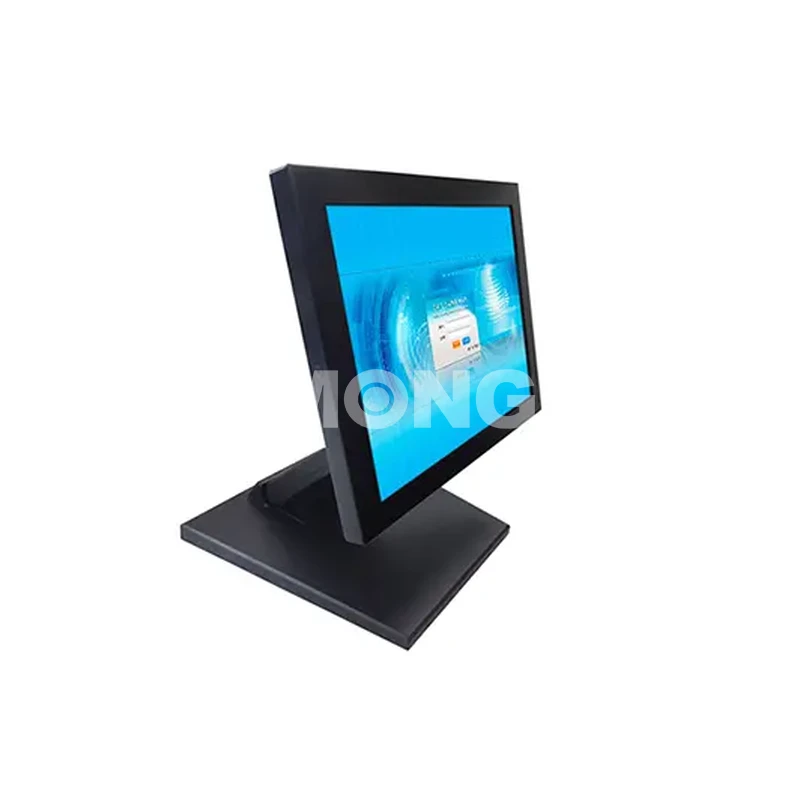

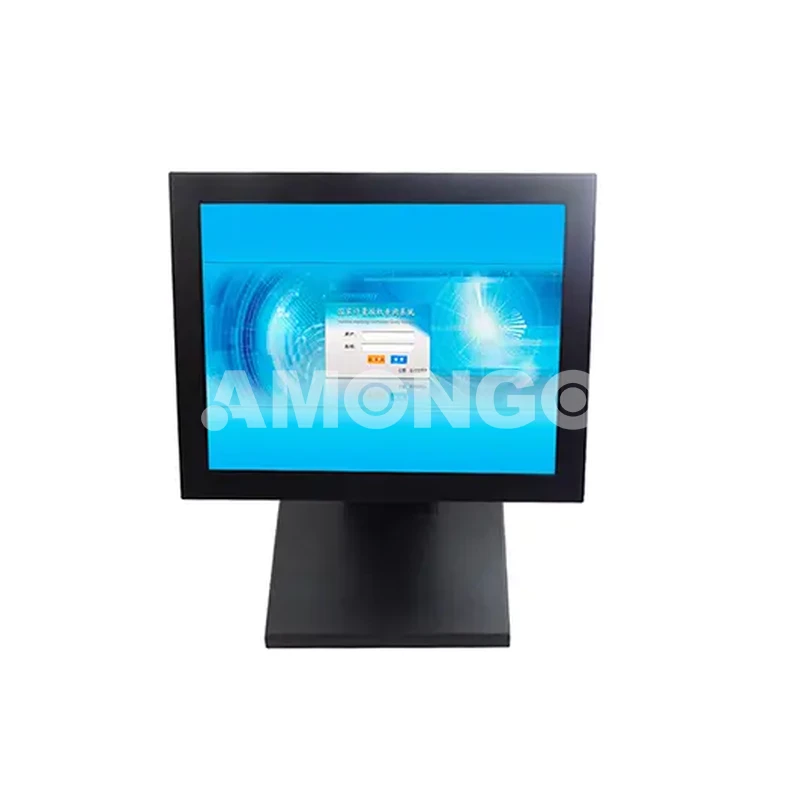

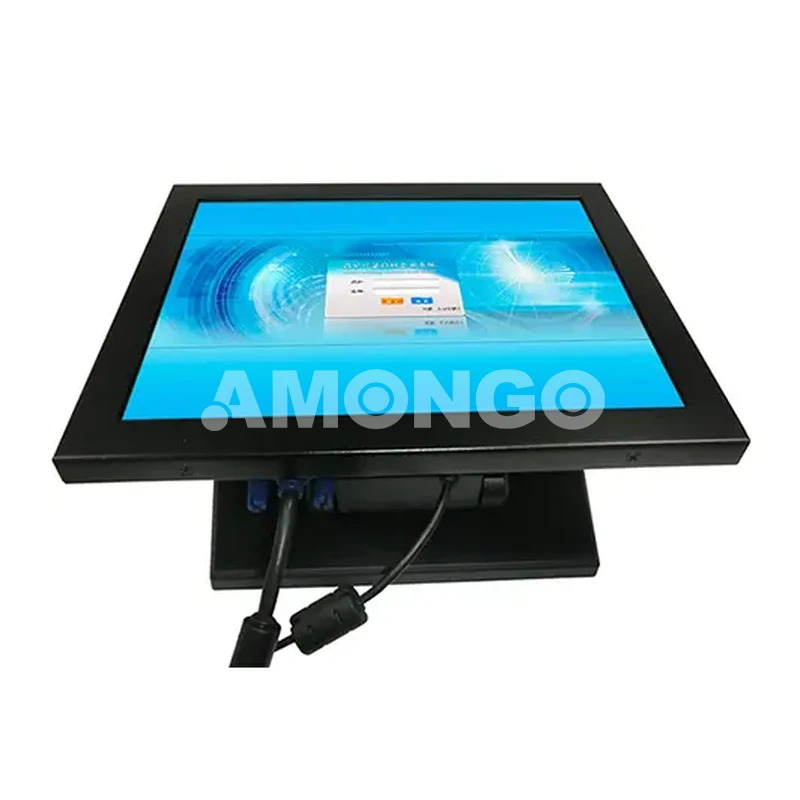

This 10.4" industrial rack-mount LCD monitor is ideal for harsh environments.
Key features
·PCAP multi-touch(10 points)
·Wide temperature
·Support embedded, side strip installation
·High reliability test, stable performance
Typical applications
·AFC
·Industrial automation
·Self-service gate etc
| Specification | |
| Screen Size | 10.4" |
| Active Display Area(mm) | 211.2(H)x158.4(V) |
| Pixel Pitch(mm) | 0.20625(H)x0.20625(V) |
| Display Mode | Normally black |
| Display Resolution(pixel) | 1024x768 |
| Contrast Ratio | 900:1 |
| Display Color | 16.7M |
| Brightness | 350nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 150(H);150(V) |
| Response Time(Typ.Tr+Tf) | 16ms |
| Touch Screen | PCAP Touch(10 points) |
| Signal Connector | VGA/DVI |
| Power Input | DC 12V |
| Touch Controller | USB |
| Operating Temperature | -20～70℃(non-condensation) |
| Storage Temperature | -30～80℃(non-condensation) |
| Relative Humidity | 5(%RH)～90(%RH) |
