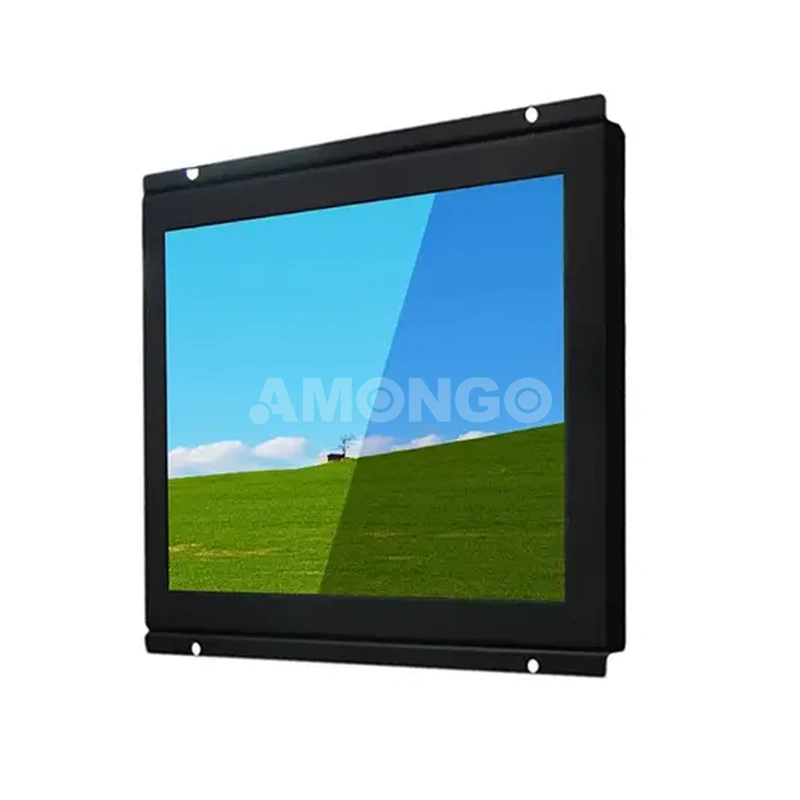

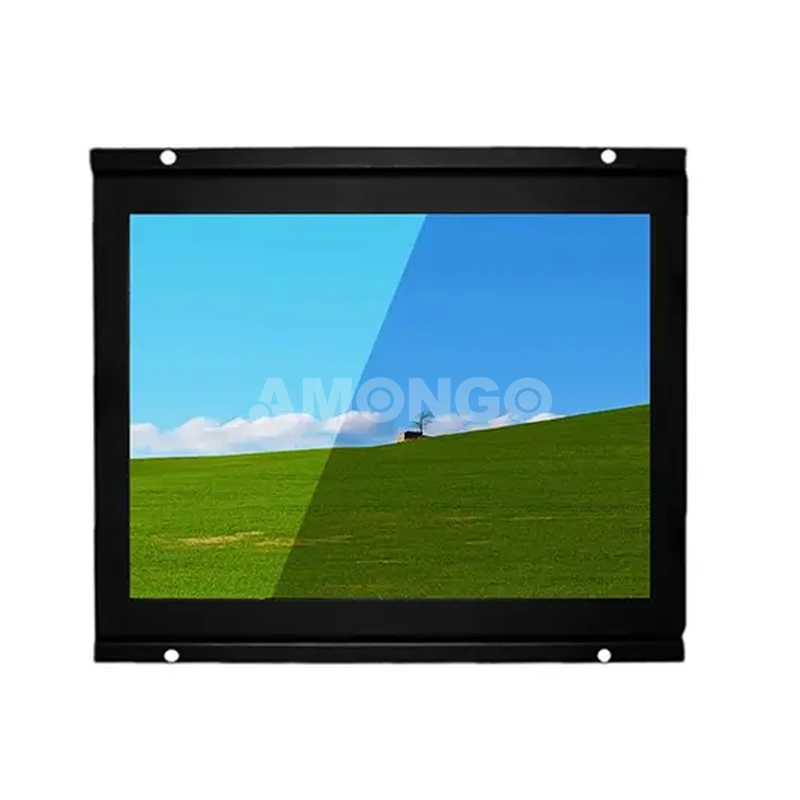

AMG-10IPTE03N1 is an outdoor high-brightness display module, featuring high brightness, wide temperature range, and wide angle. It is mainly applied in outdoor ATM displays, outdoor environmental monitoring data display, express locker industries, etc.
Key features
Monitor brightness: 1000 nits High resolution
Multiple signal interfaces
LED energy-saving backlight solution
Mounting & installation
Display has a brightness of 1000 nits.
Supports standard VESA hole installation, bracket installation, embedded panel installation, and other installation methods.
Typical applications
ATM machine
Outdoor environment detector
Express locker
Traffic publicity display screen
| Technical Specification | |
| LCD | |
| Model Name | AMG-10IPTE03N1 |
| Screen Size | 10.4" |
| Active Display Area(mm) | 211.2(H)x158.4(V) |
| Pixel Pitch(mm) | 0.264(H)x0.264(V) |
| Display Mode | Normally Black |
| Display Resolution(pixel) | 1920x1080 |
| Contrast Ratio | 3000:1 |
| Display Color | 16.7M |
| Brightness | 1000nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 178(H);178(V) |
| Response Time（Typ.Tr+Tf） | 18ms |
| Optional | |
| Touch Screen | PCAP Touch（10 points） |
| Light Sensor | Optional |
| Privacy Film | Optional |
| I/O Interface | |

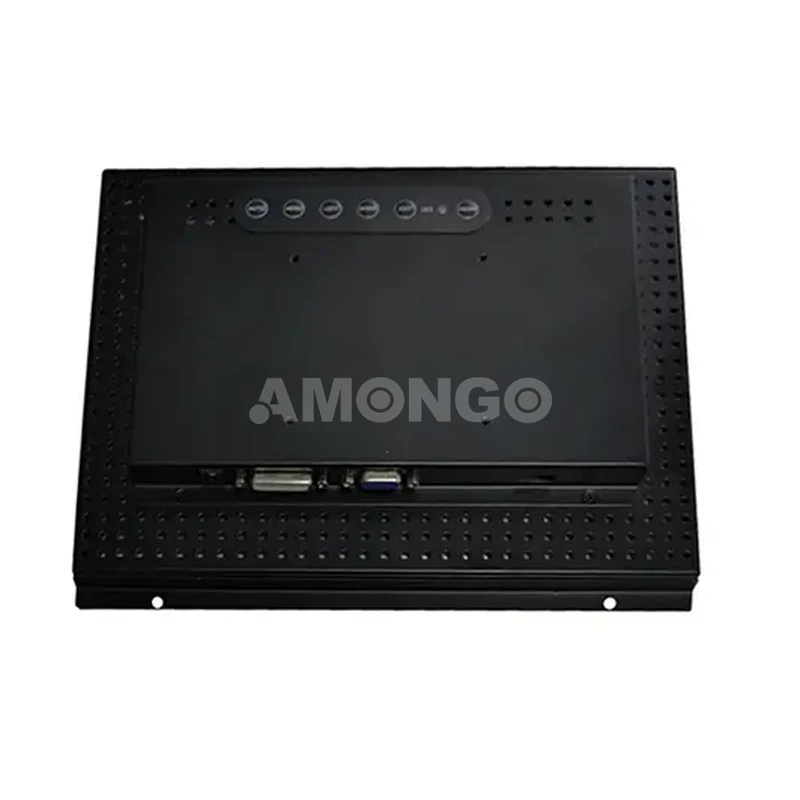

| Signal Connector | VGA/DVI |
| Power Consumption | DC 12V |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 306.6*230.1*57 |
| Environmental | |
| Operating Temperature | -20~70℃（non-condensation） |
| Storage Temperature | -30~80℃（non-condesation） |
| Relative Humidity | 5~90(% RH) |
