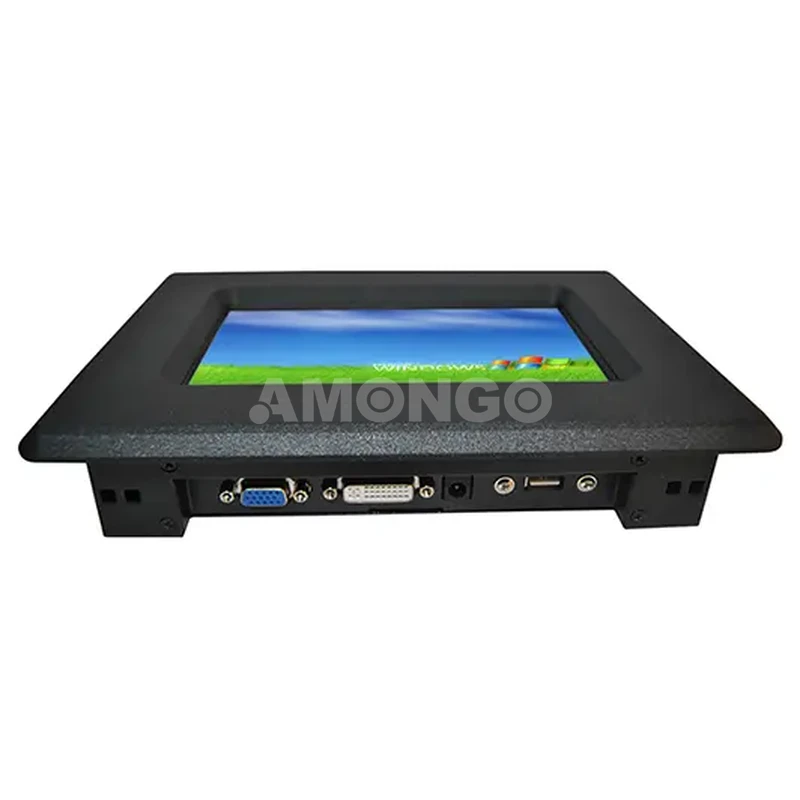

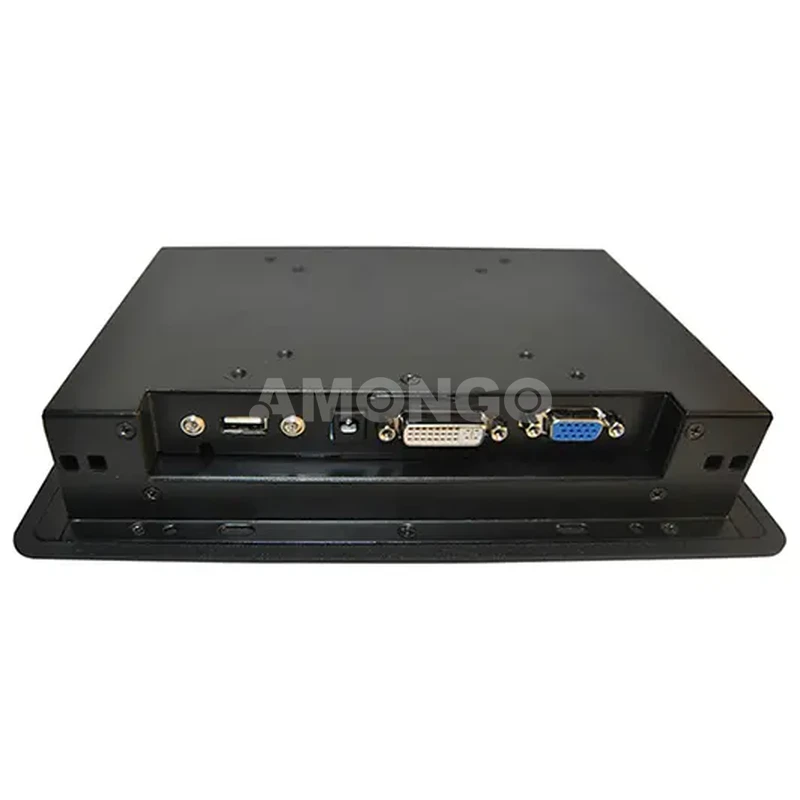

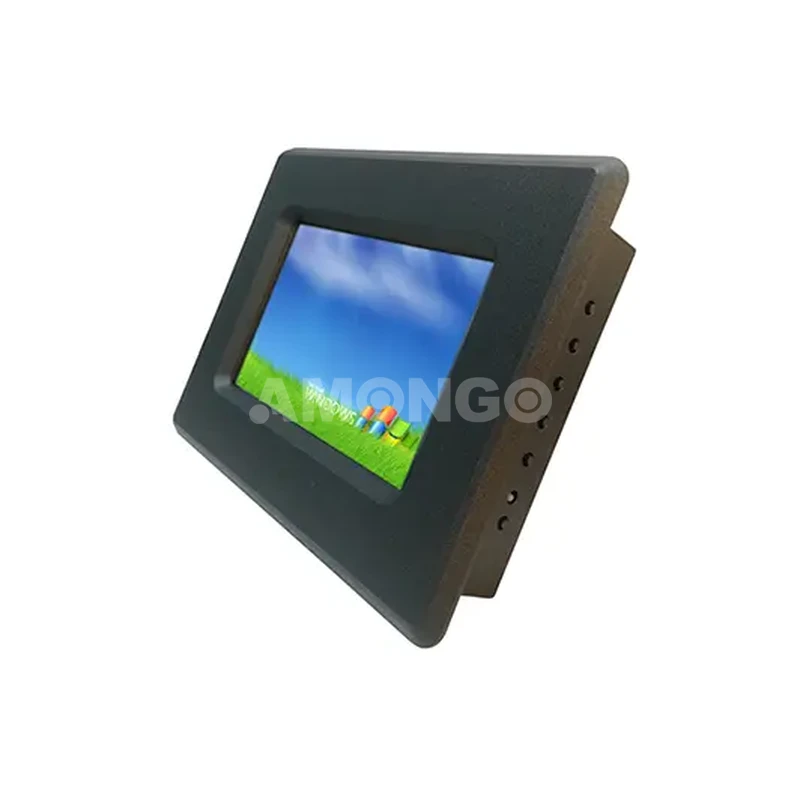

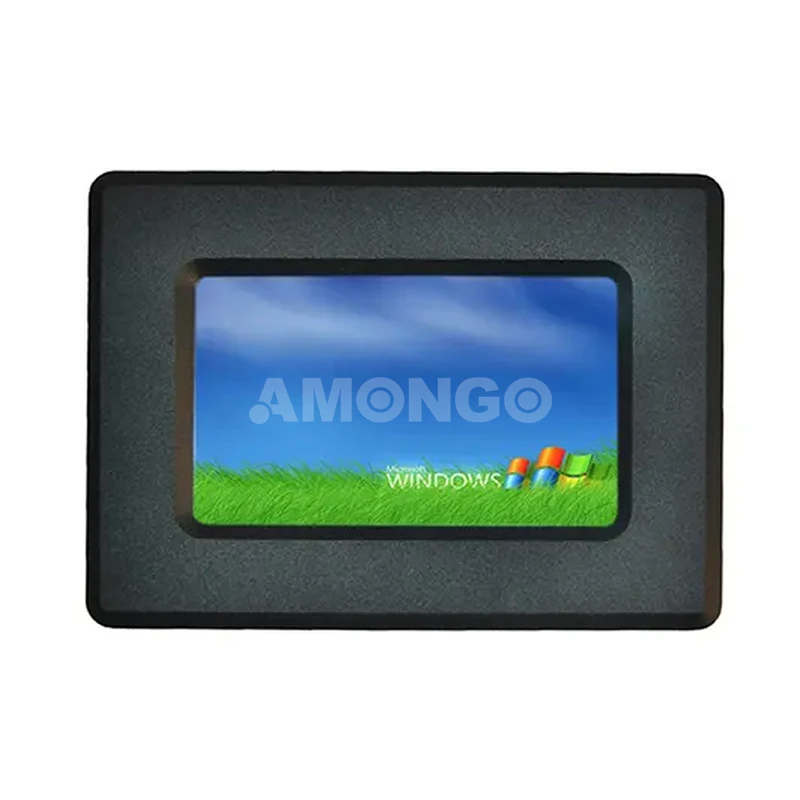

This 7-inch industrial-grade LCD panel display is designed for industrial and commercial applications.
Key features
·Shock & vibration resistant
·Customizable
·Superb image quality & wide viewing angle
·Industrial-grade components
Typical applications
·Industrial equipment
·AFC
·Logistics cabinet etc
| Specification | |
| Screen Size | 7" |
| Active Display Area(mm) | 152.4 (H) x91.44 (V) |
| Pixel Pitch(mm) | 0.1905 (H) x 0.1905 (V) |
| Display Mode | Normally white |
| Display Resolution(pixel) | 800x480 |
| Contrast Ratio | 500:1 |
| Display Color | 16.2M |
| Brightness | 350nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 110(H);130 (V) |
| Response Time(Typ.Tr+Tf) | 30ms |
| Touch Screen | Resistive |
| Signal Connector | VGA/DVI |
| Power Input | DC 12V |
| Operating Temperature | -20～70℃ |
| Storage Temperature | -20～70℃ |
| Relative Humidity | 5(%RH)～90(%RH) |
