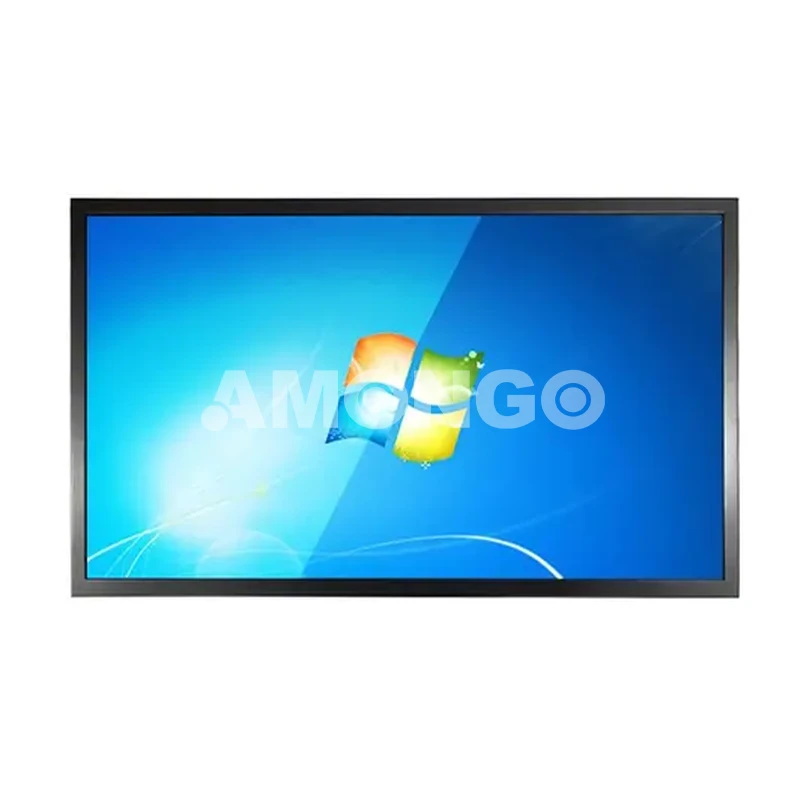

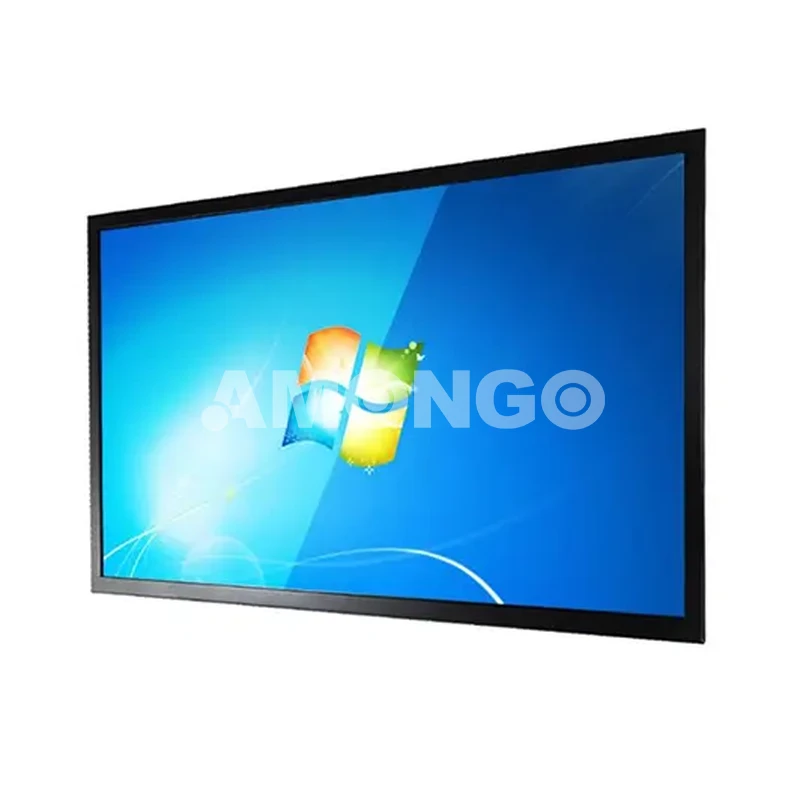

This 23-inch IP-rated LCD display with 1920×1080 resolution, LED backlight
Key features
·Full-view LCD screen
·Supports embedded mounting
·VESA mountable
·Low power consumption
·Low heat generation and long service life
Typical applications
·AFC
·Industrial equipment
·Kiosk
| Specification | |
| Screen Size | 23" |
| Active Display Area(mm) | 510.2(H)x287.4(V) |
| Pixel Pitch(mm) | 0.265(H)x0.265(V) |
| Display Mode | Normally Black |
| Display Resolution(pixel) | 1920x1080 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M |
| Brightness | 250nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 178(H);178(V) |
| Response Time(Typ.Tr+Tf) | 14ms |

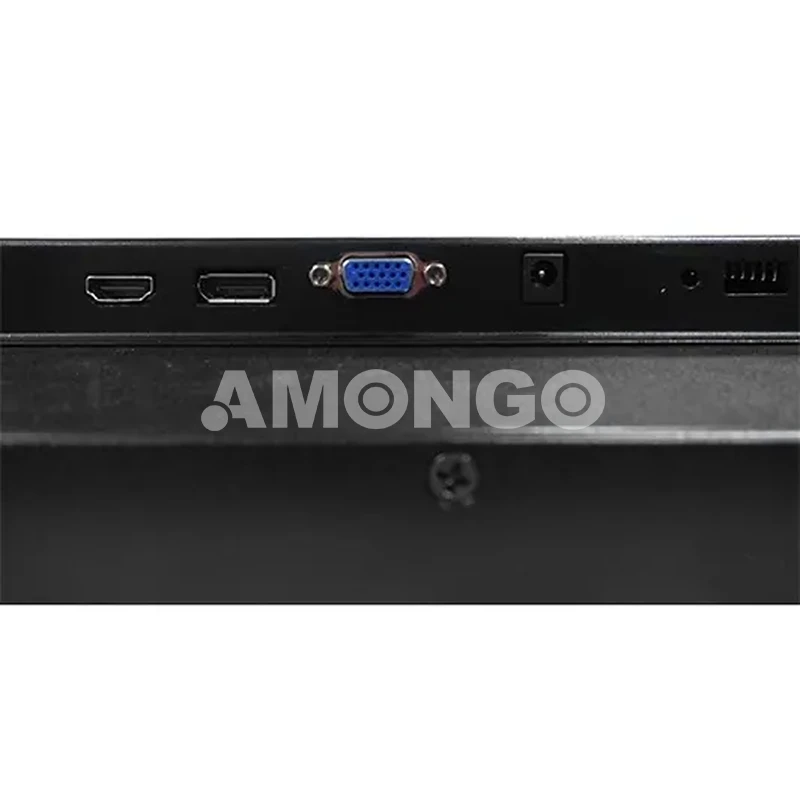

| Signal Connector | VGA/DVI/HDMI/DP |
| Power Input | DC 12V |
| Operating Temperature | 0~50℃ |
| Storage Temperature | -20~60℃ |
| Relative Humidity | 5~90(% RH) |
