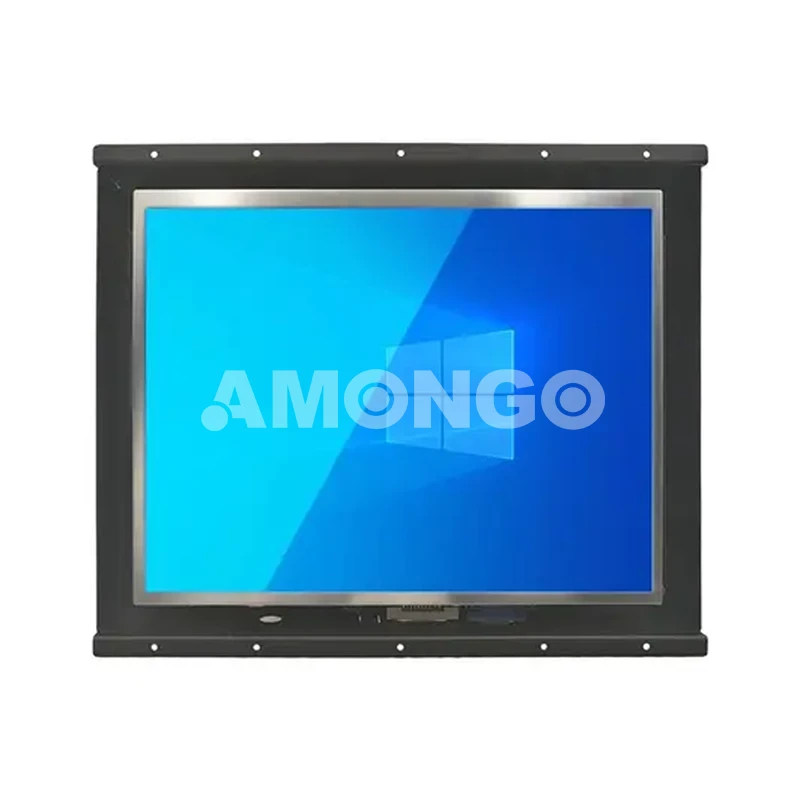

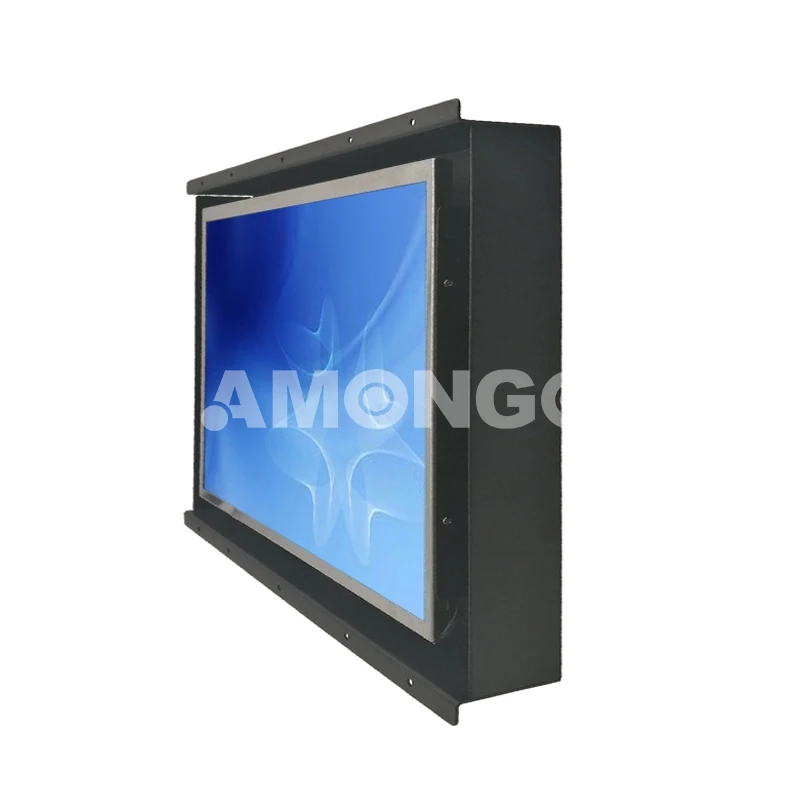

The AMG-12OPEU01T4 is a 12.1-inch 1000nits high-brightness open-frame industrial monitor with 800×600 resolution. Touch screen and light sensor are optional. Equipped with VGA/DVI interfaces, it operates under wide temperature range. The open-frame design supports embedded and VESA mounting. Sunlight readable, it is suitable for integration in industrial automation, AFC and other equipment.
Key features
Sunlight readable.
Suitable for harsh industrial environments.
Stable & reliable for prolonged continuous operation.
Resolution: 1024 × 768 (optional)
Signal Interfaces: HDMI, DP (optional)
Mounting & installation
Supports embedded installation and VESA mounting
Waterproof and with excellent sealing performance
Typical applications
AFC equipment
Vehicle-mounted special equipment displays
Intelligent warehousing & security consoles
PCAP Multi-touch screen
Support embedded / VESA installation
Full flat surface design
High brightness,Light Sensor
High reliability and long lifetime
Application:
AFC/ Non-cash equipment / Kiosk etc
| Technical Specification | |
| LCD | |
| Model Name | AMG-12OPEU01T4 |
| Screen Size | 12.1" |
| Active Display Area(mm) | 246.0(H)x184.5(V) |
| Pixel Pitch(mm) | 0.3075(H)x0.3075(V) |
| Display Mode | Normally Black |
| Display Resolution(pixel) | 800x600 |
| Contrast Ratio | 1500:1 |
| Display Color | 16.7M |
| Brightness | 1000nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 178(H);178(V) |
| Response Time（Typ.Tr+Tf） | 25ms |
| Optional | |
| Touch Screen | Optional |
| Light Sensor | Optional |
| Tempered glass | Optional |
| I/O Interface | |
| Signal Connector | VGA/DVI/DC2.5 |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 300*250*40 |
| Environmental | |
| Operating Temperature | -30~85℃（non-condensation） |
| Storage Temperature | -30~85℃（non-condesation） |
| Relative Humidity | 5~90(% RH) |
