PCAP touch(multi-touch)
High brihtness/sunlight readable
Energy saving environmental protection,light sensor
IP65 waterproof,vandal-proof,dust-proof
Staring at low temperature,stable quality
Application:
Kiosk/AFC/Industrial automation etc

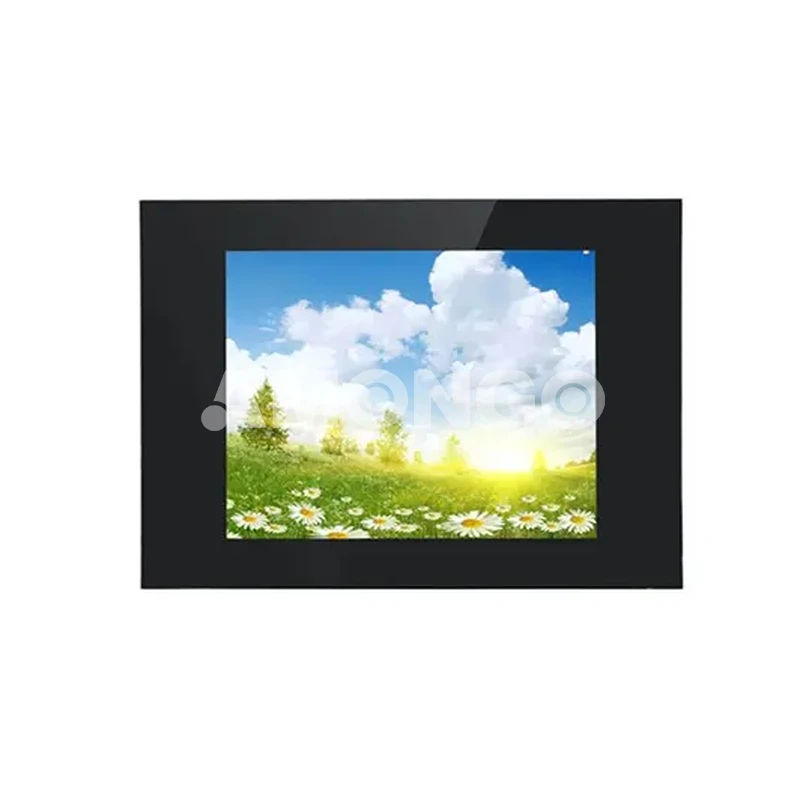

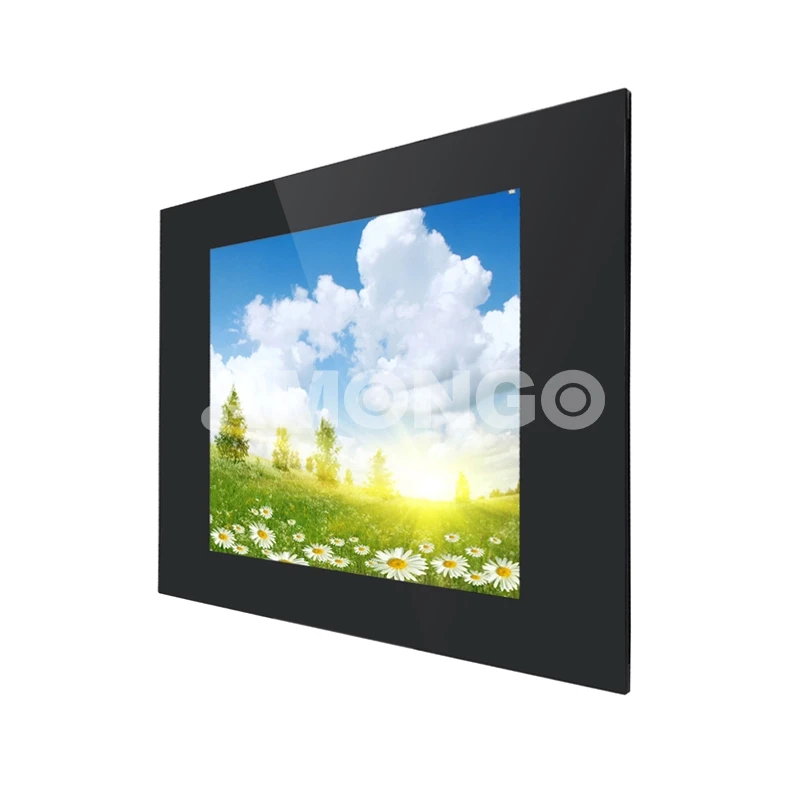

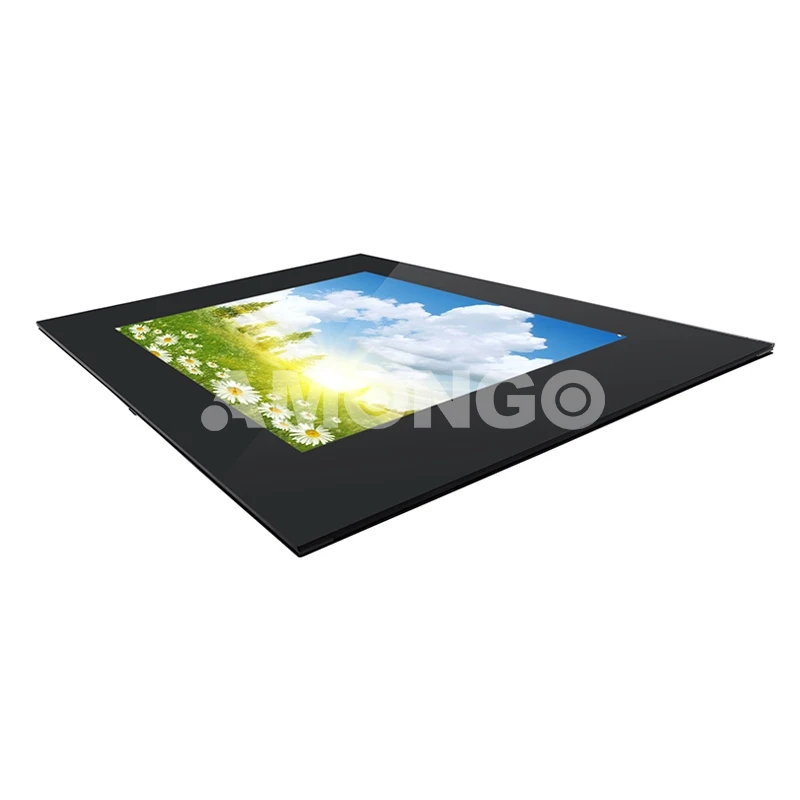

The AMG-17OPGD01T5 is a 17-inch 1200nits high-brightness open-frame industrial monitor with 1280×1024 resolution. Touch screen and light sensor are optional. Equipped with VGA/DVI interfaces, it operates under wide temperature range. The open-frame design supports embedded and VESA mounting. Sunlight readable, it is suitable for integration in industrial automation, AFC and other equipment.
Sunlight readable.
Suitable for harsh industrial environments.
Stable & reliable for prolonged continuous operation.
Resolution: 1024 × 768 (optional)
Signal Interfaces: HDMI, DP (optional)
Application:
Kiosk/AFC/Industrial automation etc
AFC equipment
Vehicle-mounted special equipment displays
Intelligent warehousing & security consoles

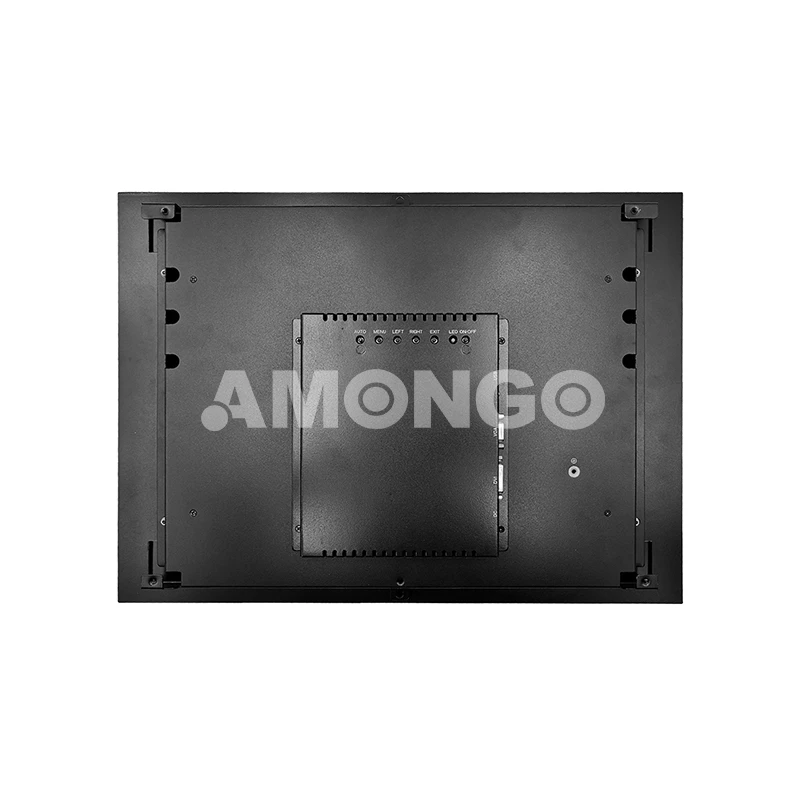

Supports embedded installation and VESA mounting
Waterproof and with excellent sealing performance
| Technical Specification | |
| LCD | |
| Model Name | AMG-17OPGD01T5 |
| Screen Size | 17" |
| Active Display Area(mm) | 337.920(H)x270.336(V) |
| Pixel Pitch(mm) | 0.12125(H)x0.36375(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 1280x1024 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M |
| Brightness | 1200nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 170(H);160(V) |
| Response Time（Typ.Tr+Tf） | 5ms |
| Optional | |
| Touch Screen | PCAP Touch（10 points） |
| Light Sensor | Supprot |
| Privacy Film | Supprot |
| I/O Interface | |
| Signal Connector | VGA/DVI-D |
| Power Consumption | DC 12V_5A |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 496*366*45.6 |
| Environmental | |
| Operating Temperature | 30~85℃（non-condensation） |
| Storage Temperature | -30~85℃（non-condesation） |
| Relative Humidity | 5~90(% RH) |
