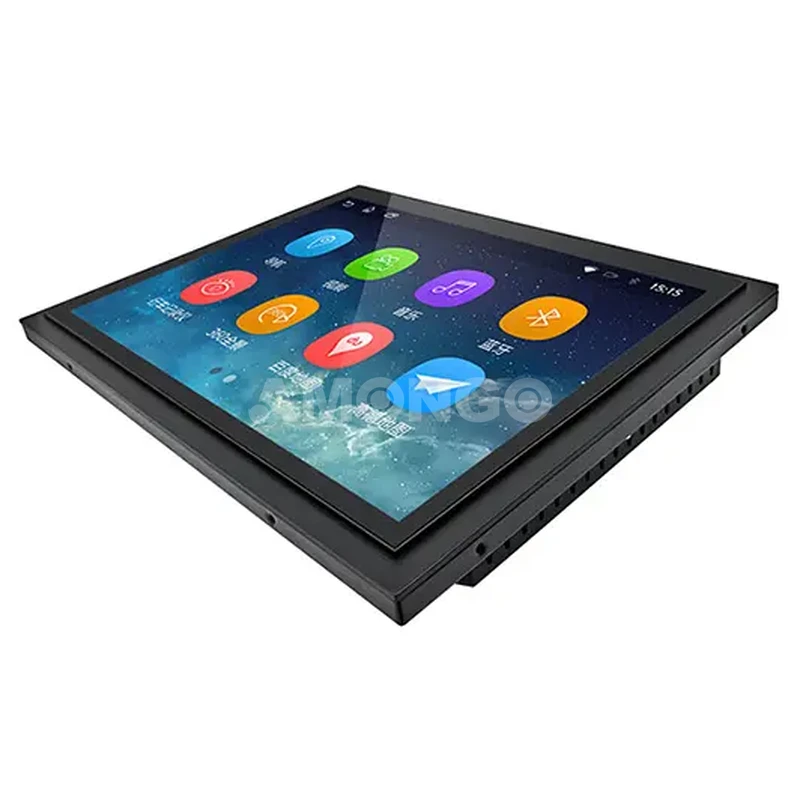

The Android System 10.4inch PCAP Multi-Touch Industrial Panel PC AMG-10PPCX1T1 by Amongo features as below:
Popular Android operation system for end users' final development;
Supporting Ethernet / Wi-Fi / Bluetooth / GPS and other functions;
Surface hardness MoHs 7, IP65 waterproof, dust-proof;scratch resistant;
Convex full fillet design with PCAP touch screen to support front IP65 waterproof, dust proof and vandal proof with tempered glass;
Passed all the stability and reliability tests to ensure long time operation;
Customization could be offered to meet projects related with AI and IoT
System | Model Name | AMG-10PPCX1T1 |
CPU | RK3288 Quad core ARM-A17 CPU 1.8GHz | |
RAM | 4GB(2GB optional) | |
EMMC | 16GB(8/24/32GB optional) | |
RS232 port | 1x RS232 port | |
RS485 port | 1x RJ485 port | |
HDMI port | 1x HDMI port | |
USB ports | 2 x USB ports | |
OS | Android 9.1 | |
Ethernet | WiFi , Ethernet,4G, Bluetooth | |
SD Card | Support | |
LCD | Screen Size | 10.4" |
Active Area(mm) | 211.2(H)x158.4(V) | |
Pixel Pitch(mm) | 0.20625(H)x0.20625(V) | |
Display Mode | Normally white | |
Display Resolution | 1024x768 | |
Brightness | 350nits | |
Contrast Ratio | 900:1 | |
Viewing Angles | 150(H);150(V) | |
Response Time | 16ms | |
Backlight | LED | |
Optional | Touch Screen | PCAP Touch(10 points) |
Tempered Glass | Optional | |
Light Sensor | Optional | |
Mechanical | Dimension(VxHxT)mm | 248.8x199.6x36.8 |
Environmental | Operating Temperature | -20~70℃(non-condensation) |
Storage Temperature | -30~80℃(non-condensation) | |
Relative Humidity | 5~90(%RH) |
