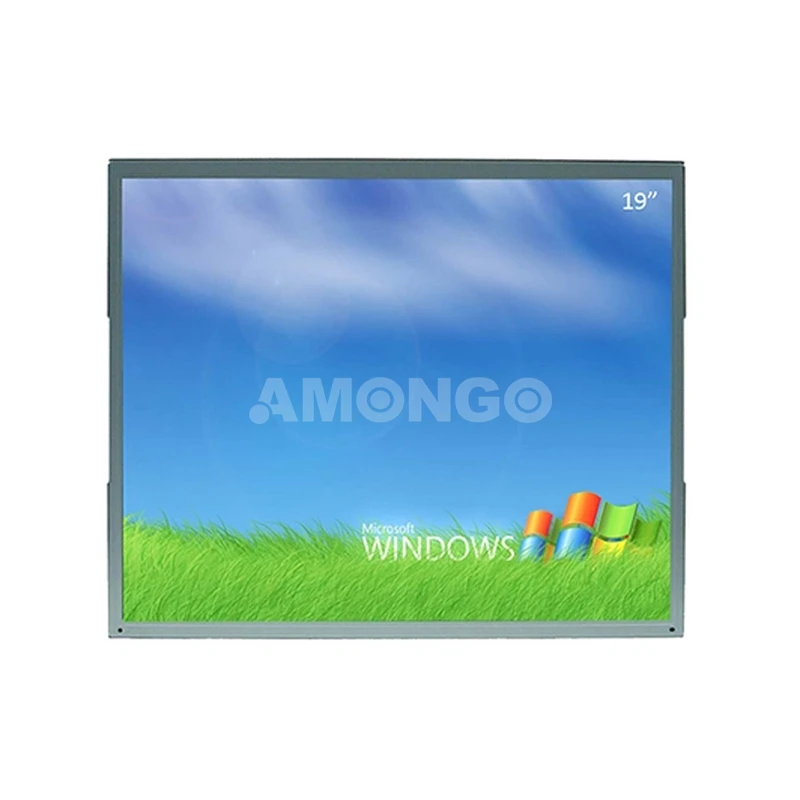

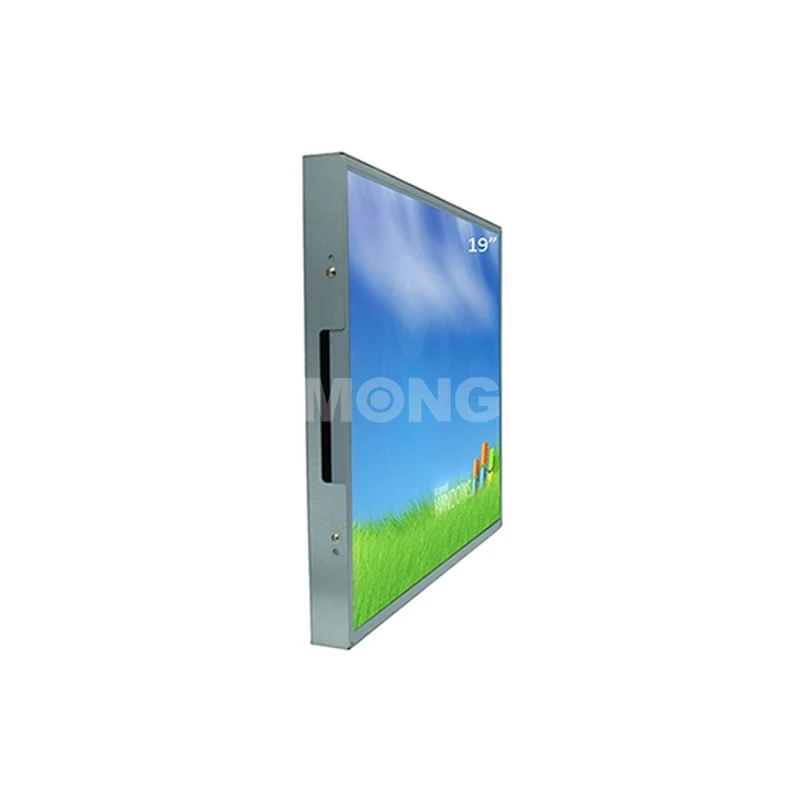

This 19-inch compact LCD module features multiple interfaces and excellent anti-interference capability.
Key features
·LED backlight design with low power consumption
·Multiple touch screen options and premium mechanical structure
·Customization services available
·Vibration resistance: 1.5G
Typical applications
·ATM
·Smart safe
·Parking toll terminal
| Specification | |
| Screen Size | 19" |
| Active Display Area(mm) | 376.32 (H) x 301.06 (V) |
| Pixel Pitch(mm) | 0.294 (H) x 0.294 (V) |
| Display Mode | Normally white |
| Display Resolution(pixel) | 1280x1024 |
| Contrast Ratio | 1000:1 |
| Display Color | 16.7M |
| Brightness | 250nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 170 (H); 160 (V) |
| Response Time(Typ.Tr+Tf) | 5ms |
| Touch Screen | Resistive |

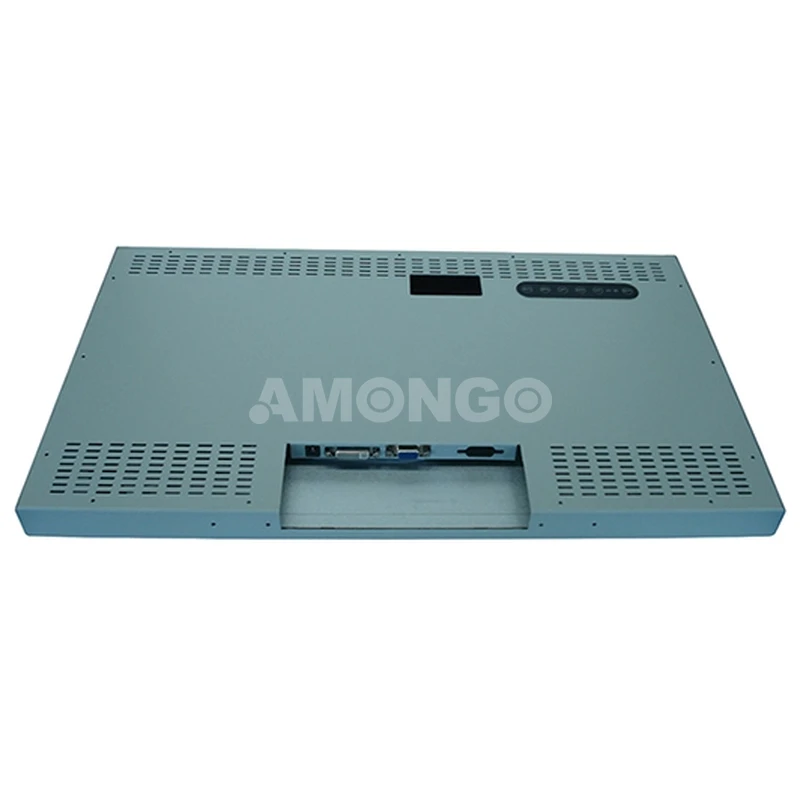

| Signal Connector | VGA/DVI |
| Power Input | DC 12V |
| Operating Temperature | 0～50℃ |
| Storage Temperature | -20～60℃ |
| Relative Humidity | 5(%RH)～90(%RH) |
