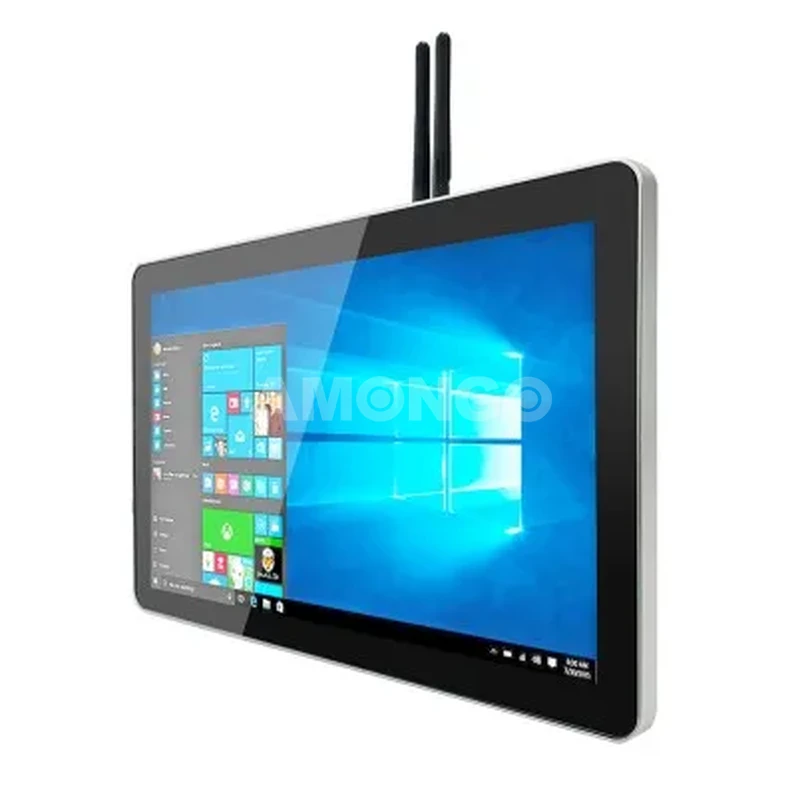

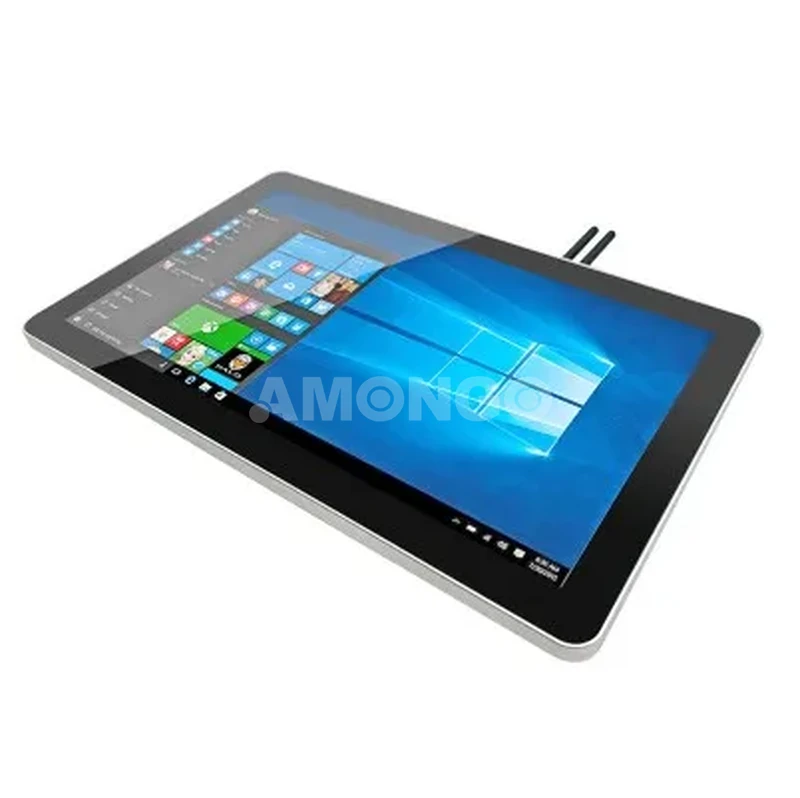

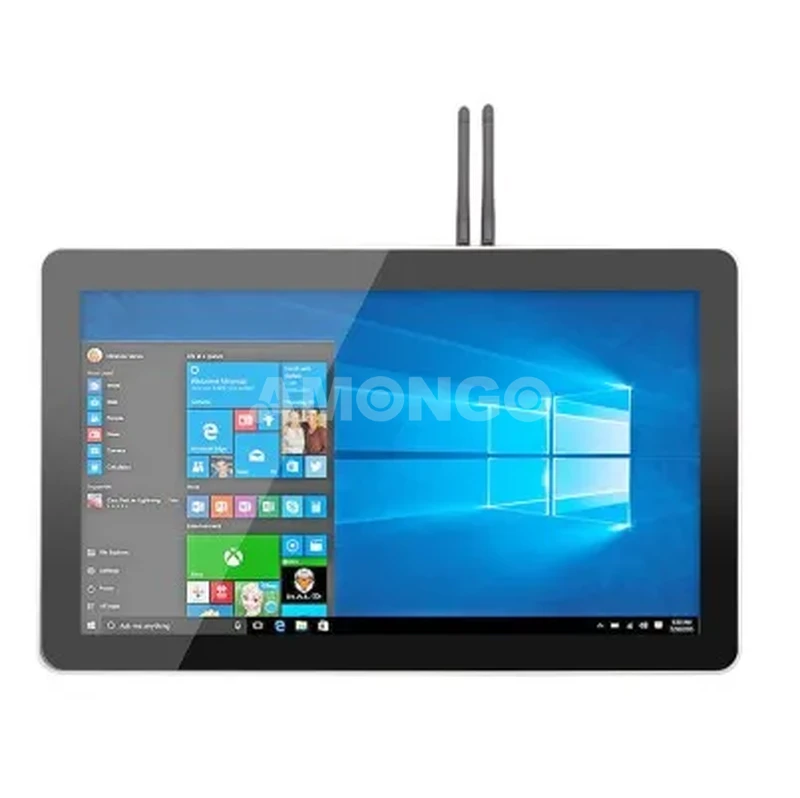

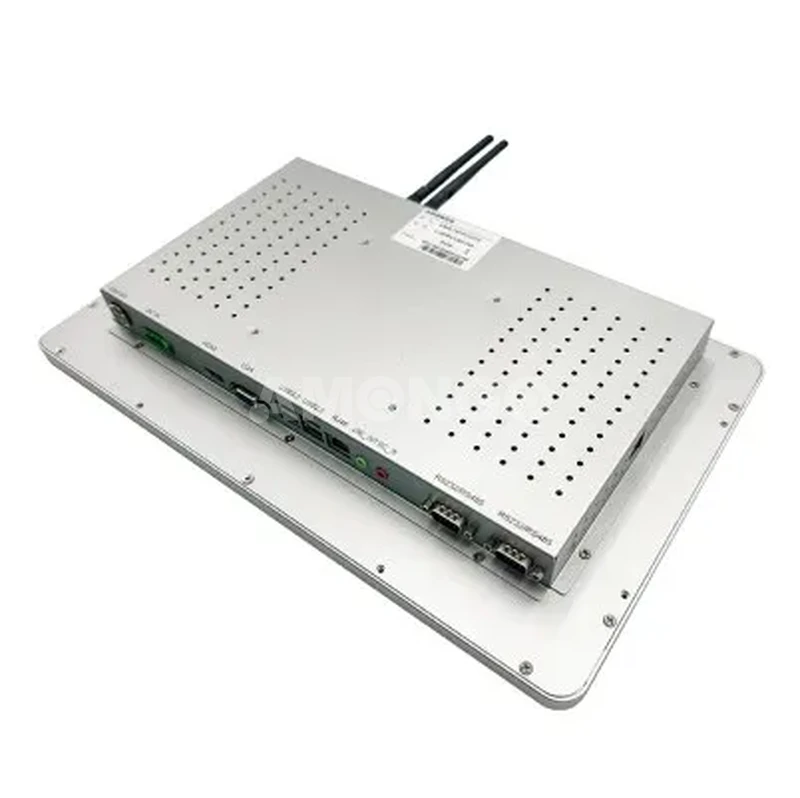

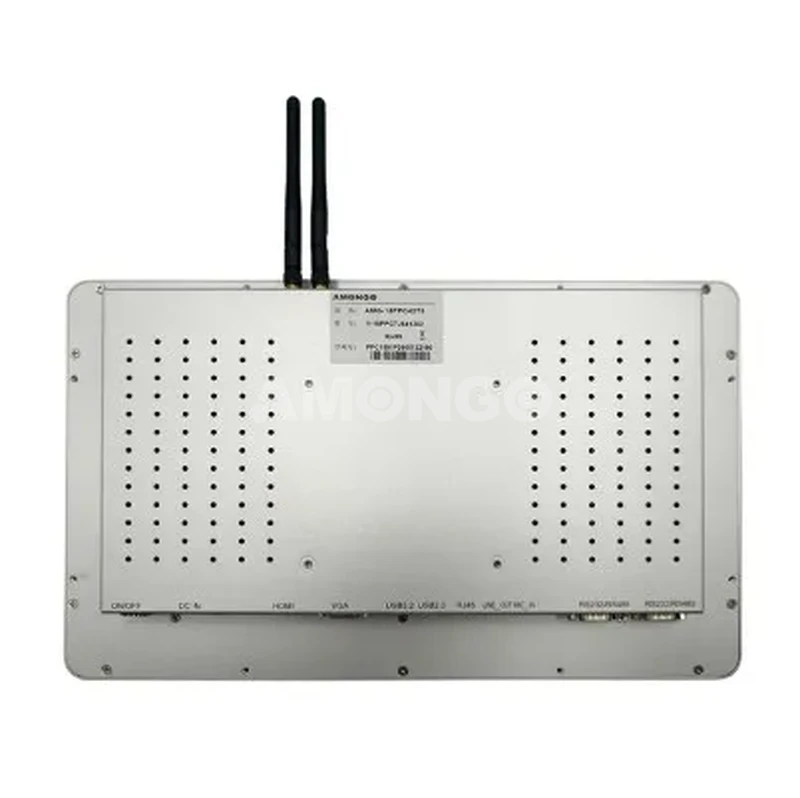

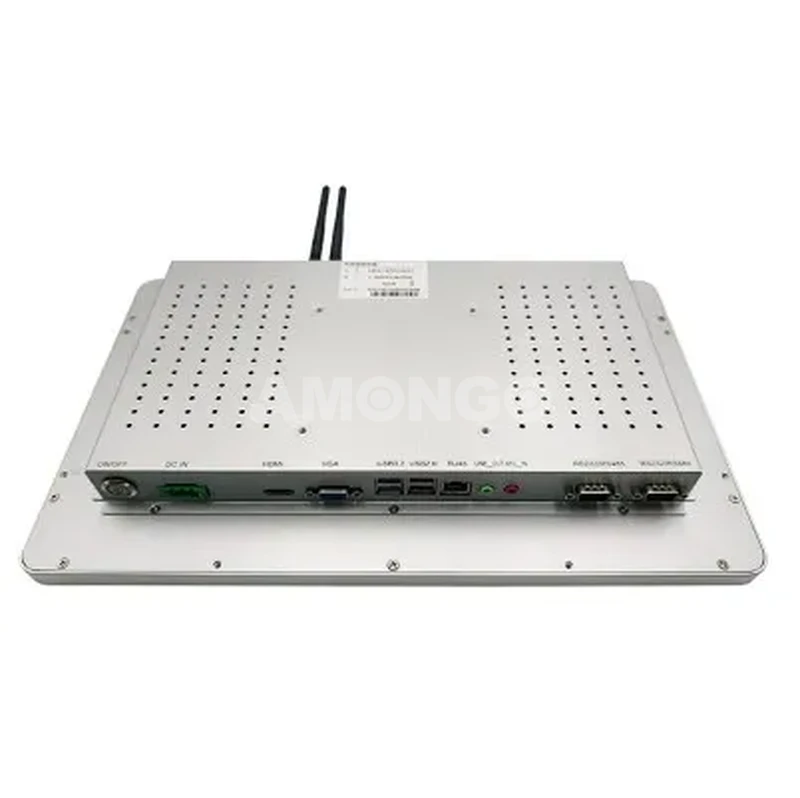

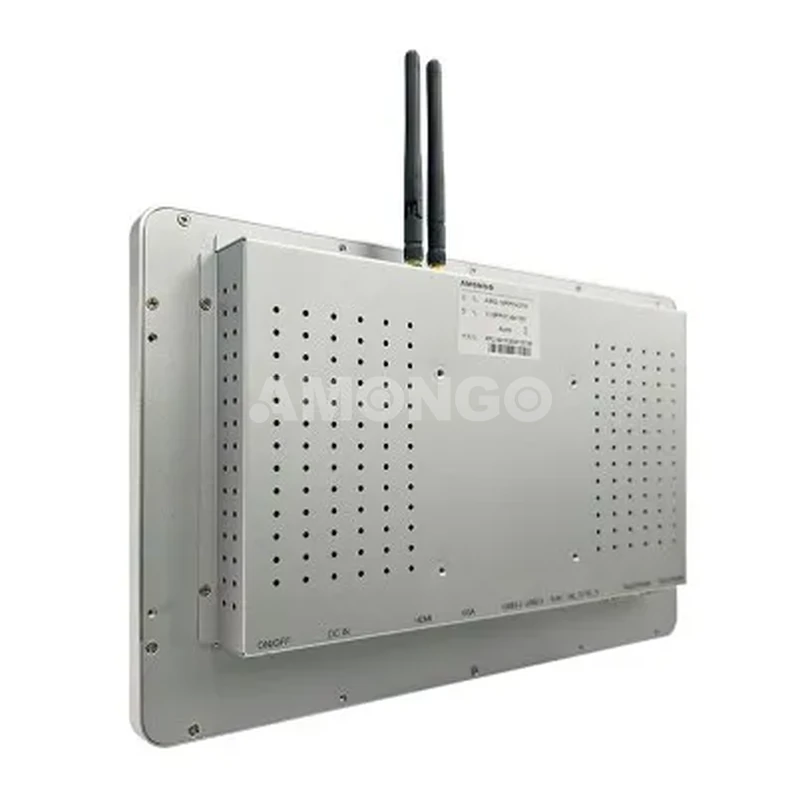

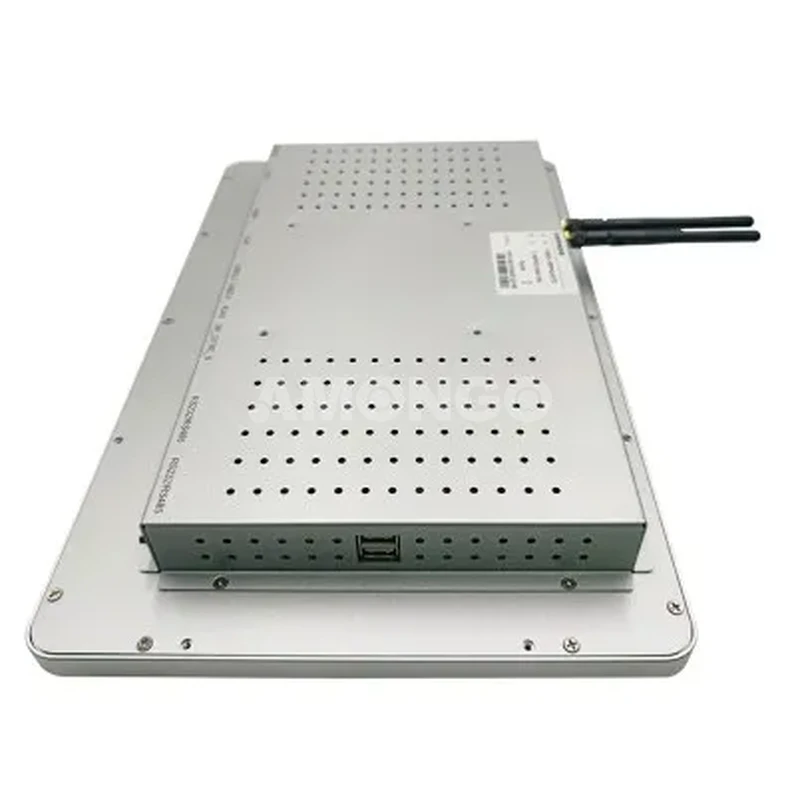

AMG-15PPC42T3 is a 15.6-inch fully bonded industrial touch panel PC equipped with Intel Celeron J6412 quad-core processor. The front panel adopts IP65 dustproof & waterproof design. It supports Windows 10/11 and Linux, with abundant COM, LAN and USB ports. Standard 10-point capacitive touch. Suitable for industrial automation, IoT and intelligent terminals, supporting stable 24/7 continuous operation.
Key features
Equipped with Intel J6412 low-power quad-core CPU, 8G+128G standard configuration with sufficient computing power
Rich expansion interfaces, compatible with various industrial peripherals
Wide temperature and humidity adaptability, supporting 7×24-hour continuous operation
Compatible with Windows / Linux multi-system, suitable for industrial automation and IoT scenarios
Surface impact resistance rating: IK08; Hardness: Mohs 7H
Brightness: 100～1000 nits (optional)
Full lamination and AG anti-glare treatment (optional)
Outer Appearance Color (optional)
Mounting & installation
Supports VESA mounting, rear panel mounting and console mounting.
Typical applications
Industrial workstation terminals and PLC control panels
IoT data acquisition and smart warehouse terminals
Smart manufacturing HMI and workshop production displays
Intelligent security, self-testing and environmental monitoring terminals
Commercial smart devices and embedded integrated control terminals
Equipped with Intel J6412 low-power quad-core CPU, 8G+128G standard configuration with sufficient computing power
Rich expansion interfaces, compatible with various industrial peripherals
Wide temperature and humidity adaptability, supporting 7×24-hour continuous operation
Compatible with Windows / Linux multi-system, suitable for industrial automation and IoT scenarios
Surface impact resistance rating: IK08; Hardness: Mohs 7H
Brightness: 100～1000 nits (optional)
Full lamination and AG anti-glare treatment (optional)
Outer Appearance Color (optional)
Supports VESA mounting, rear panel mounting and console mounting.
Industrial workstation terminals and PLC control panels
IoT data acquisition and smart warehouse terminals
Smart manufacturing HMI and workshop production displays
Intelligent security, self-testing and environmental monitoring terminals
Commercial smart devices and embedded integrated control terminals
System | ||
Model Name | AMG-15PPC42T3 | |
CPU | Intel ⑧J6412,Quad-core Cortex-2G,2.6GHz | |
DDR | 8G | |
SSD | 128G | |
USB ports | 2*USB3.0,4*USB2.0 | |
Serial port | 2*RS232/RS485 | |
OUT port | HDMI,VGA | |
OS | Windows 11,Windows 10,Linux | |
LAN | 1×10/100/1000Base-T Gigabit Ethernet | |
LCD | ||
Screen Size | 15.6" | |
Active Area(mm) | 344.16(H)×193.59(V) | |
Pixel Pitch(mm) | 0.17925(H)×0.17925(V) | |
Display Resolution | 1920x1080 | |
Brightness | 250nits | |
Contrast Ratio | 800:1 | |
Viewing Angles | 178(H);170(V) | |
Response Time(Tr+Tf) | 25ms | |
Optional | |
Touch Screen | PCAP Touch(10 points) |
WIFI | Support |
Mechanical | |
Dimension(VxHxT)mm | 390.8×241.1×43 |
Environmental | ||
Operating Temperature | 0~50℃(non-condensation) | |
Storage Temperature | -20~60℃(non-condensation) | |
Relative Humidity | 5~90(%RH) | |
Ordering Information
AMG-15PPC42T3 | Panel PC with 15.6"LCD,Intel ⑧J6412,Quad-core Cortex-2G,2.6GHz,8G DDR4,128G SSD, |
178(H)×170(V);1920x1080pixels,250nits,2*USB3.0,4*USB2.0; |
