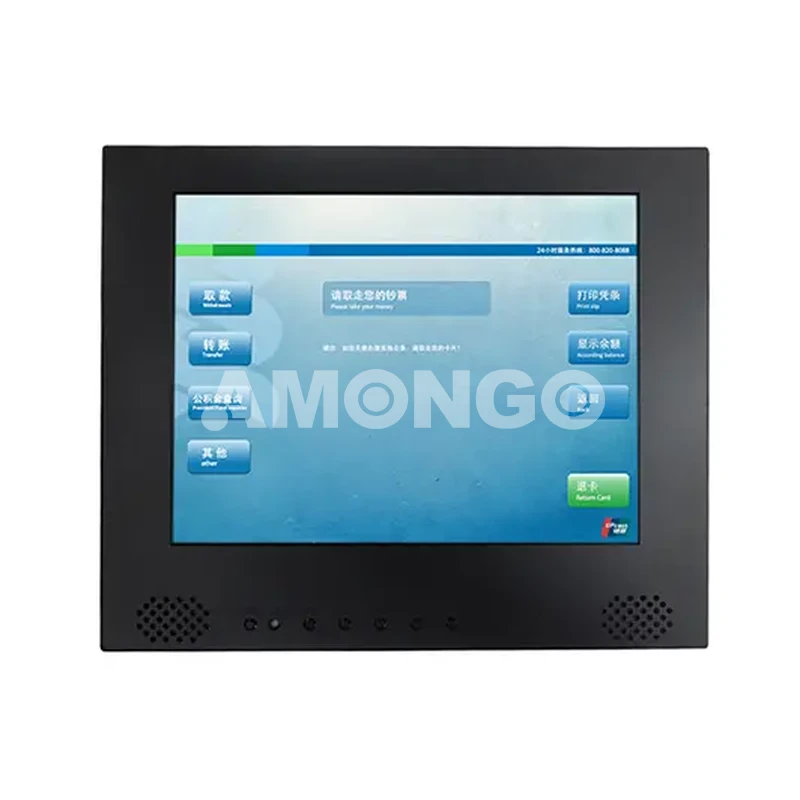

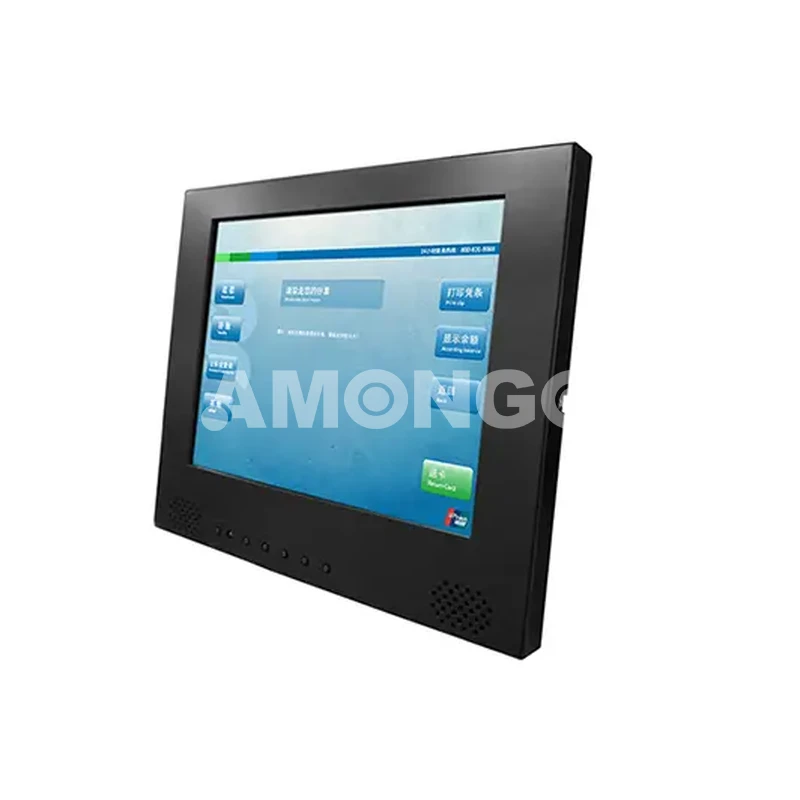

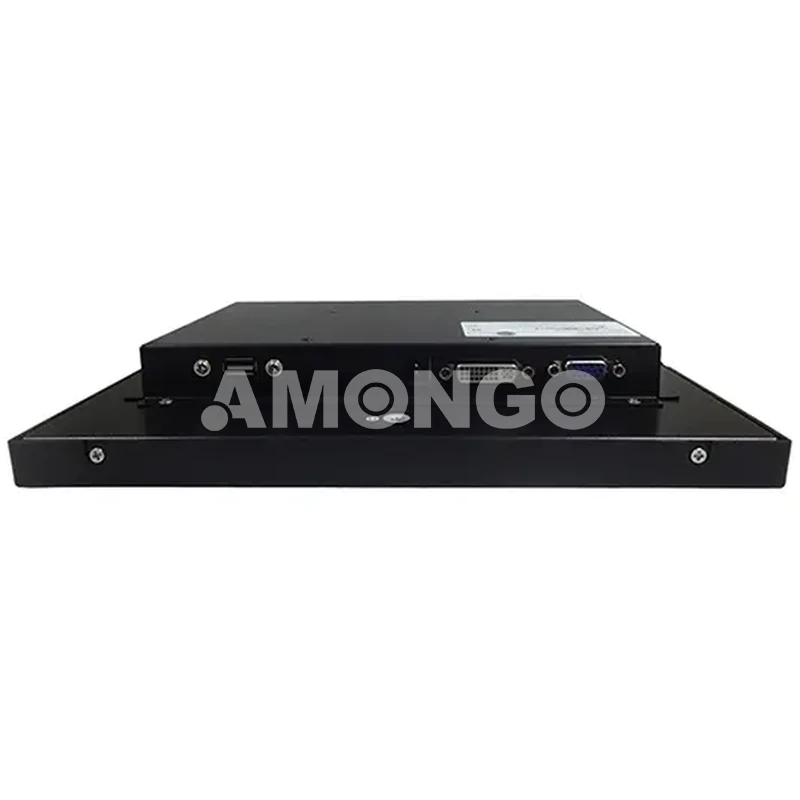

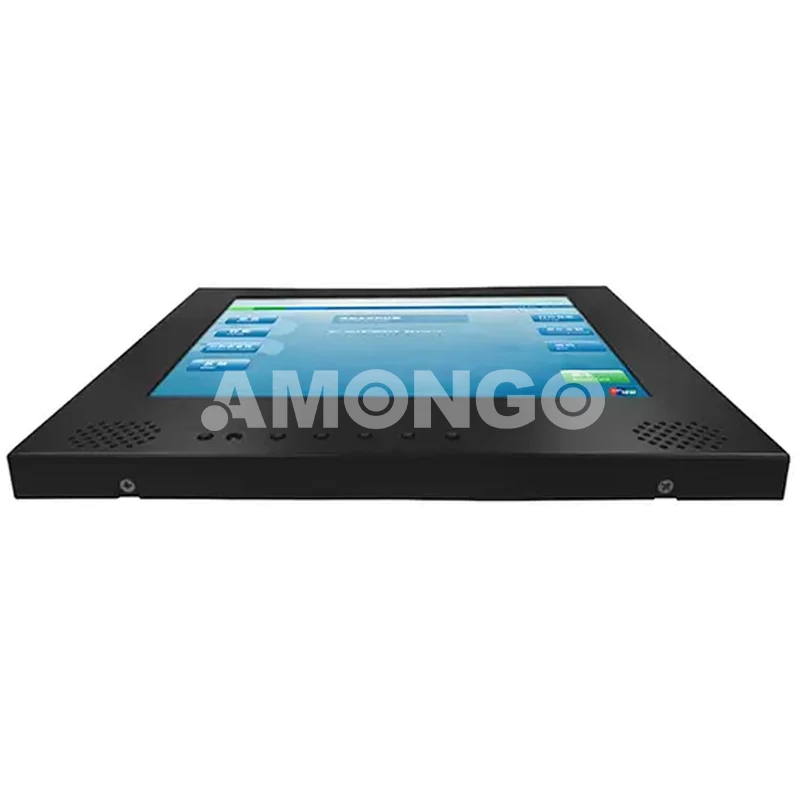

This 9.7-inch industrial PCAP Touch Monitor with Microwave Sensor for ATM & Kiosk Applications
Key features
Microwave sensor
Plastic frame shell
PCAP multi-touch Screen
7x24h work, stable performance
High reliability and long lifetime
Typical applications
ATM Rear Side etc
VTM machine
Banking self-service kiosks
Government inquiry terminals
| Specification | |
| Screen Size | 9.7" |
| Active Display Area(mm) | 196.61(H)x147.46(V) |
| Pixel Pitch(mm) | 0.192(H)x0.192(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 1024x768 |
| Contrast Ratio | 500:1 |
| Display Color | 16.7M |
| Brightness | 350nits |
| Backlight | LED |
| Viewing Angles(CR=10) | 140(H);130(V) |
| Response Time(Typ.Tr+Tf) | 20ms |
| Touch Screen | PCAP Touch(10 points) |
| Signal Connector | VGA/DVI-D |
| Power Input | DC 12V |
| Touch Controller | USB |
| Operating Temperature | -20~70℃(non-condensation) |
| Storage Temperature | -30~80℃(non-condensation) |
| Relative Humidity | 5(%RH)~90(%RH) |
