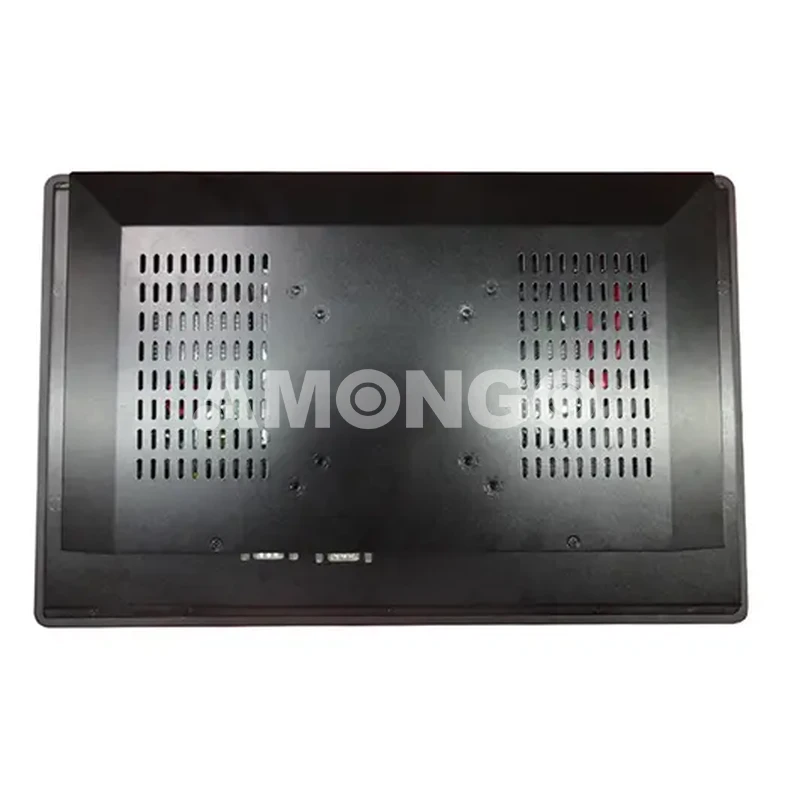

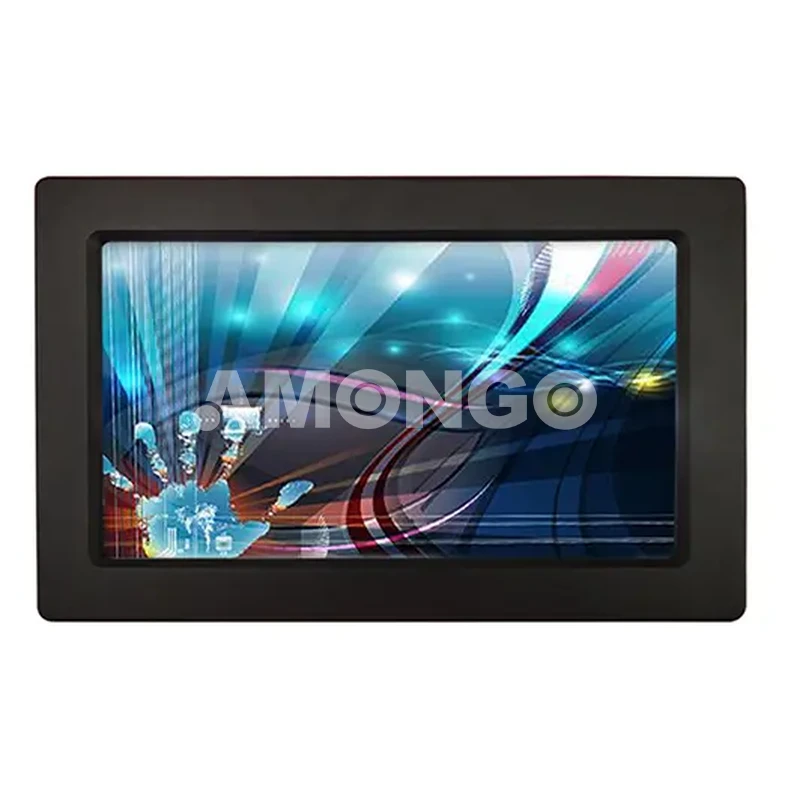

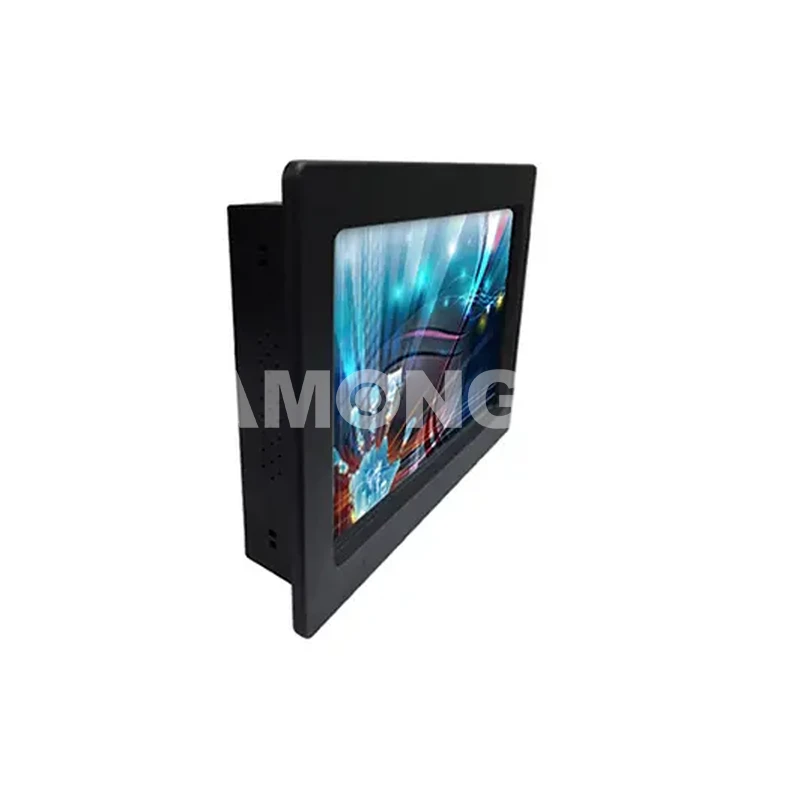

The 15 inch industrial panel computer AMG-15PPC04T1 from Amongo is designed with below benefits:
Industrial-grade LCD panels with perfect image quality and wide viewing angles, low power consumption LED backlight;
High performance processor, fast access hard drives, long-life power supplies for stable function in long time workload;
Touchscreen be optional like PCAP, Resistive, IR etc.;
Robust housing for IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
Easy installation for panel mount or embedded mount;
Passed necessary tests for being used in harsh environment
Specifications
Model Name | AMG-15PPC04T1 |
CPU | Intel® Cedar Trail-M Processor 2800(1.86GHz) |
Memory | RAM 2GB.DDR3 SO-DIMM |
HDD | 500G 5400RPM. 2.5 SATA |
CD/DVD-ROM/RW | NA |
PS/2 port | NA |
VGA port | NA |
COM ports | Default x 4COM |
USB 2.0 ports | Default x 3USB 2.0 |
Ethernet ports | 1x10/100/1000BASE-T Gigabit Ethernet |
Audio | Line-out,Mic-in |
Display Size(Diagonal) | 15.6" |
Active Display Area(mm) | 344.232(H)x193.536(V) |
Max Resolution | 1366x768 |
Support Color | 16.7M |
Luminance(CD/M ) | 300 |
Contrast Ratio | 500:1 |
Pixel Pitch(mm) | 0.252(H)x0.252(V) |
Viewing Angle | 170(H);160(V) |
Response Time(Typ.Tr+Tf) | 8ms |
Backlight | LED |
Type | Resistive Touchscreen |
Use connector | 4pin USB2.0 |
Output Rating | 35W(max) |
Input Voltage | +12V @5A; |
Dimension(VxHxT) | 422.4x271.7x60 |
Operating Temperature | 0～60℃ |
Storage Temperature | -20～80℃ |
Relative Humidity | 5[%RH]～90[%RH] |
