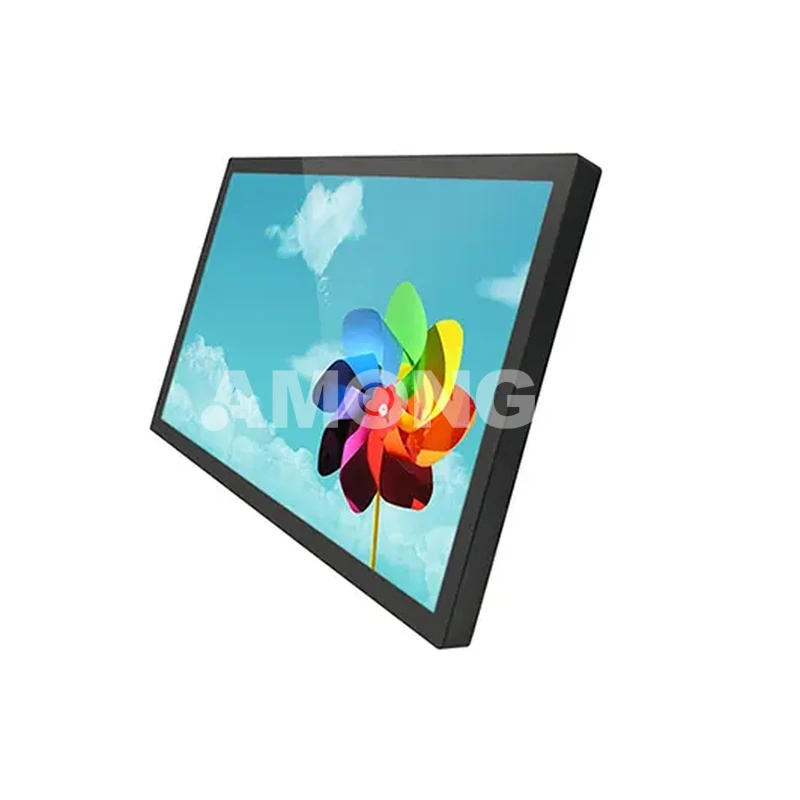

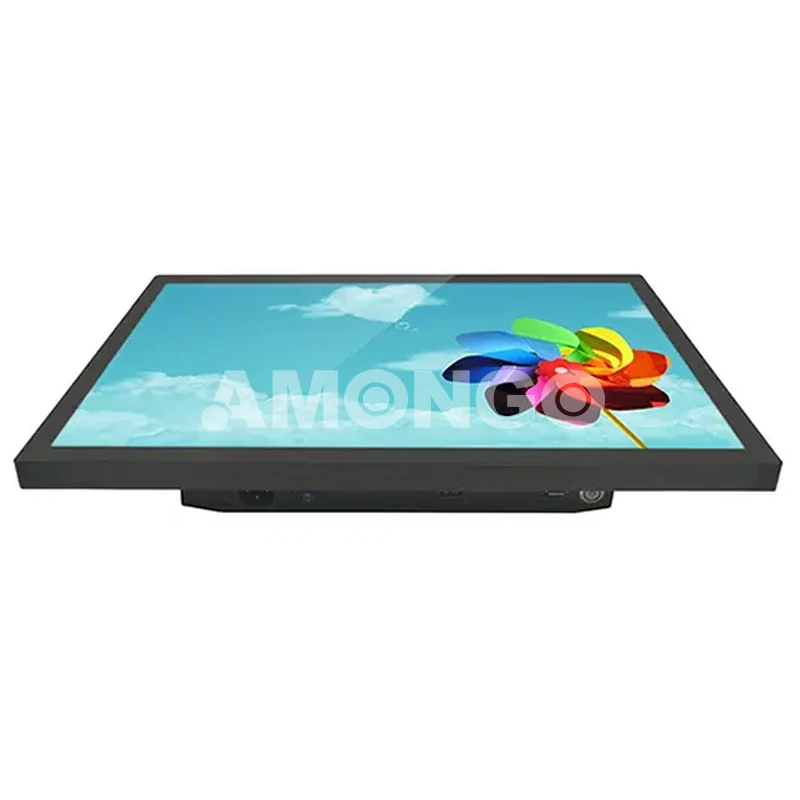

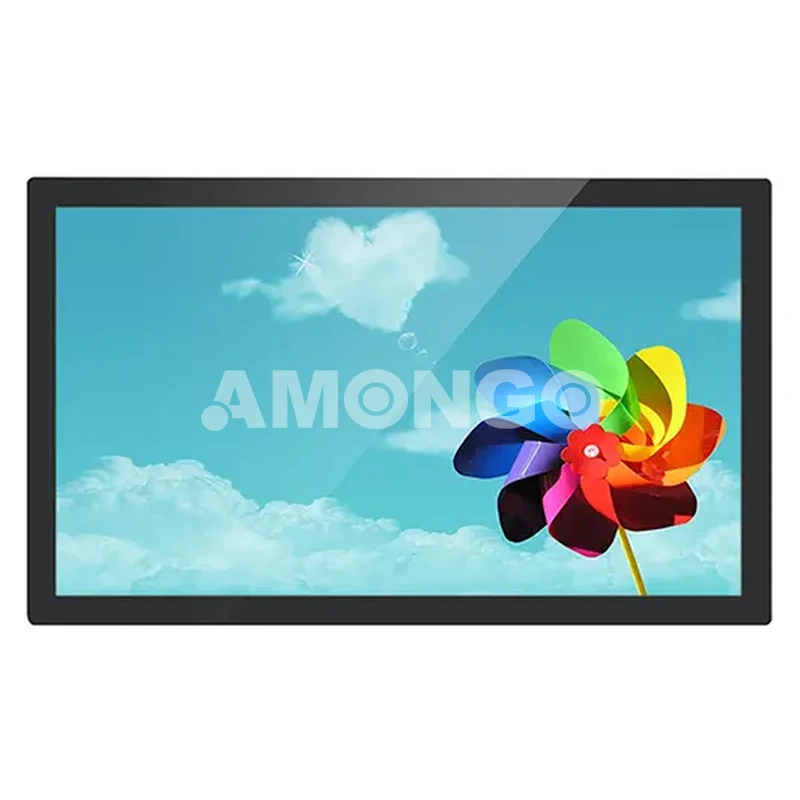

The 21.5 inch industrial panel pc AMG-21PPC02T3 offed by Amongo is delivered to customers worldwide for different application with advantages as below:
High-end branded TFT LCD panels with LED backlight, lower power consumption, better image effect and wider view angles;
Fan-less cooling system with reliable Intel processor, customized option available;
Bezel-less pcap touchscreen, rapid touch response, better user experience;
Edge-to-edge design true flat surface design, bezel free, sleek and modern look ;
IP65 front protection, dust proof ;
Option of tempered glass for vandal proof function;
Robust casing and structure design to withstand the most harsh conditions, anti-vibration, anti-shock;

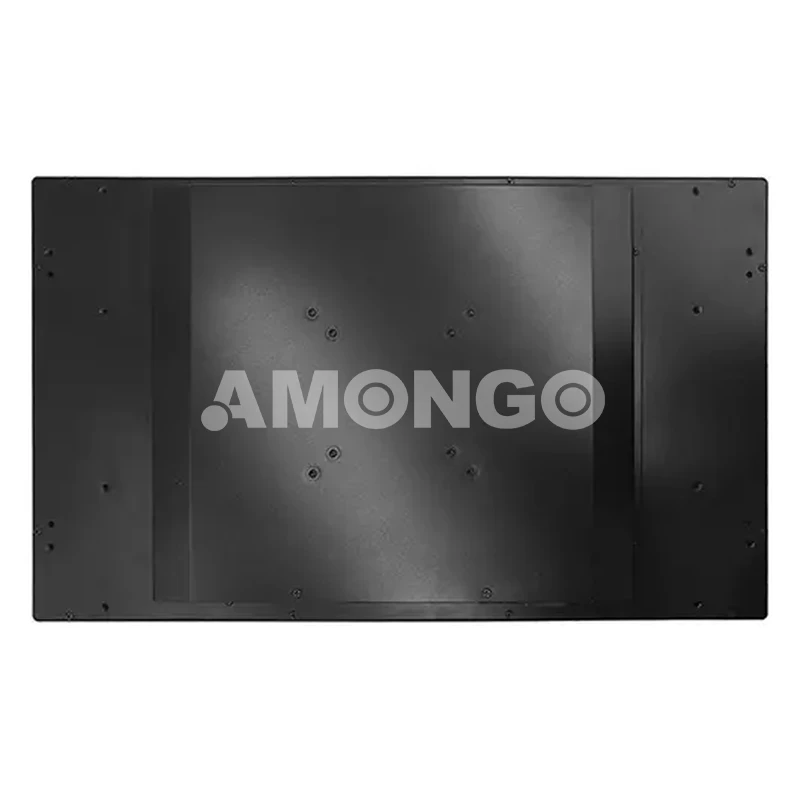

Different mounting options: VESA mount, embedded mount etc.
Supporting various operation system of Windows, Android, Linux etc.;
Meet with reliability test for demanding industrial applications;
Passed necessary certificates like CE, RoHS, and ISO system etc.
Model Name | AMG-21PPC02T3 |
CPU | Intel ® Haswell i5-4310U dual core 2.0GHz |
RAM | DDR3L 13334 GB |
SSD | 32GB(16/64GB optional) |
VGA port | 1 x VGA port |
HDMI port | 1 x HDMI port |
USB ports | 2xUSB 2.0 ; 2 x USB 3.0 |
LAN | 1x10/100/1000Base-T Gigabit Ethernet |
Audio | Mic-in, Line-out |
Screen Size | 21.5" |
Active Area(mm) | 476.064(H)x267.786(V) |
Pixel Pitch(mm) | 0.24795(H)x0.24795(V) |
Display Resolution | 1920x1080 |
Display Color | 16.7M |
Brightness(cd/㎡) | 250nits |
Contrast Ratio | 3000:1 |
Viewing Angles | 178(H);178(V) |
Backlight | LED |
Response Time(Tr+Tf) | 18ms |
Touch Screen | PCAP Touch(10 points) |
Tempered glass | Optional |
Dimension(VxHxT)mm | 511.9x303.4x61.2 |
Operating Temperature | -30~85℃(non-condensation) |
Storage Temperature | -30~85℃(non-condensation) |
Relative Humidity | 5~90(%RH) |
