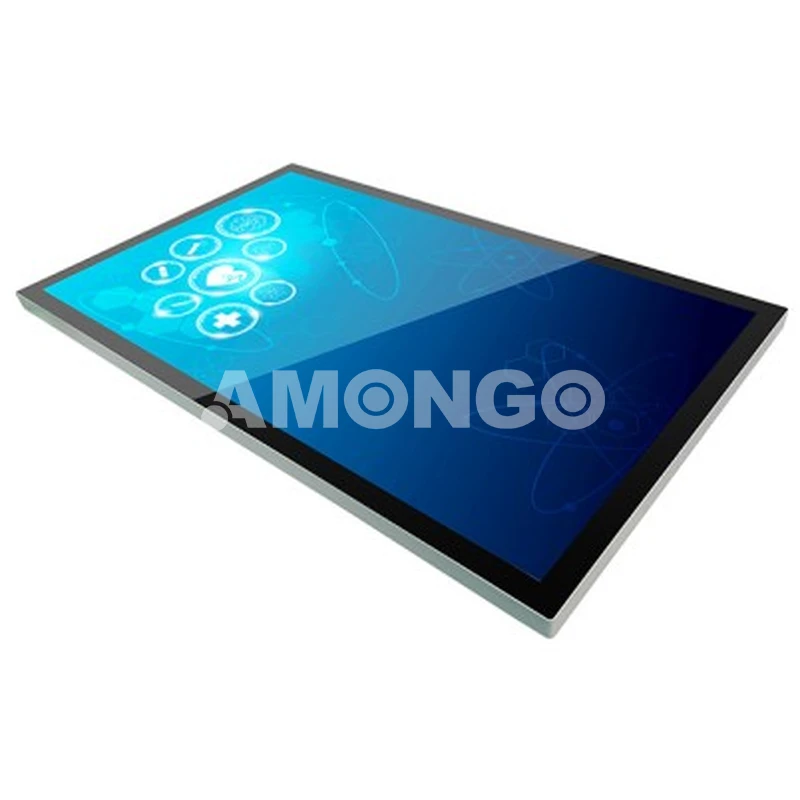

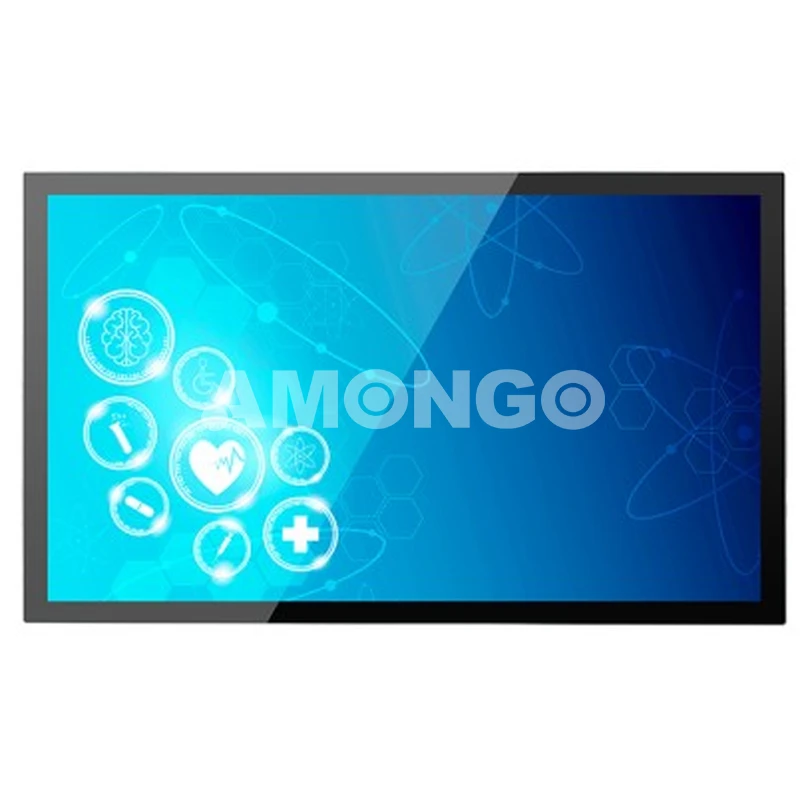

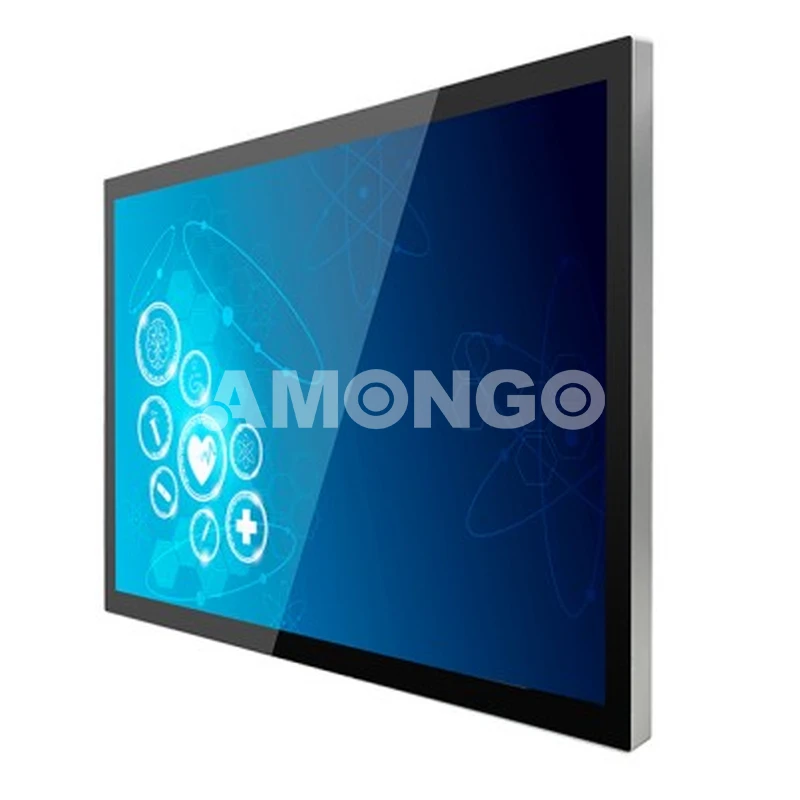

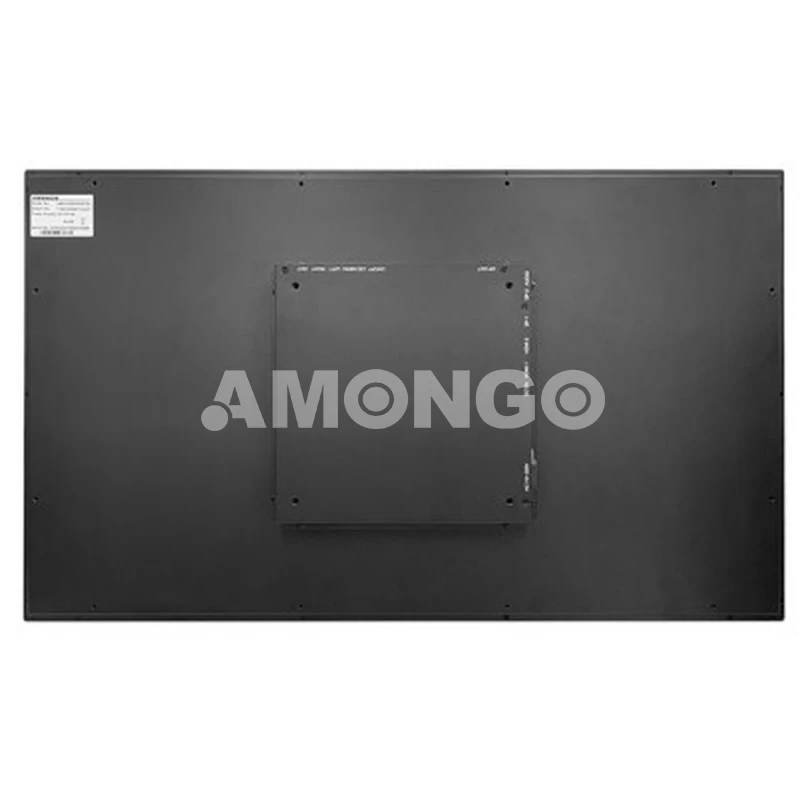

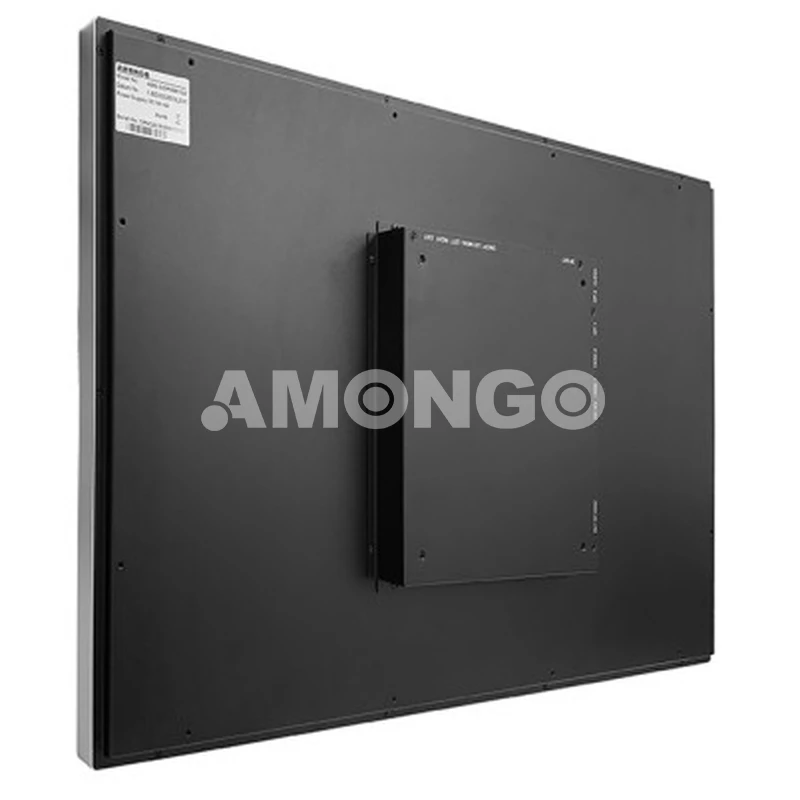

AMG-32OPGER1G2 Medical Display

The AMG-32OPGER1G2 is a 32-inch 4K UHD industrial display panel for medical endoscopic imaging and self-service terminals. With front IP65 rating and 3mm tempered glass, multiple HD video interfaces and DP loop-out, VESA mounting support and high-brightness clear picture, it satisfies professional medical image display demands.

Key features

• 3840×2160 UHD screen delivers outstanding image detail reproduction, suitable for endoscopic imaging display.

• Adopts full-flat design and comes with 3mm tempered glass as standard.

• IP65 dustproof & waterproof front bezel, scratch and vandal resistant, easy for equipment cleaning and disinfection.

• Dual HDMI and dual DP interfaces plus DP loop-out function, supporting multi-screen cascade expansion.

• Surface impact resistance rating: IK08; Hardness: Mohs 7H

Mounting & installation

• Flush Mounting: Embedded with panel flush to cabinet, widely adopted for self-service terminals.

• Wall Mounting: Fixed on walls via wall brackets for interactive information display.

• Stand Mounting: Equipped with floor stand to function as independent inquiry kiosk.

Typical applications

• Endoscopic imaging display equipment

• Operating room monitoring displays

• Hospital self-service kiosks

• Medical report inquiry kiosks

• Waiting area information displays
