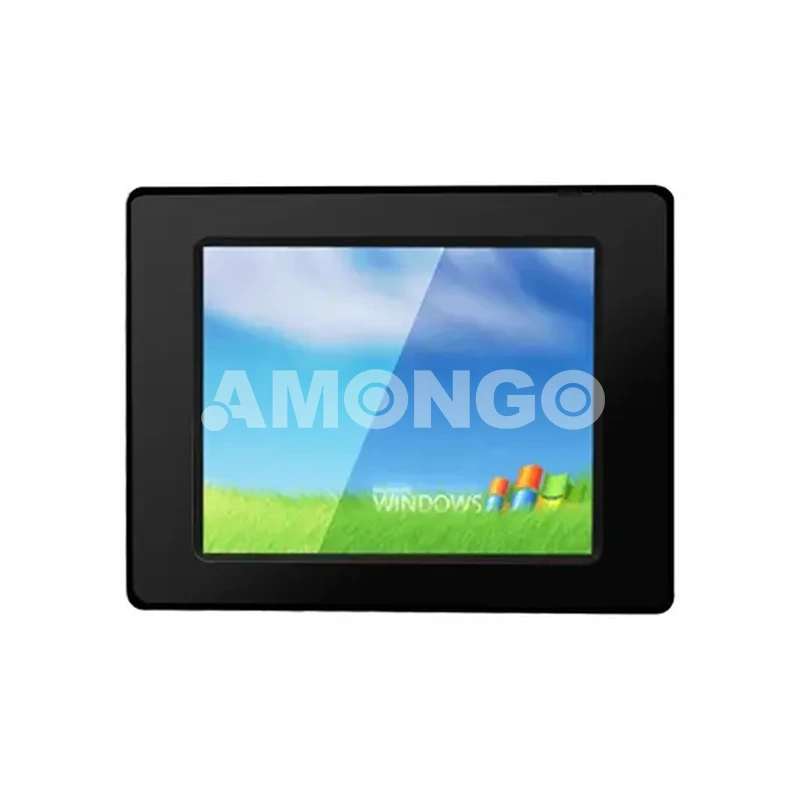

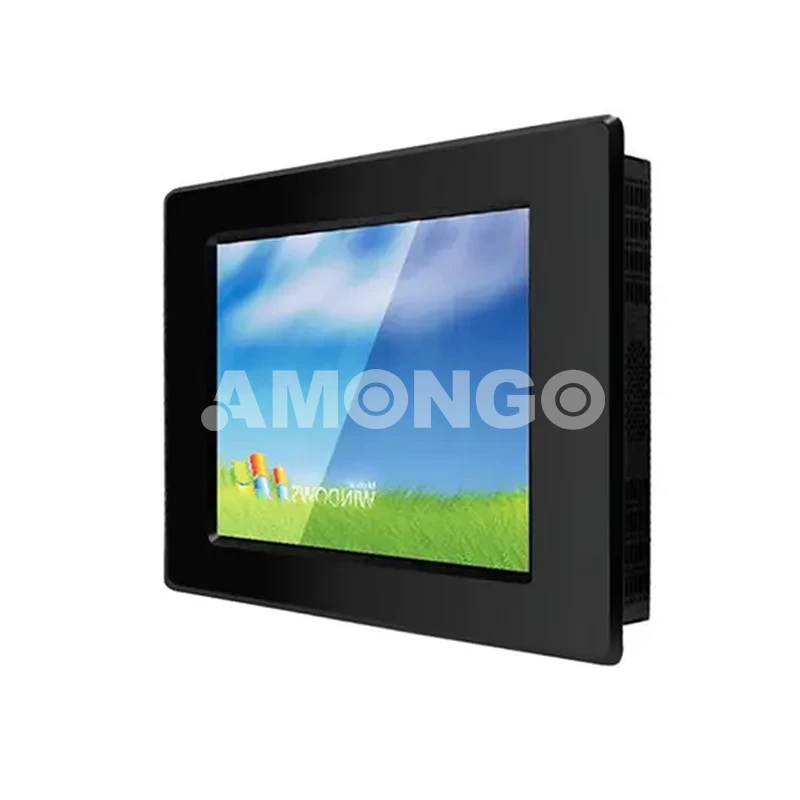

AMG-12IPPC01T1 is an industrial display module suitable for complex temperature environments. Its operating temperature range is from -30℃ to 80℃. Combined with resistive touch screens, it is widely used in industrial control all-in-one machines, equipment operation interfaces, and display devices in high-altitude areas.
Key features
Wide temperature range: -30℃ to 80℃
Can be touched without a conductive medium
Protection level: IP65
Easy for maintenance and disassembly
Mounting & installation
Supports standard VESA hole installation, bracket installation, front frame insertion and embedded installation, etc. for installation methods.
Typical applications
Production line inspection operation console
Power plant high-temperature machine room monitoring screen
Machine tool numerical control operation screen
Heat treatment auxiliary monitoring screen
| Technical Specification | |
| LCD | |
| Model Name | AMG-12IPPC01T1 |
| Screen Size | 12.1" |
| Active Display Area(mm) | 246.0(H)x84.5(V) |
| Pixel Pitch(mm) | 0.3075(H)x0.3075(V) |
| Display Mode | Normally White |
| Display Resolution(pixel) | 800x600 |
| Contrast Ratio | 600:1 |
| Display Color | 16.7M |
| Brightness | 400nits |
| Backlight | LED |
| Viewing Angles（CR=10） | 140(H);110(V) |
| Response Time（Typ.Tr+Tf） | 35ms |
| Optional | |
| Touch Screen | Optional |
| Light Sensor | Optional |
| Tempered glass | Optional |
| I/O Interface | |
| Signal Connector | VGA/HDMI |
| Touch Controller | USB |
| Mechanical | |
| Dimension(VxHxT)mm | 351*265*56 |
| Environmental | |
| Operating Temperature | -30~80℃（non-condensation） |
| Storage Temperature | -30~80℃（non-condesation） |
| Relative Humidity | 5~90(% RH) |
