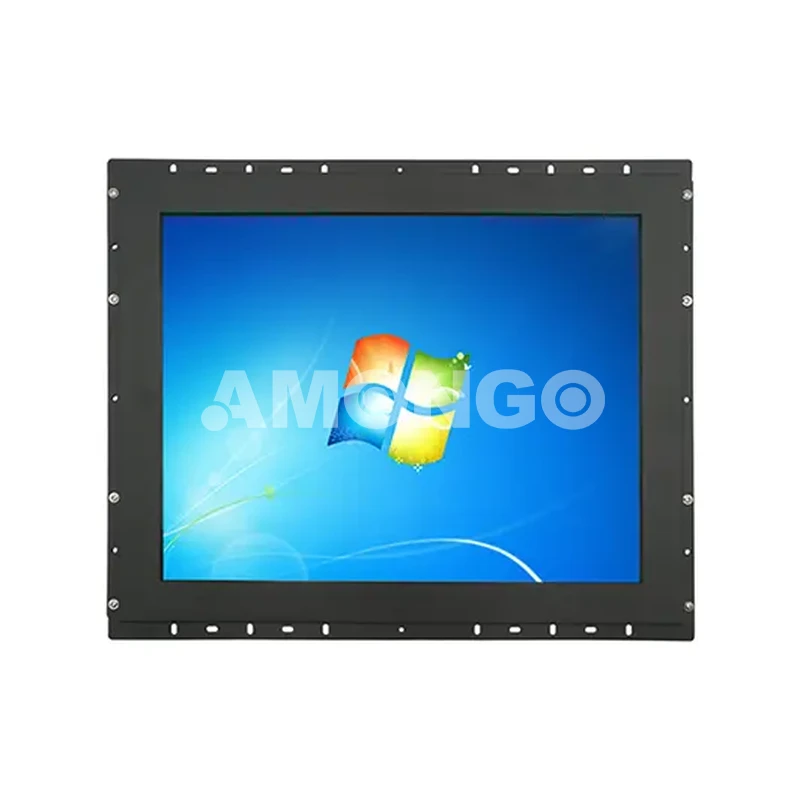

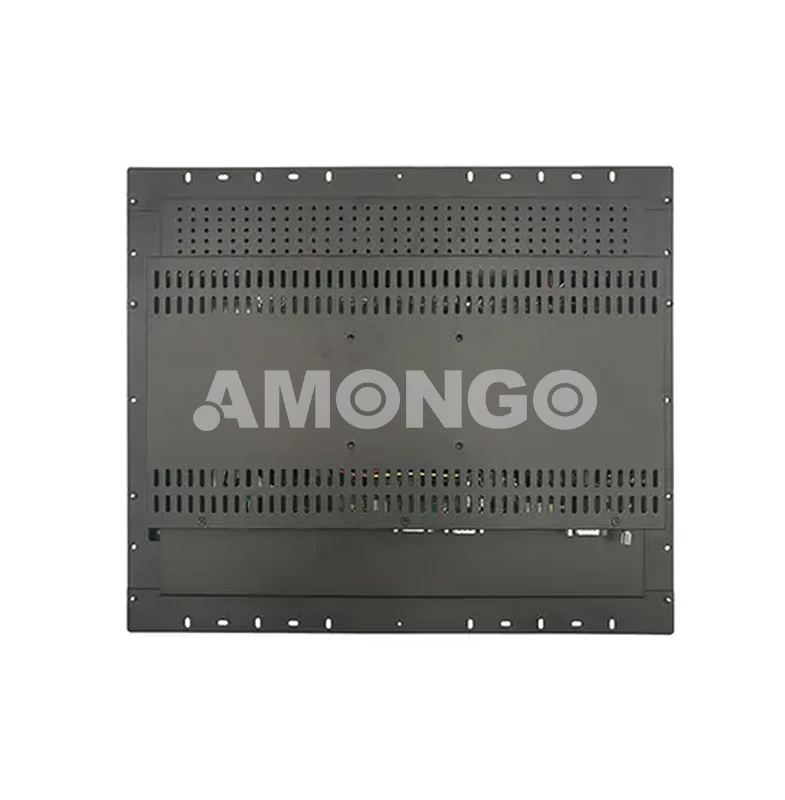

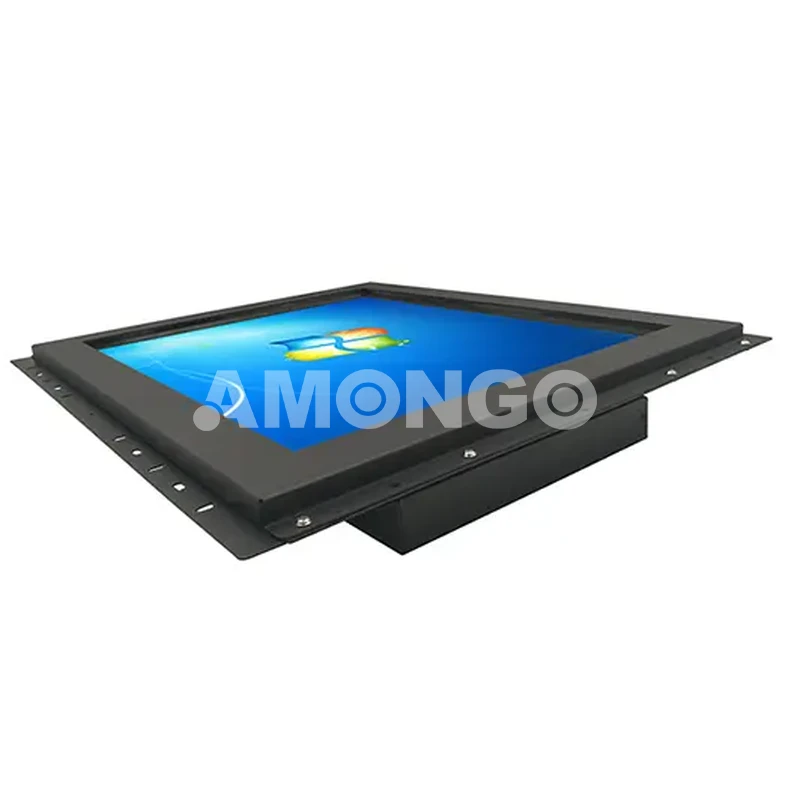

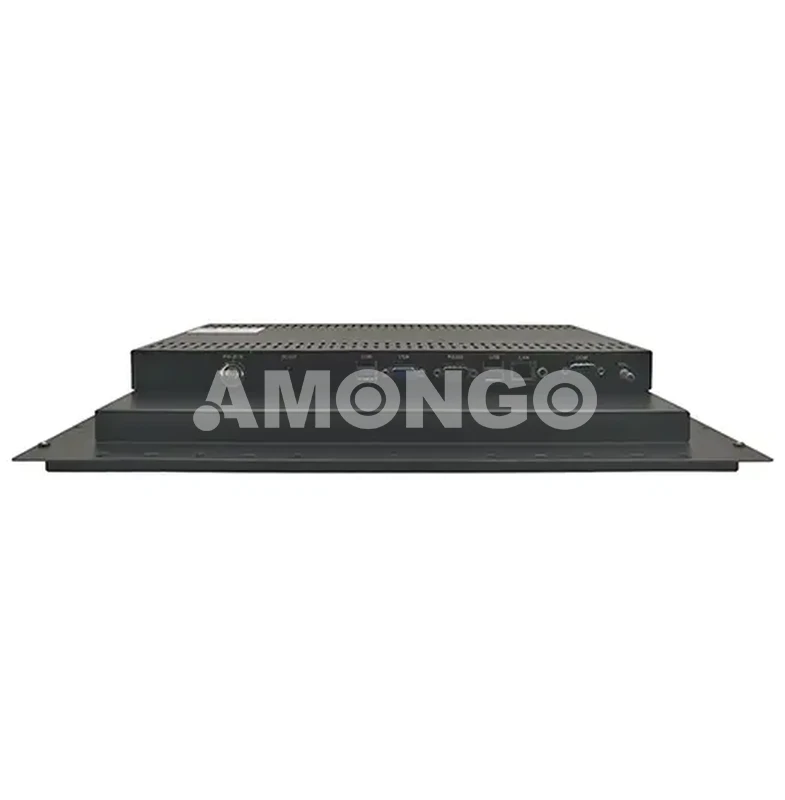

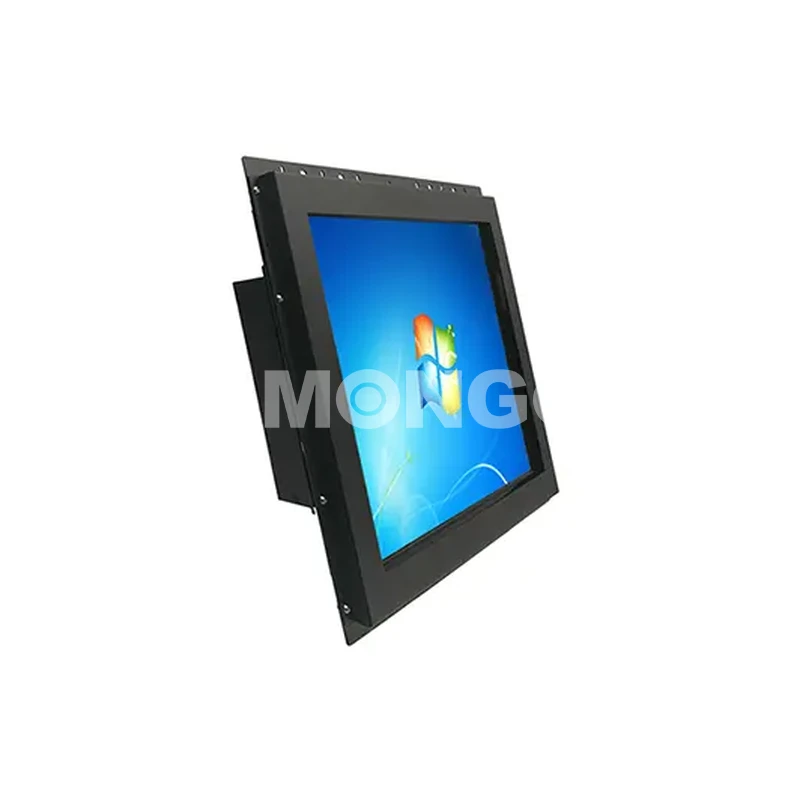

The industrial grade wall mount panel computer AMG-17PPC02T3 made by Amongo comes with the following advantages:
Branded industrial grade LCD panels with perfect image quality and wide viewing angles;
Powered by reliable Intel processor and other industrial-grade components adopted for a reliable 24/7 continuously operation;
Durable mechanical design to meet tough environmental conditions and requirements;
IP rating compliance to withstand water, dust, and dirt intrusion; anti-shock, anti-vibration;
Stable quality, high reliability and long lifetime even in harsh conditions
Tailor-made solution according to client requirements
Model Name | AMG-17PPC02T3 |
CPU | Intel ® Bay Trail J1900 Quad Core 2.0GHz |
RAM | DDR3L 1333/1600MHz 2GB |
SSD | 16GB(32/64GB optional) |
VGA port | 1 x VGA port |
RS232 port | 1 x RS232 |
COM port | 1 x COM port |
USB ports | 3xUSB 2.0 ; 1 x USB 3.0 |
LAN | 1x10/100/1000Base-T Gigabit Ethernet |
Screen Size | 17" |
Active Area(mm) | 337.920(H)x270.336(V) |
Pixel Pitch(mm) | 0.264(H)x0.264(V) |
Display Resolution | 1280x1024 |
Display Color | 16.7M |
Brightness(cd/㎡) | 350nits |
Contrast Ratio | 1000:1 |
Viewing Angles | 170(H);170(V) |
Response Time(Tr+Tf) | 5ms |
Touch Screen | IR Touchscreen |
Tempered glass | Optional |
Dimension(VxHxT)mm | 425x364x60 |
Operating Temperature | -30~85℃(not clotted) |
Storage Temperature | -30~85℃(not clotted) |
Relative Humidity | 5~90(%RH) |
